AVD/ALD 1/16 Bricks

Active

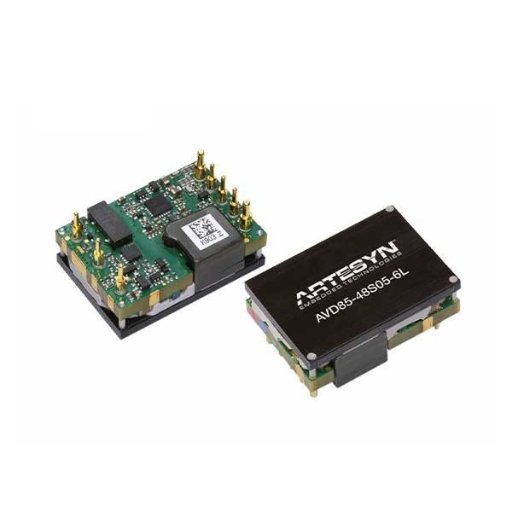

Advanced Energy’s family of sixteenth-brick isolated DC-DC converters for telecommunications applications covers power ratings from 35 to 85 W and includes models that are capable of delivering up to 25 A output current. All the converters have a standard 1.3 x 0.9 inch (33 x 23 mm) footprint, feature a wide 2:1 input voltage range of 36 to 75 VDC that is compatible with standard 48 VDC telecommunications equipment supplies, and offer a choice of surface-mount or through-hole terminations.
