artesyn™

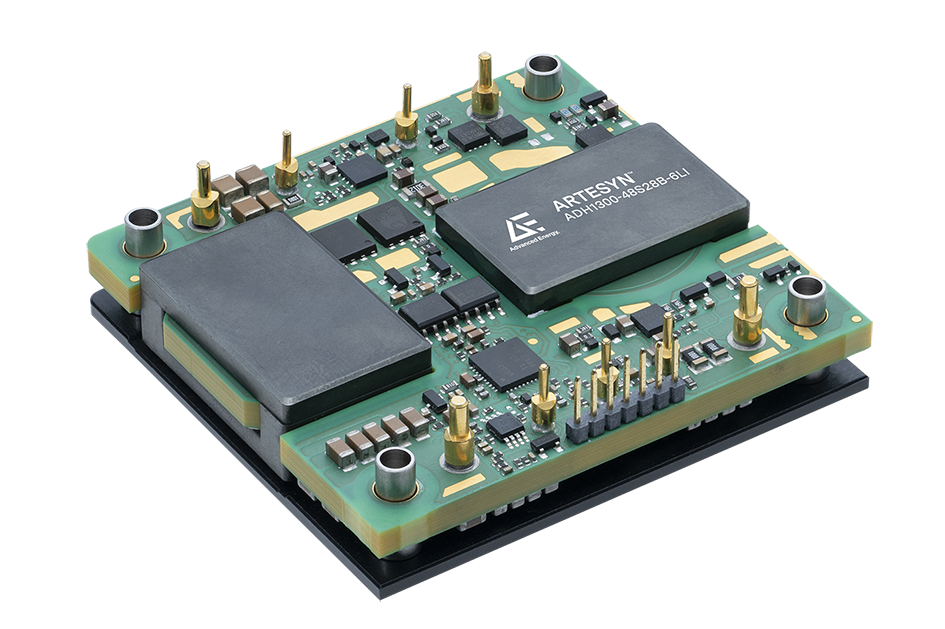

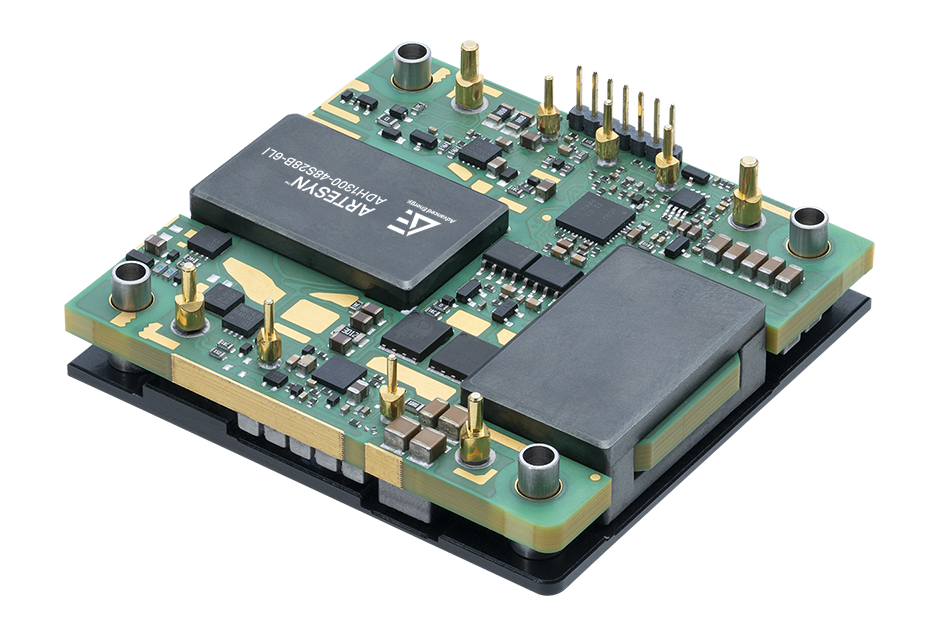

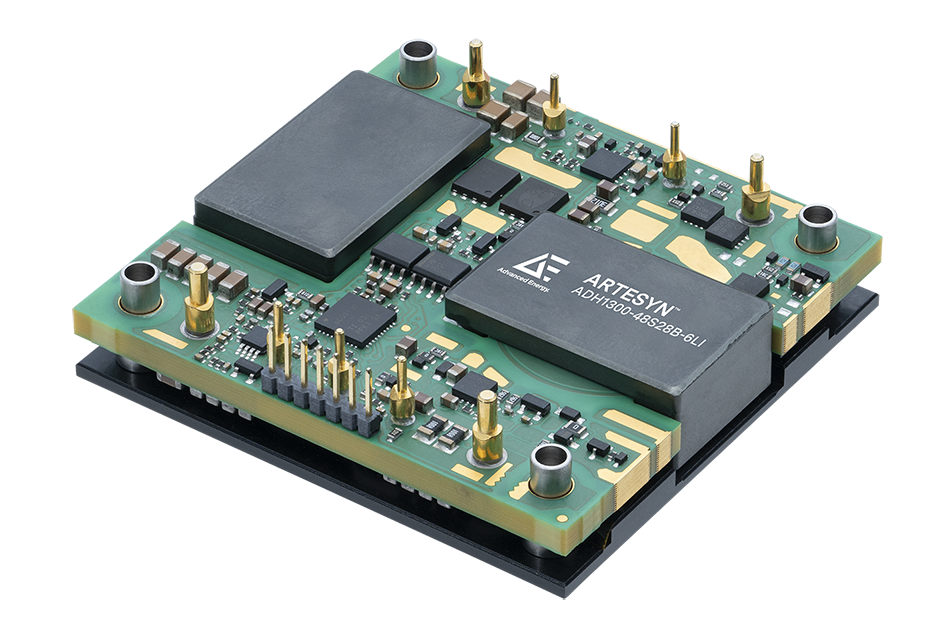

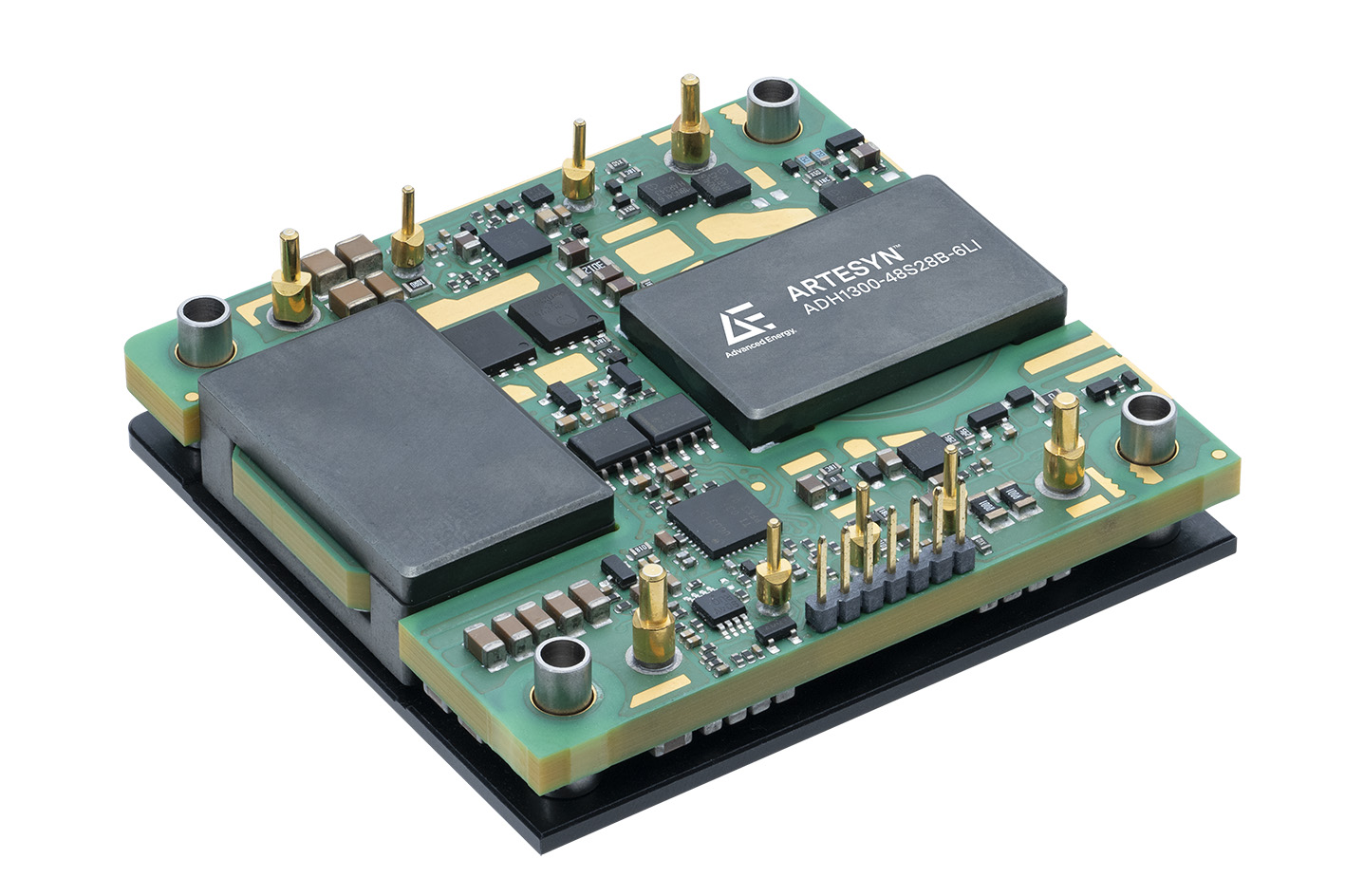

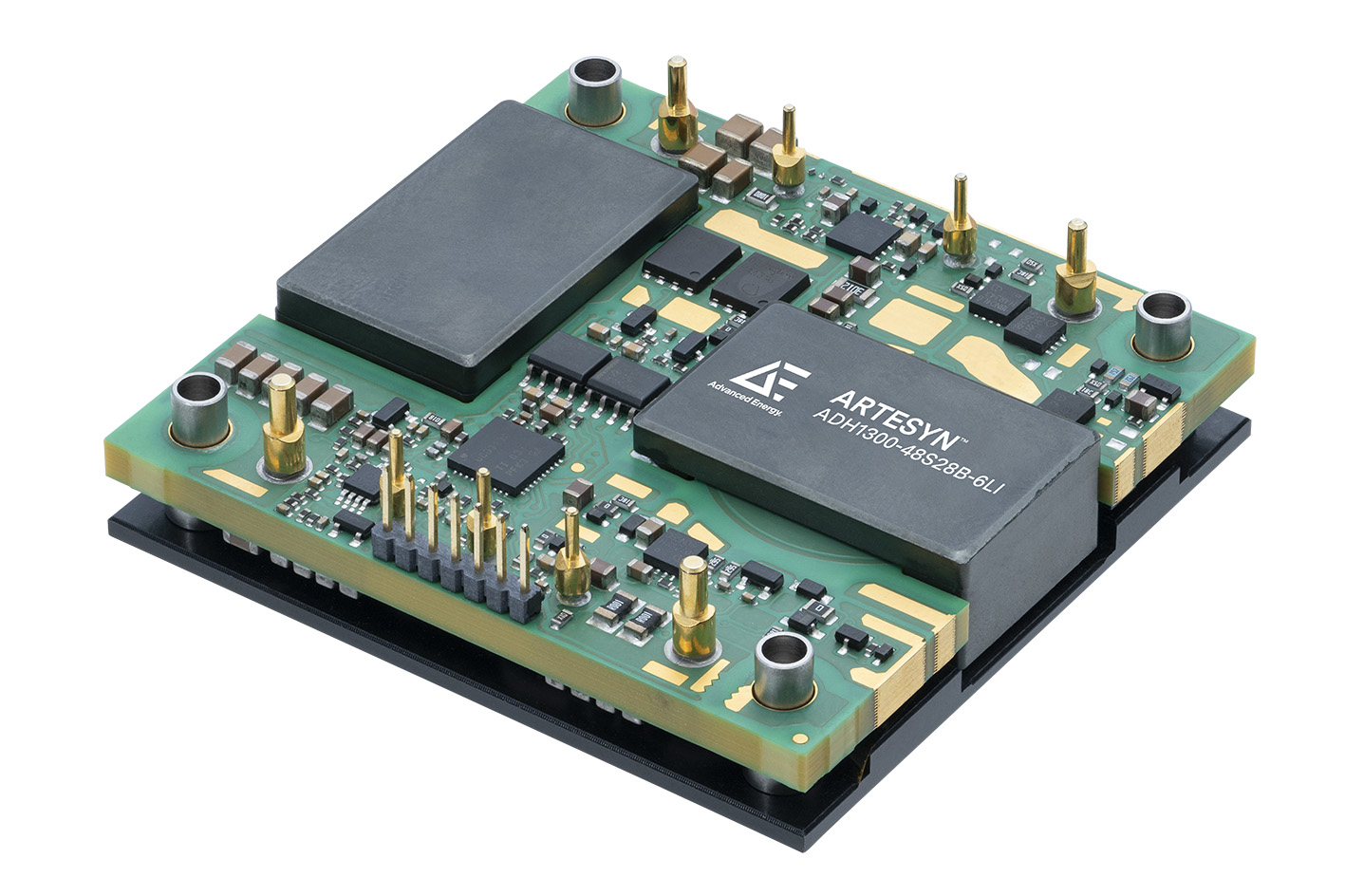

ADH1300
Active
1300 W Half-Brick DC-DC Converter
The ADH1300 series half-brick isolated DC-DC converter provides a single regulated 28 V/46.5 A low-noise 1300 W output with > 95% efficiency at half load. With an input range of 36 to 75 VDC, the series is designed primarily for standard 48 V telecom equipment, such as remote radio head (RRH) applications. A fixed 300 kHz switching frequency minimizes external EMI filtering requirements. An open-frame design with an aluminum thermal baseplate is optimized for conduction or forced air cooling. You can operate the ADH1300 converters over -40 to +85˚C ambient and with full power delivery up to a baseplate temperature of 100˚C. The unit follows the standard 1/2 brick dimensions of 2.3" (57.9 mm) * 2.4" (61 mm) and an installed height of just 0.5" (12.7 mm).
Features
- Delivers up to 1300 W
- Ultra-high efficiency: 95.5% peak
- Wide input range: 36 to 75 VDC
- PMBus function
- RoHS 3.0
- Remote control function (negativelogic)
- Remote output sense
- Input under-voltage lockout
- Input over-voltage lockout
- Output over-current protection
- Output over-voltage protection
- Over-temperature protection
- IEC/EN/UL/CSA 62368-1
Benefits
- Excellent thermal performance
- Power good function
- No minimum load requirement
- Fixed switching frequency
- Baseplate for contact cooling
- 2 year warranty
- UL94-V0
- CE Mark
Specifications
| Output Power (W): | 1300 |
|---|---|
| Length (Inches): | 2.3 |
| Width (Inches): | 2.4 |
| Height (Inches): | 0.5 |
| Mounting Type: | PCB mounted |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 46.5 |
| Output Voltage Range (V): | 14V to 32.9V |
Technical Documentation
Technical Videos
ADH1300 DC-DC Converters: Future-Proof Your RFPA System
Sep 25, 2024
Future-proof your RFPA system, ensure uninterrupted network coverage, and lower operating costs with Advanced Energy’s Artesyn® ADH1300-48S28 DC-DC converters. As power demands increase, these industry-standard ½ brick units deliver more power (up to 1300 W, 28 V, 46.5 A) without increasing form factor. Industry leading efficiency (nearly 96% at full load) also decreases energy usage and utility costs. The ADH1300 converter is thermally optimized and provides protection features against over-voltage, over-current, and short-circuit conditions. Low ripple, tightly controlled output voltage, and remote monitoring and configuration of a wide range of performance parameters, via PMBus interface, expand your ability to innovate new applications.
Close Popup
Compare

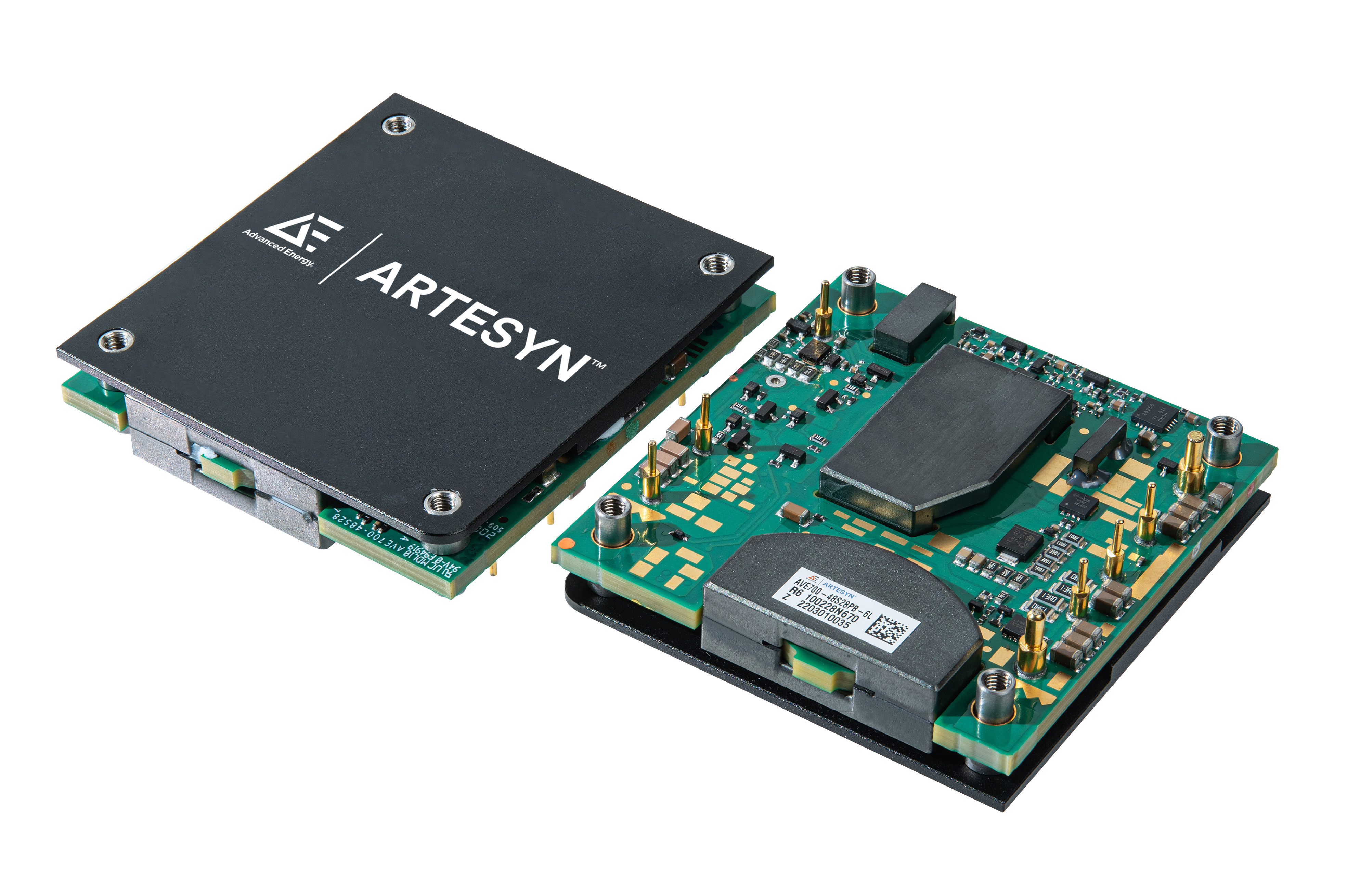

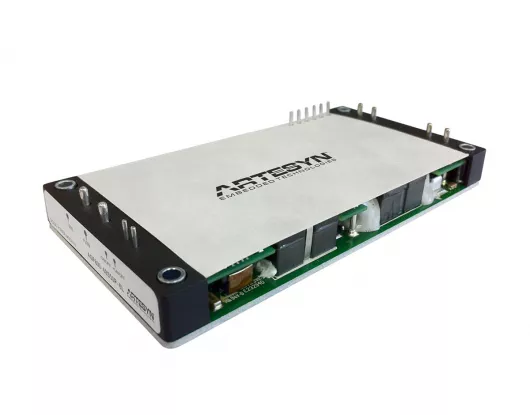

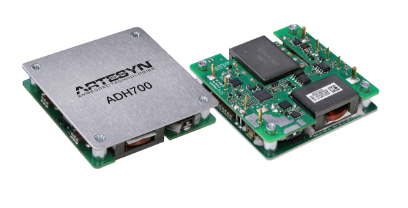

| Model | ADH1300 | ADH700 | AVE700 | AGF800 |
|---|---|---|---|---|
| Output Power (W) | 1300 | 700 | 700 | 800 |
| Operating Temperature (°C) | ||||
| Length (Inches) | 2.3 | 2.4 | 2.4 | 4.598 |
| Width (Inches) | 2.4 | 2.3 | 2.3 | 2.402 |
| Height (Inches) | 0.5 | 0.5 | 0.5 | 0.5 |
| Mounting Type | PCB mounted | BMP; Through Hole | BMP; Through Hole | BMP; Through Hole |
| Output Voltage Range (V) | 14V to 32.9V | 14V to 57V | 14V to 33V | 14V to 53V |
| Maximum Output Power (W) | 1300 | 700 | 700 | 800 |
| Maximum Input Voltage (V) | 75 | 75 | 75 | 75 |
