artesyn™
ADH700 Series
Active
700 W 1/2 Brick

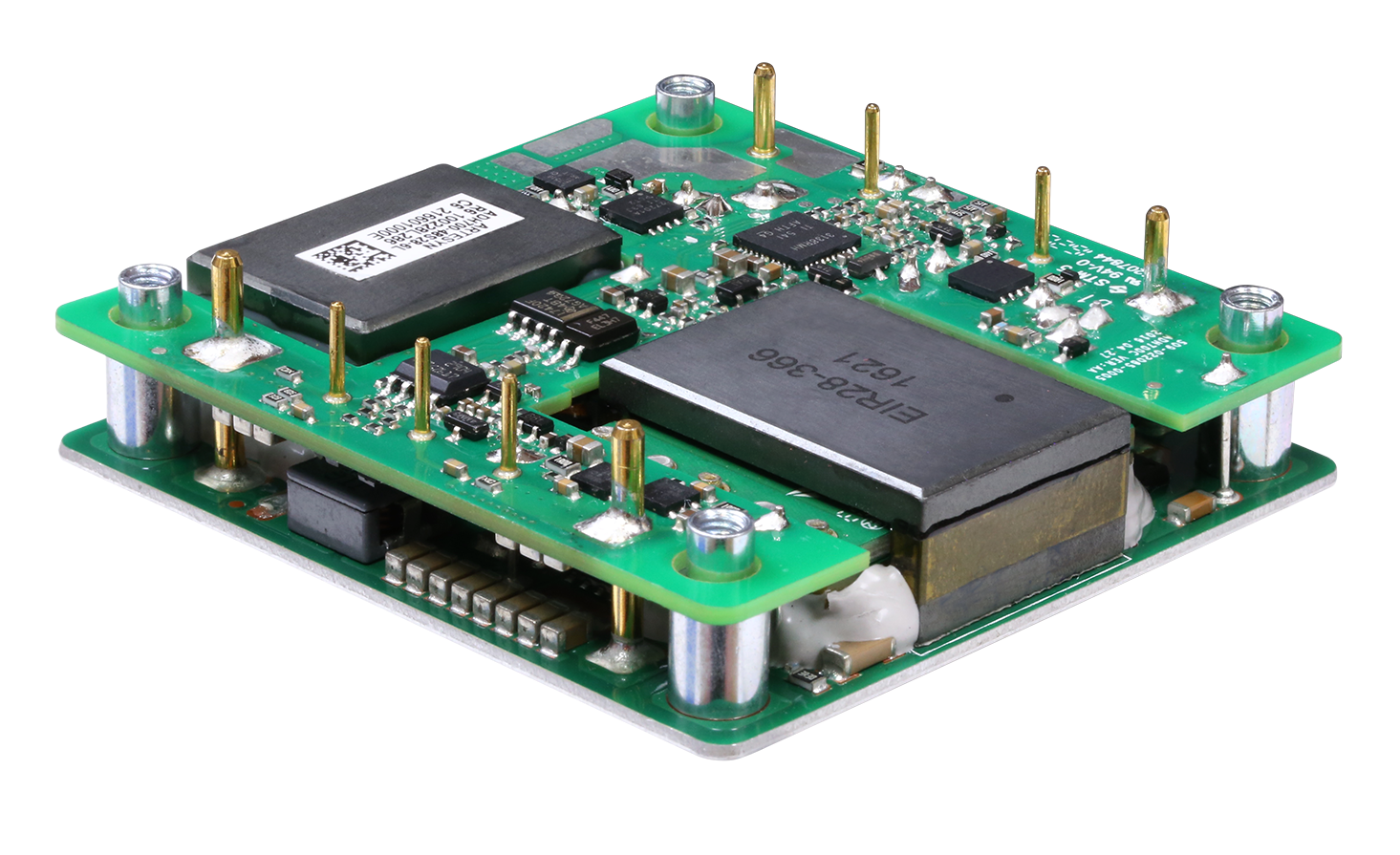

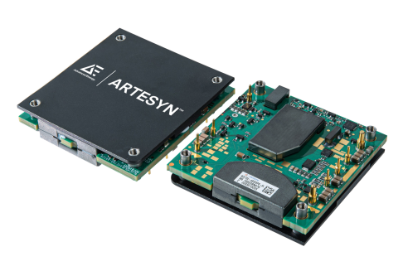

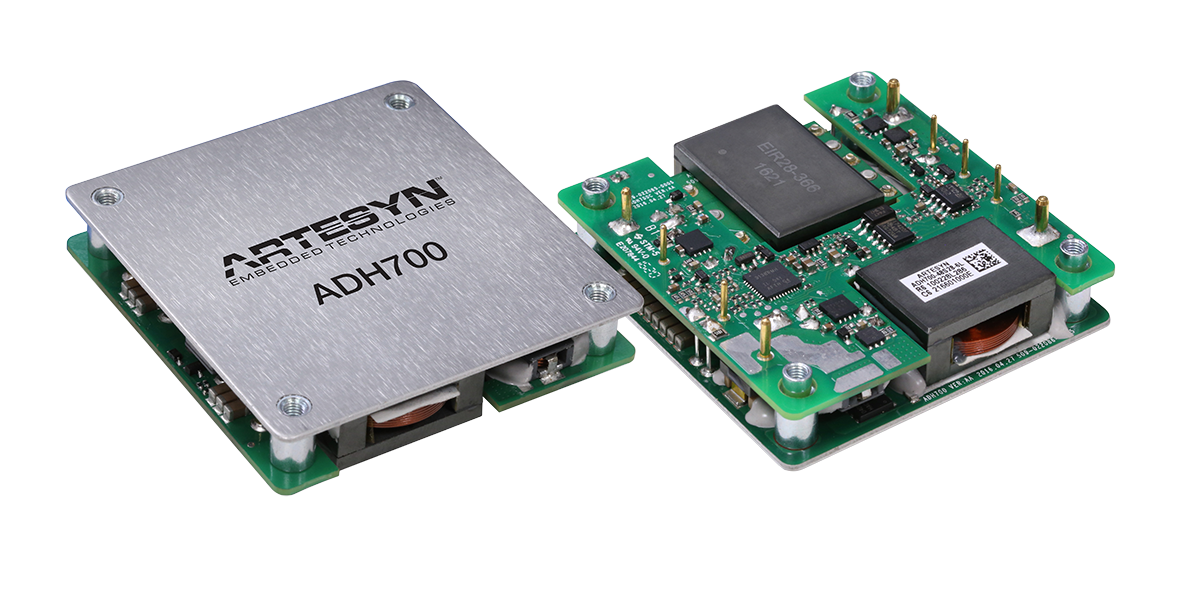

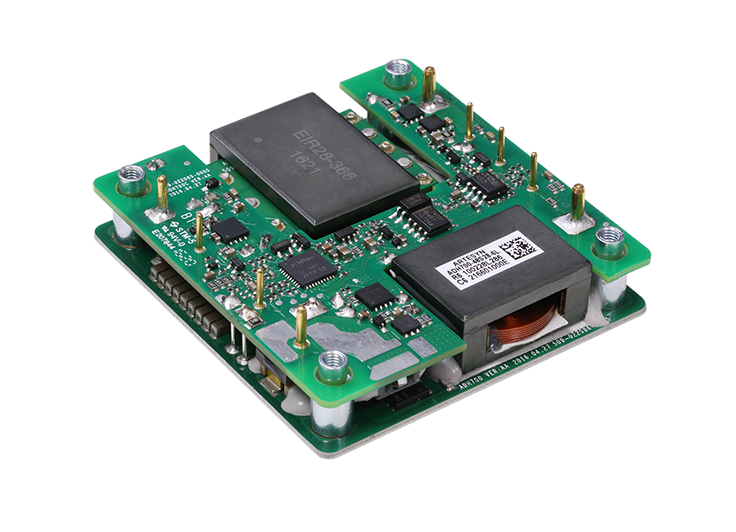

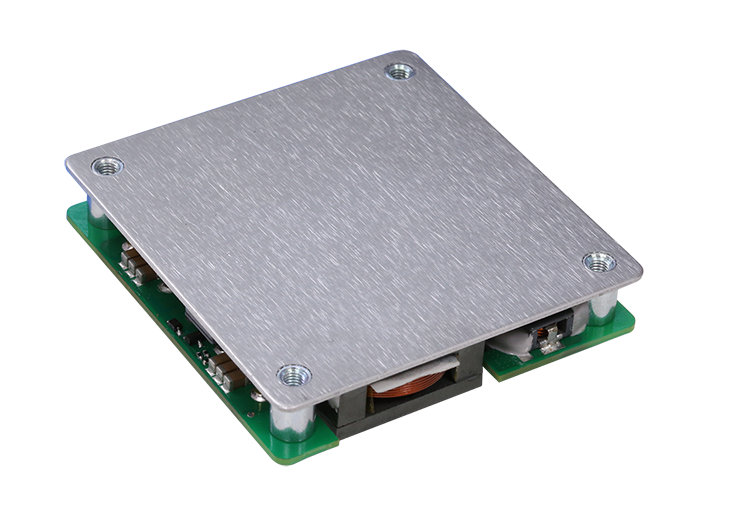

The ADH700 series half-brick isolated DC-DC converter provides a single regulated 28 V/25 A or 50 V/14 A low-noise 700 W output with >95% efficiency at half load. With an input range of 36 to 75 VDC, the series is designed primarily for standard 48 V telecom equipment, such as remote radio head (RRH) applications. A fixed 280 kHz switching frequency minimizes external EMI filtering requirements. An open-frame design with an aluminum thermal baseplate is optimized for conduction or forced air cooling. You can operate the ADH700 converters over -40 to +85ËšC ambient and with full power delivery up to a baseplate temperature of 100ËšC. Helping you meet demanding inter-board spacing requirements, the converters feature an installed height of just 0.5 inch (12.7 mm).
Features
- 36 65 Vdc Telecom input range
- 700 W continuous power
- RoHS 6 compliant
- Trim function: 50% ~118%
- UL94 V0 materials
- Ultra high efficiency 95% @ 100% load
- Input voltage 36V - 75 Vdc
- Output voltage 28 Volts
- Output current 25 Amps
- Output voltage 50 Volts
- Output current 14 Amps
- Isolation 1500 Vdc (ADH700-48S28)
- Isolation 2250 Vdc (ADH700-48S50)
- mechanical outline standard 1/2 brick
Benefits
- Contact cooling or heatsink mounting
- Excellent thermal performance
- Fixed switching frequency
- Fully regulated output voltage
- High reliability
- Industry standard halfbrick
- Low ripple and noise
- No minimum load requirement
- Output overcurrent protection
- Output overvoltage protection
- Output shortcircuit protection
- Overtemperature protection
- Remote control function
- Remote output sense
- logic control - analogue Positive or Negative enable
- insulation Basic insulation
- insulation Basic insulation
Specifications
| Output Power (W): | 700 |
|---|---|
| Length (Inches): | 2.4 |
| Width (Inches): | 2.3 |
| Height (Inches): | 0.5 |
| Mounting Type: | BMP; Through Hole |
| Minimum Output Current (A): | 0 |
| Maximum Output Current (A): | 28 |
| Output Voltage Range (V): | 14V to 57V |
Technical Documentation
Technical Videos
50V DC-DC Product Training Module
Nov 5, 2019
This 5-minute training video provides and overview of power conversion solutions for powering 50V-nominal GaN (Gallium Nitride) radio frequency power amplifiers for wireless telecom antennas.
It outlines the different power ratings required for RF power amplifier applications, provides details of the solutions that Artesyn can provide, review the challenges of the applications & how they are addressed by Artesyn and finally highlight the products and their respective specifications.
