TEGAM High Current Series
Active

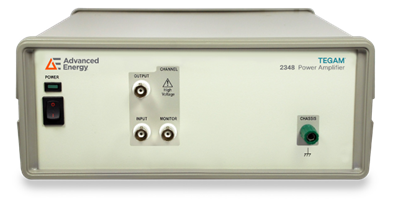

High Current Precision Power Amplifier
The Model 2348 2MHz Power Amplifier has a continuous current output of 750 mA at voltages up to 50Vpp. This provides 18.75W of AC or DC output power to 500 kHz. The instrument’s bandwidth ranges from DC to 2MHz. An independent, buffered, voltage monitor output is provided for applications that require a low-level representation of the output signal such as in closed loop applications. The monitor output reduces the output signal to 20:1 for 50Ω inputs and 10:1 for inputs exceeding 1MΩ. The 2348 is ideally suited for high-frequency, power applications that require voltage amplification with an abundant supply of current.
Features
- ±25V with up to 750mA of output current
- Bandwidth from DC to 2MHZ
- Full power bandwidth from DC to 500kHz
- Precision voltage monitor
Benefits
- Precise amplification and voltage stability
- Compatible with most function, sweep, pulse, or arbitrary waveform generators
- Designed for applications that require moderate voltage amplification and high current
Specifications
| Output Power (W): | 18.75 |
|---|---|
| Maximum Output Current (A): | ±0.75 |
| Slew Rate (V/ms): | >200 |
| Output Current Range (mA): | 0 to ±750 |
| Output Voltage Range (V): | 0 to ±25 |
