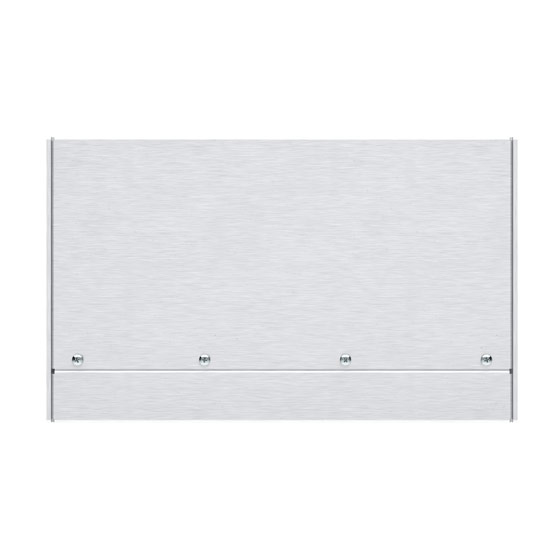

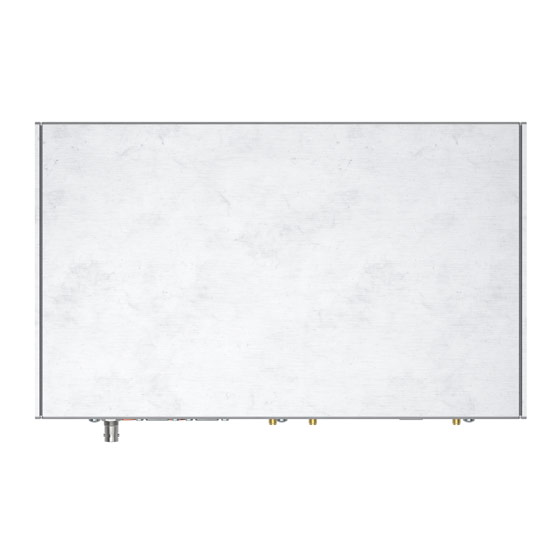

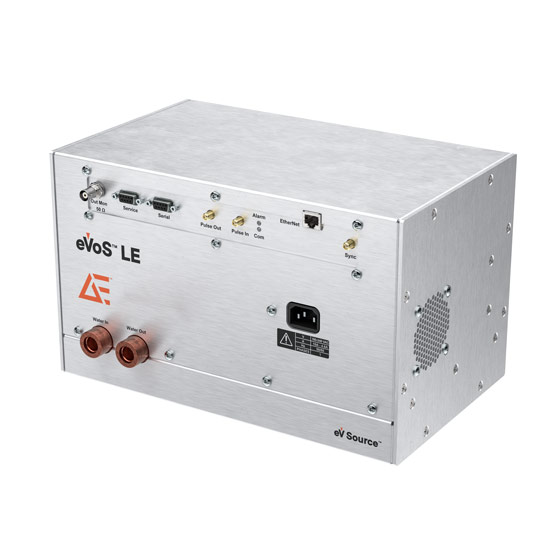

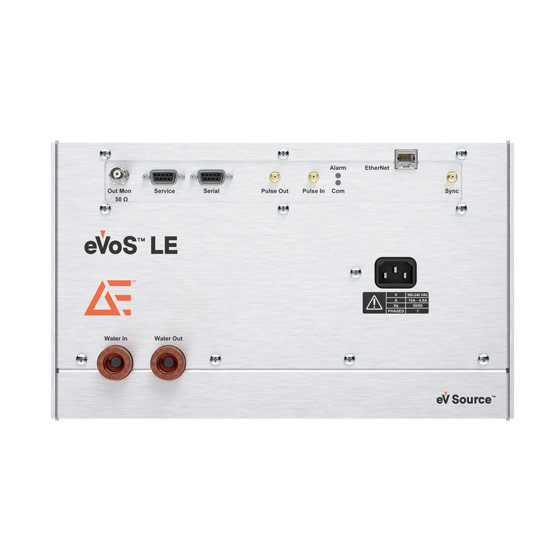

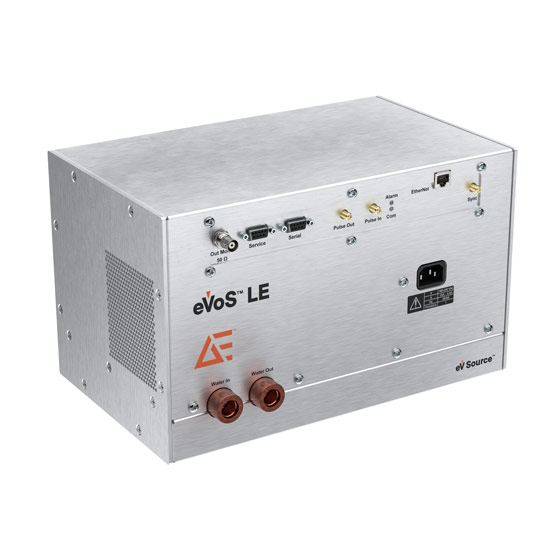

eVoS LE Bias Solution
Asymmetric Bias Waveform Generator for Direct Control of Substrate Voltage and Ion Energy
Features
- Ability to produce near mono-energetic ion energy distributions
- Pulse capability with necessary input and output signals for synchronization
- Integrated design and compact size eliminates need for matching network
- High-speed metrology provides real-time bias voltage and ion current feedback
- Narrow, broad, and multi-peak distributions
- Adaptable to standard chamber interface
Benefits
- Achieve direct control of wafer bias voltage and resulting ion energies
- Gain enhanced ion energy selection/discrimination when compared to a RF bias method
- Significantly increase etch selectivity for shorter processes and straighter, deeper features
- Use less power by using the “right power,” only delivering the useful ion energy
- Simplify bias power integration
Specifications
| Cooling: | Hybrid (air and water) |
|---|---|
| Output Frequency (MHz, kHz): | 400 kHz |
| Input Voltage (V): | 185 to 260 VAC |
| Rack Width: | Chamber Mount and Full Rack |
| Output Voltage Range (V): | 2250 V |
| Communications Interface: | EtherCAT, Ethernet |
| Process Applications: | Etch |
| Peak Current (A): | 1.4 |
Technical Documentation
Services
Service Agreements
Reduce annual maintenance costs and simplify forecasting by building a custom service agreement into your annual operating plan. We have the capability, expertise, and capacity to provide repair services, upgrades, refurbishments, exchange, and other service offerings to support maintenance and use of AE Products. We offer multi-year contracts and provide faster turnaround time for covered products.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Total Service Package
We offer customized service bundles that include calibration, alignment, and extended warranty. Services will include scheduled calibration with adjustment and repairs as needed. Any software/firmware upgrades are also made available for customers.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
PowerInsight
Power your process with data using PowerInsight by Advanced Energy™, transforming data into actionable intelligence with advanced analytics and machine learning, enabling you to improve yield and reduce unplanned downtime.
Field services and On-Site Training
Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.
