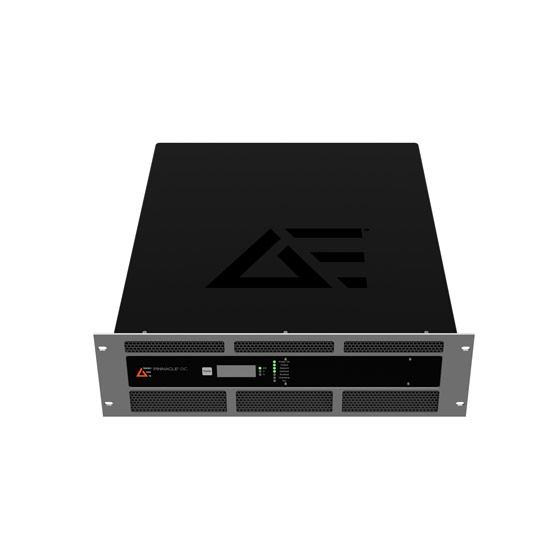

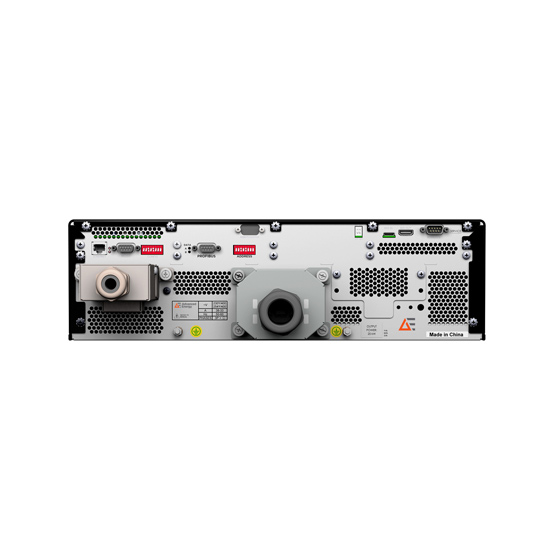

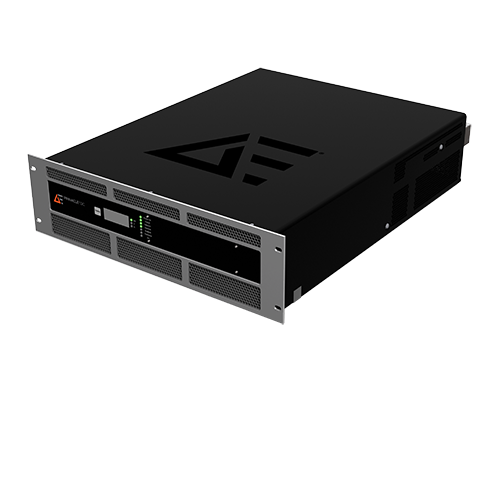

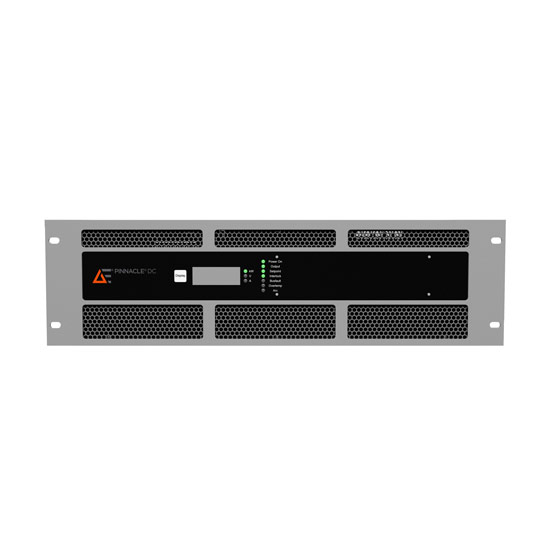

Pinnacle III DC Power Supply
The Most Recognized DC Power Supply for <= 20 kW Processes
Features
- Lower operating and installed costs
- Achieve fast arc response
- Configure arc response
- Maximize process efficiency
- Precisely control your process
Benefits
- Low stored energy — less than 1 mJ per 1 kW of output
- No tap changes
- Output repeatability of ±0.1%
- Target conditioning cycle (TCC) — minimizes conditioning time for new targets
- Joule mode — optimized energy delivery
Specifications
| Cooling: | Air |
|---|---|
| Input Voltage (V): | 208, 400, 440, 480 VAC |
| Power Level (kW): | 5 to 20 kW |
| Rack Width: | Full rack |
| Height (Inches): | 3U |
| Output Voltage Range (V): | 400-1000 V |
| Communications Interface: | Ethernet, EtherCAT, DeviceNet, ProfiNet, Profibus, RS-232/485, EtherNet/IP, and analog communications |
| Advanced Features: | Arc management |
Technical Documentation
Services
Total Service Package
We offer customized service bundles that include calibration, alignment, and extended warranty. Services will include scheduled calibration with adjustment and repairs as needed. Any software/firmware upgrades are also made available for customers.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Service Agreements
Reduce annual maintenance costs and simplify forecasting by building a custom service agreement into your annual operating plan. We have the capability, expertise, and capacity to provide repair services, upgrades, refurbishments, exchange, and other service offerings to support maintenance and use of AE Products. We offer multi-year contracts and provide faster turnaround time for covered products.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Upgrades & Enhancements
Take advantage of the latest engineering innovations to optimize long-term product performance. Add custom-engineered solutions to utilize new feature sets and functionality
Field services and On-Site Training
Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.
PowerInsight
Power your process with data using PowerInsight by Advanced Energy™, transforming data into actionable intelligence with advanced analytics and machine learning, enabling you to improve yield and reduce unplanned downtime.
