Thyro-PX Modular Solution

Active

SCR Controller Components

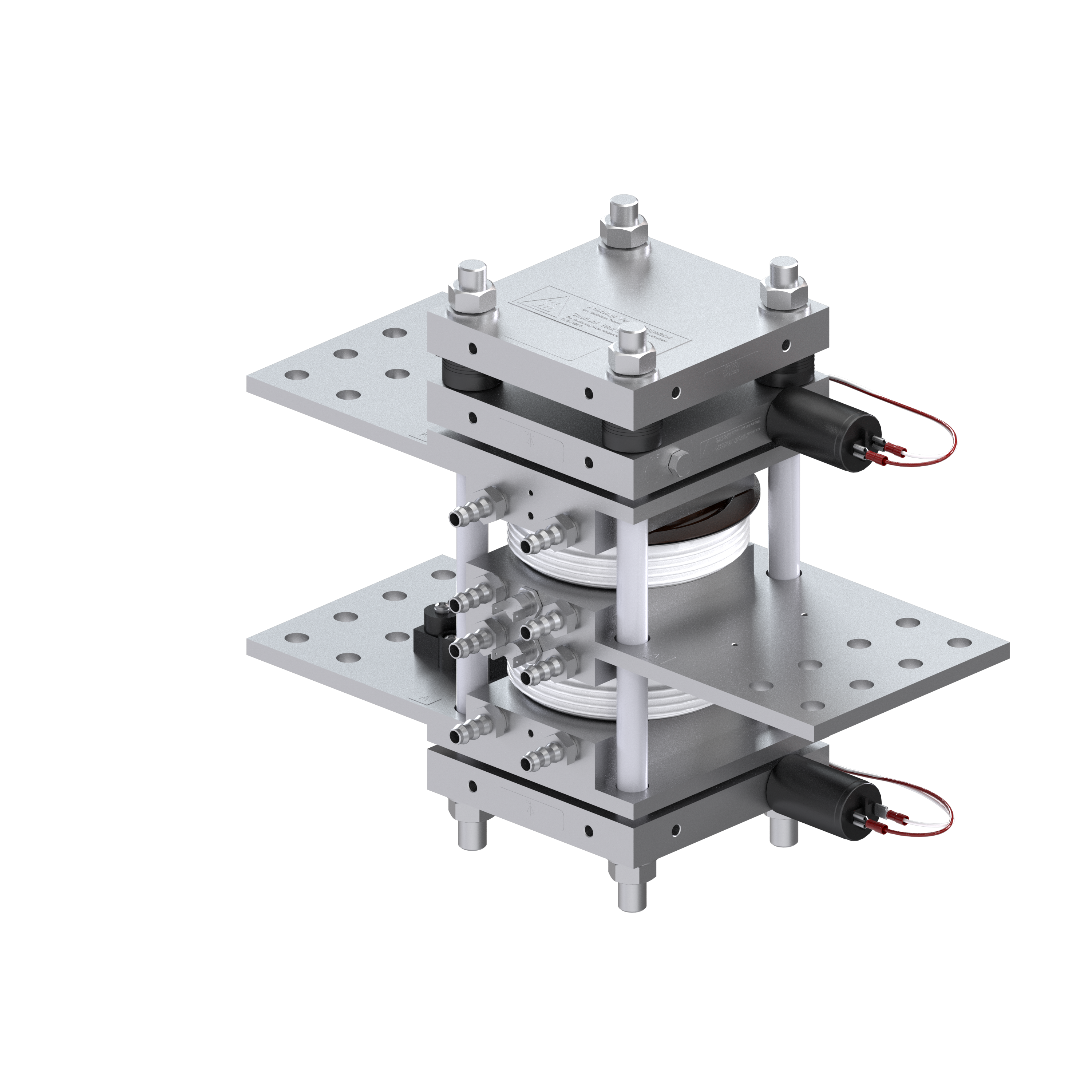

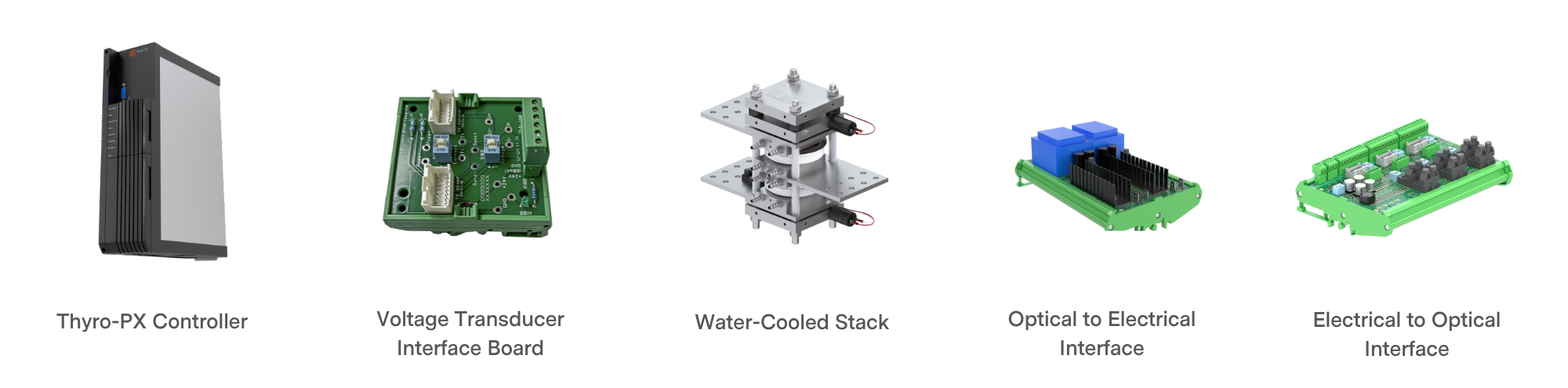

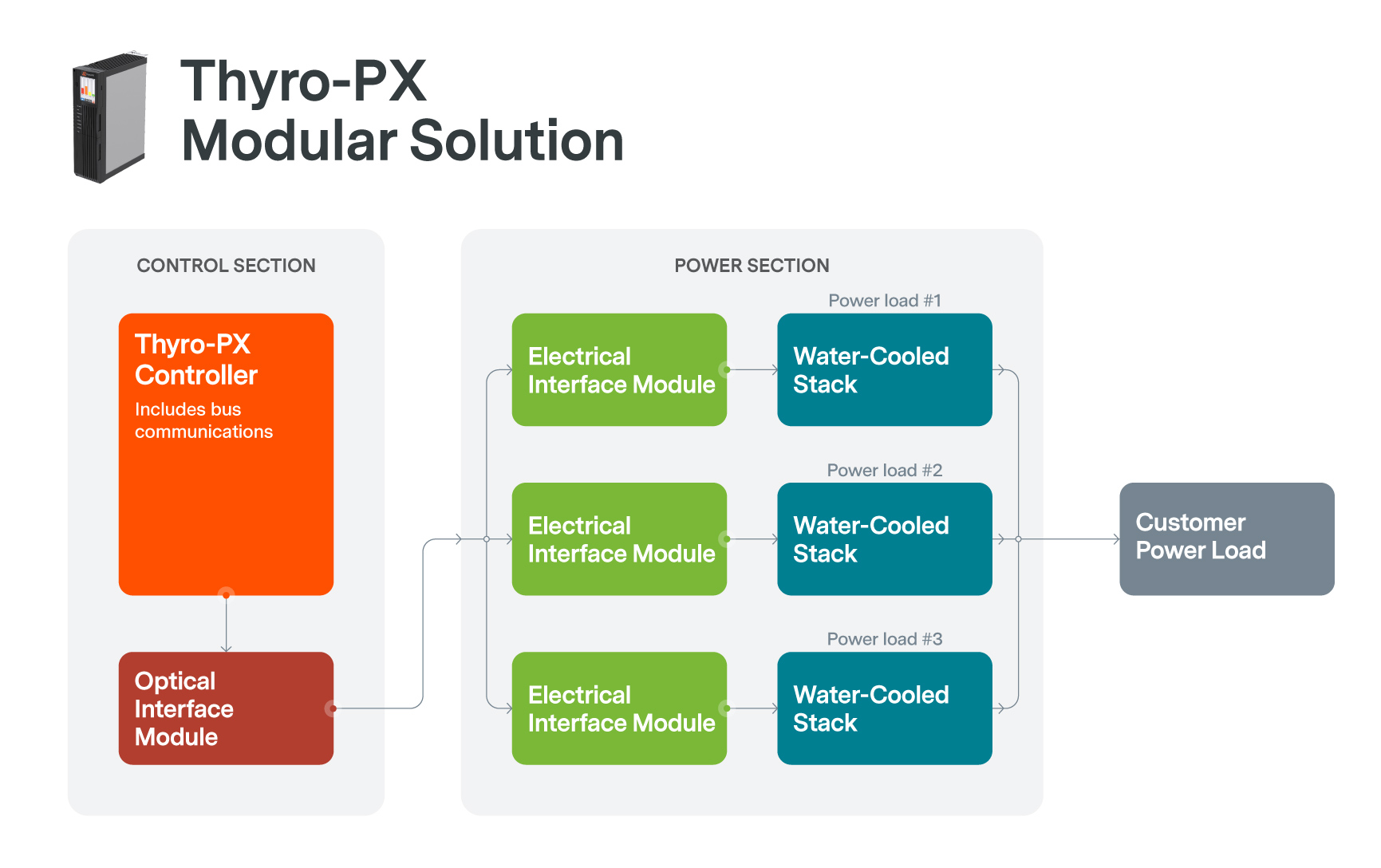

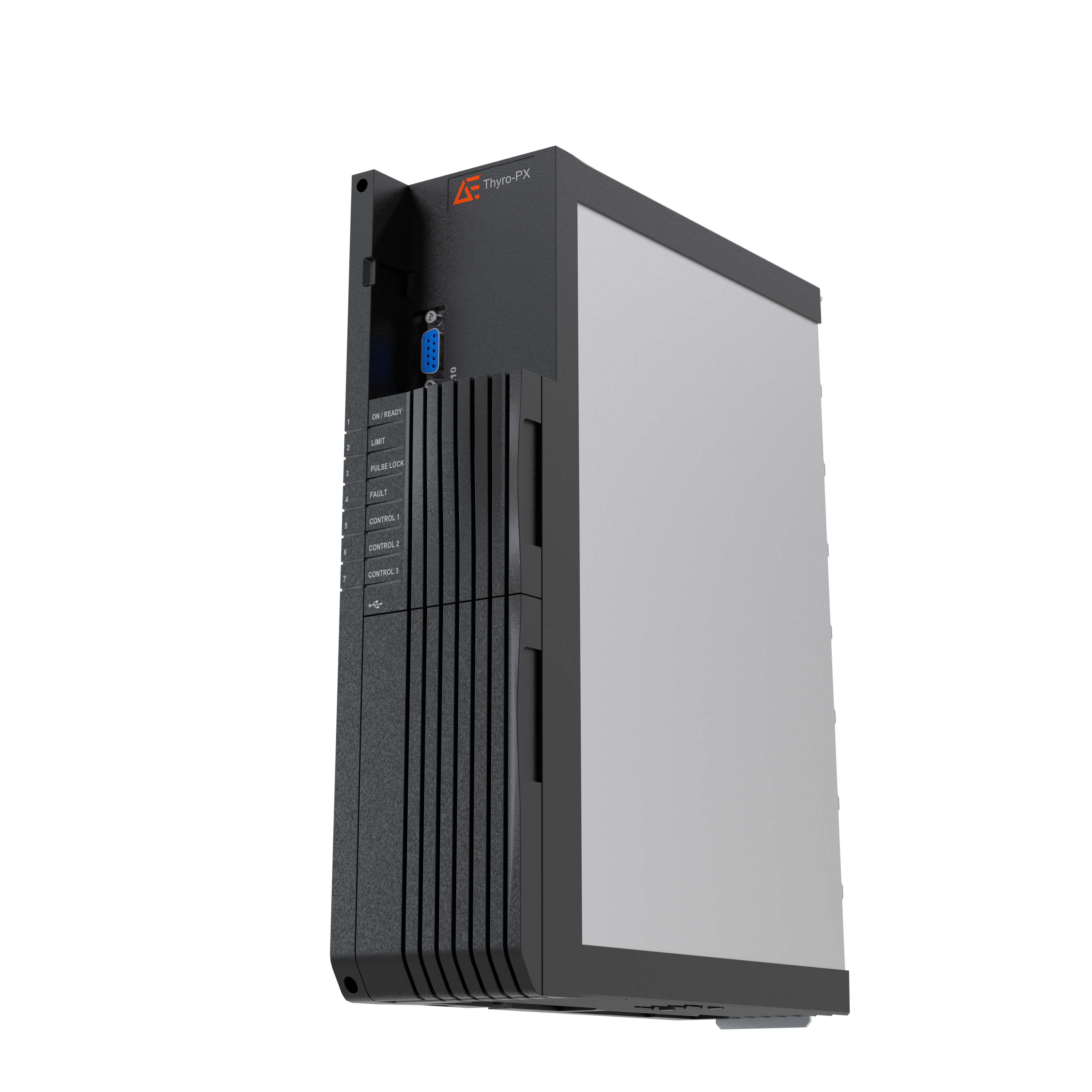

The Thyro-PX Modular Solution is a distributed architecture that allows easy installation of a customized SCR power controller system for high-current AC and DC applications. You can select and integrate individual SCR system components to create a solution beyond the reach of traditional digital SCR power controllers. These components include the Thyro-PX digital SCR power controller card architecture, fiber optic connections to reduce EMI, and versatile DC configurations. In addition, our water-cooled stacks provide a seamless solution for AC applications. Learn how to customize your setup.

Features

  • 1, 2, and 3-phase power controller
  • Up to 690 VAC [+10%]
  • Up to 900 VDC
  • Zero cross firing (TAKT) phase-angle firing (VAR)
  • Voltage sequence control (VSC) soft start, soft down
  • Communications:
    • Ethernet/IP
    • EtherCAT
    • PROFIBUS
    • PROFINET
    • Modbus TCP/IP

Benefits

  • Comprehensive operating and control modes to minimize harmonic distortion and utility costs
  • High-efficiency, wear-free design with integrated soft starting for use with downstream transformers
  • Separation of power circuit and control section to avoid EMC issues, when used with the fiber optic trigger option
  • For AC and DC configuration; suitable to design W1C to W3C or B12; B18 DC systems
  • Intuitive performance and status feedback via a modular, integrated touch-screen display or PC tool
  • Multi-zone capability that independently controls multiple single-phase loads from a single controller
  • Premier control accuracy to maximize end-process repeatability


Specifications

Controller Operational Temperature Range: 40 C
Controller Nominal Input Voltage Range (V): 37 VAC
Controller Product Size W x H x D [mm]: 75 x 284 x 204
Controller Output Power: 50 W
Controller Length (mm): 75
Controller Width (mm): 284
Controller Height (mm): 204

Accessories

Thyro Anybus Module - EtherNet/IP

Communication Module Adds EtherNet/IP Interface

Thyro Anybus Module - Modbus

Communication Module Adds Modbus TCP Interface

Thyro Anybus Module - Profibus

Communication Module Adds the Profibus Interface

Thyro Anybus Module - Profinet

Communication Module Adds Profinet Interface

Thyro Tool Pro

Thyro Tool software is custom software made for Thyro SCR Power Controllers

Thyro-Touch Display

Integrated Process Data Recording with Easy Operation via Touch Display

Thyro-Touch Frame Kit

Frame Kit for display front door assembly
