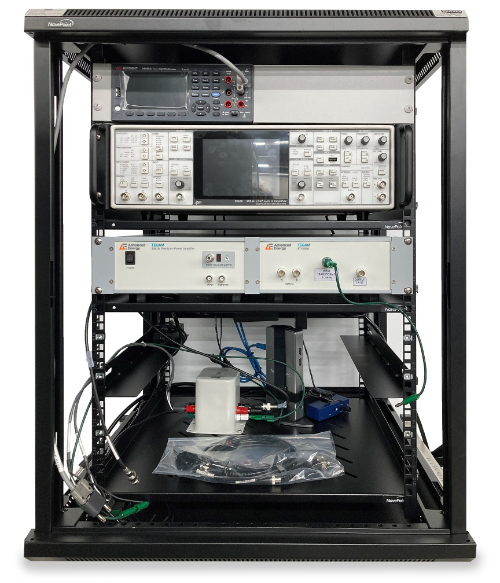

1372A AC Ratio Transformer Calibrator
1372A AC Ratio Transformer Calibrator
tegam ®

AC Ratio Transformer Calibrators

Active

Precisely Calibrate AC Ratio Transformers

Stock Check

Our 1372 series AC ratio transformer calibrators are designed to modernize the equipment and processes used for the calibration of AC ratio transformers. These systems are engineered for accuracy to ensure reliable performance of AC ratio transformers. Featuring a user-friendly computer interface, they offer of refreshing approach to ratio transformer calibration. The 1372A includes the DT72B AC Ratio Transformer as the reference standard wherethe 1372B is provided without the necessary DT72B, so users can install their own reference standard.





Features

  • Resolution 0.1 ppm
  • Terminal linearity 0.9 ppm
  • Bandwidth 50 Hz to 20 kHz
  • Ratio testing is performed at defined points between 0.0000000 and +1.0000000
  • 1 year warranty
  • Assembled in USA

Benefits

  • Modernized calibration of AC ratio transformers.

Specifications

Basic Accuracy/Linearity: 0.00009%
Frequency Range: 50 Hz to 20 kHz
Ratio Range: 0.0 to +1.0
Resolution (°C): 1 x 10⁻⁷

Stock Check

Model Number
 Frequency Range Ratio Range Resolution Buy
1372A Active, Contact Us
AC Ratio Transformer Calibrator, Automated, Turnkey
50 Hz to 20 kHz 0.0 to +1.0 1 x 10⁻⁷ Buy
1372B Active, Contact Us
AC Ratio Transformer Calibrator, Automated, (1372A w/o DT-72)
50 Hz to 20 kHz 0.0 to +1.0 1 x 10⁻⁷ Buy
