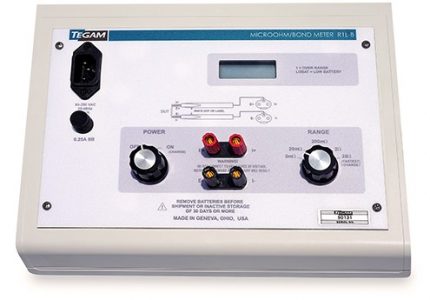

R1L-BI Portable Bond Meter
Milli-Ohmmeter and Bond Meter, Bench Top 10 µΩ to 20 Ω, Includes KTL-100 Kelvin Klips (not CE certified)
The R1L-BI series Milli-Ohmmeter/Bonding Tester is a digital milli-ohmmeter and bond meter designed to measure resistances from 10 μΩ to 20 Ω. It is used in applications such as aerospace bond testing, metal bonding, motor, transformer, switch, circuit breaker, circuit resistance and other contact and connection resistance tests, as well as higher resistance measurements for circuit analysis and resistor testing up to 20Ω. The instruments utilize the four-terminal, Kelvin technique to eliminate errors caused by test lead resistance. Readings are viewed on a 3-1/2 digit display, reading from 1.999 to 199.9.
This milli-ohmmeter and bond meter can measure resistance in the presence of reactive loads up to 2 mH or 100 μF.
The R1L-BI does not include probes. Please visit the R1L Series Test Probes page to make your probe selection.
Features
- Ranges: 2 mΩ to 20Ω
- Accuracy: 0.25% of reading
- Resolution: 1 µΩ
- Portable: Long Rechargeable Battery Life
- Simple Operation
- Kelvin Test Leads included
- 3-year warranty
- Assembled in the USA
Benefits
- Thermal offset compensation to maintain accuracy in varying ambient temperatures
- Rechargeable battery provides long operation time for continuous daily use
- Quick set up and easy operation
Specifications
| Accuracy: | ±(0.25% rdg + 1 cnt) |
|---|---|
| Connector Type: | Banana |
| Datalogging: | No |
| Intrinsically Safe: | No |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 1.4 A |
| Measurement Range: | 1 µΩ to 20 Ω |
| Operating Temperature (°C): | 0 to 50 ⁰C |
