tegam ®

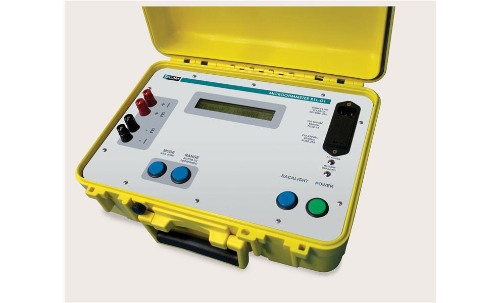

R1L-D1 Portable Bond Meter
Active
Milli-Ohmmeter and RTD Meter, Low Current, 10 µΩ to 2 kΩ,No Leads Included (not CE certified)
The Model R1L-D1 is a portable Milli-Ohmmeter and RTD monitor for measuring low resistance values with high accuracy. It is optimized for measuring 100 and 1000 Ω 3 and 4-wire RTDs, and utilizes the 4-wire technique to eliminate errors caused by the connection resistances. The R1L-D1 calculates the value of the resistor under test, and indicates the value on an LCD. 2 and 3-wire measurement methods can also be selected. To maintain accuracy, an automatic zero circuit turns off the test current and resets the zero of the instrument prior to each resistance reading. This also serves to null out any thermally-generated voltages in the test leads or in the resistance being tested.
Features
- Portable: Longest Rechargeable Battery Life (140 Hour)
- Ranges: 200 mΩ to 2 kΩ (Auto & Manual)
- High Accuracy: 0.05% of reading
- Resolution: 1 µΩ
- 2-, 3- or 4-wire measurement
- Rugged: MIL-PRF-28800F Class 3
- Offset Compensation
- Back Lit Display
- NSN: 6625-01-456-9125
- 3 year warranty
- Assembled in the USA
Benefits
- Instrument built into rugged storage/carry case for added protection
- Thermal offset compensation maintains the very high accuracy of the meter over as ambient conditions change
- 2-, 3-, and 4-wire measurement techniques can measure a wide range of RTDs
Specifications
| Accuracy: | ±(0.05% rdg + 15 cnt) |
|---|---|
| Connector Type: | Banana |
| Datalogging: | No |
| Intrinsically Safe: | No |
| Max. Resolution: | 1 µΩ |
| Maximum Test Current: | 0.05 A |
| Measurement Range: | 1 µΩ to 2 kΩ |
| Operating Temperature (°C): | 0 to 50 ⁰C |
