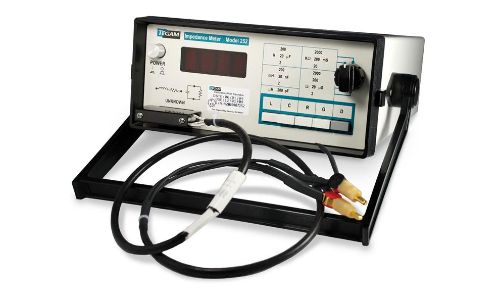

Model 252 and Accessories

Active

Digital LCR Meters

Buy Datasheet

The Advanced Energy TEGAM® Model 252 LCR Meter is perfect for component inspectors and manufacturing operators performing manual testing of inductors, capacitors, or resistors. The 252 is an all-purpose LCR meter designed with simplicity and dependability in mind. The meter uses a 1 kHz test frequency and accurately measures L, C, R, G and D.

Features

Basic accuracy 0.25%
Measurement Speed: 250 ms
Test frequency: 1 kHz
Automatic L, C, R, G and D measurements
Shielded Kelvin Connections
Rear Panel External Bias Terminals
Calibration Certificate Included
1 year warranty
Made in USA

Benefits

Automatic measureements of inductnace, capacitance, resistance, conductance, and dissipation.
Simple and easy to use

Specifications

Basic Accuracy:	±0.25%
Intrinsically Safe:	No

Stock Check

Model Number Buy	Basic Accuracy	Connector Type	Intrinsically Safe	Pin Tip Style	Buy
43374 Active, Contact Us Dust Cover for 252, 253, 254 Buy			No		Buy
47422 Active, Contact Us 2 Wire Tweezer Tip Replacement Kit - 12 Tips, 2 Screws & 1 Allen Wrench for SKT-3, SKT-5, SKT/252-5 and SKT/1750-5 Buy			No		Buy
47423 Active, Contact Us Tweezer Tip Replacement Kit - 4 Wire. For SKT-3, SKT-5, SKT/252-5 and SKT/1750-5 Buy					Buy
47424 Active, Contact Us Angled Tweezer Tip Replacement Kit - 4 Wire. For SKT-3, SKT-5, SKT/252-5 and SKT/1750-5 Buy					Buy
47454 Active, Contact Us Kelvin Klips. 5 Terminal. For 3525 and 3550. 5 ft Buy					Buy
CA-162-36 Active, Contact Us Cable, 1830A and 1806A to Large Heater, 15" Buy					Buy
CA-162-72 Active, Contact Us Kelvin Klips for 252, 253, 254, 3' Buy					Buy
KK100 Active, Contact Us Kelvin Klip Replacement Kit for CA-162-36, 17501, 47454 & 27838 Buy		NA	No	Clip	Buy
KK-BAND Active, Contact Us Kelvin Klip Bands, Quantity 20 Per Pack Buy		NA	No	Clip	Buy
252 Active, Contact Us General Pupose, Portable LCR Meter Buy	±0.25%				Buy
SKT/252-5 Active, Contact Us Kelvin Chip Tweezers for 252, 253; 5' Buy			No	Tweezer	Buy
SKT-3 Active, Contact Us Kelvin Chip Tweezers for 2150, 2160, 3525. 3550; 3' Buy		BNC	No	Tweezer	Buy

GSAmart

Click here for government agency procurement support.

Visit GSAmart

Technical Documentation

Title	Type
252/253 Accessory Sheet (177 KB)	Accessory Sheet
AN102: How to Properly Zero a Kelvin Klip (48 KB)	Application Note
AN300: Verify Fenwal Temperature Sensing Elements (110 KB)	Application Note
AN301: LCR Meter Measurement Accuracy (208 KB)	Application Note
TEGAM Resistance Brochure (415 KB)	Brochure
252/253 Datasheet (218 KB)	Data Sheet
252 Manual (2 MB)	Manual
