252 LCR Meter

Active

General Purpose, Portable LCR Meter

Stock Check Datasheet

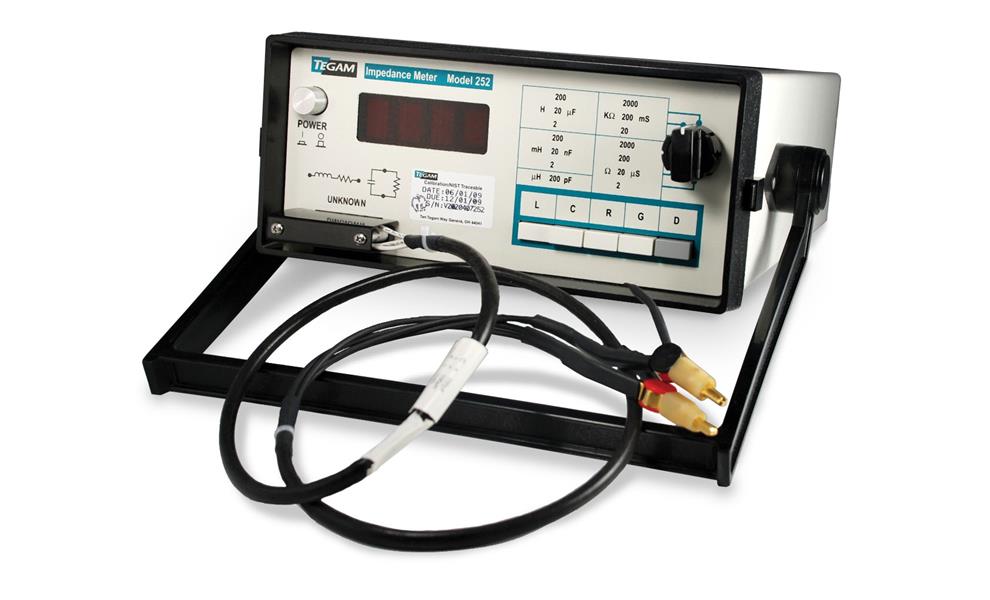

Model 252 Digital Impedance/LCR Meter is a semi-automatic instrument which permits rapid measurement of inductance (L), capacitance (C), resistance (R), conductance (G) and dissipation factor (D) at a test frequency of 1 kHz. Measurement accuracy and versatility satisfies most demanding engineering or scientific applications. An optional battery power pack (252/SP2596) is available. This allows these meters to be used
with line power when available and unplugged when convenient or necessary.

Features

Measurement Speed: 250 ms
Test Frequency: 1 kHz
Automatic L, C, R, G and D measurements
Shielded Kelvin Connections
Rear Panel External Bias Terminals
Calibration Certificate Included
1 year warranty
Made in USA

Benefits

Automatic measurements of inductance, capacitance, resistance, conductance, and dissipation.
Simple and easy to use

Specifications

Basic Accuracy:	±0.25%
Reading Rate:	250 ms

Stock Check

Model Number Buy	Basic Accuracy	Buy
252 Active, Contact Us General Pupose, Portable LCR Meter Buy	±0.25%	Buy

GSAmart

Click here for government agency procurement support.

Visit GSAmart

Technical Documentation

Title	Type
252/253 Accessory Sheet (177 KB)	Accessory Sheet
AN102: How to Properly Zero a Kelvin Klip (48 KB)	Application Note
AN300: Verify Fenwal Temperature Sensing Elements (110 KB)	Application Note
AN301: LCR Meter Measurement Accuracy (208 KB)	Application Note
252/253 Datasheet (218 KB)	Data Sheet
252 Manual (2 MB)	Manual
