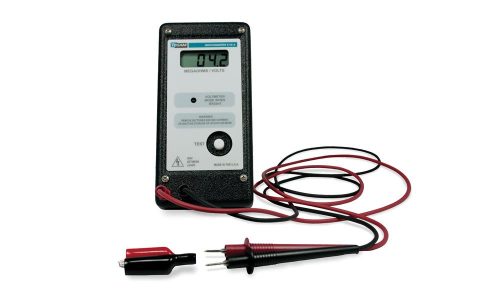

R1M-B Mega-Ohmmeters
Megohmmeter, Handheld, 1MΩ to 200MΩ, 3%, 500V, 3.5 Digit; no CE
The Model R1M-B Handheld Voltmeter/ Megohmmeter is designed to measure insulation resistance in live circuits, which may have voltage present. It can be connected to 600 V RMS AC or DC without damage, and its mode of operation is automatic. It has no fuse to replace. The R1M-B megohmmeter will operate after a drop from a height of four feet to a concrete floor.
All TEGAM units are tested in an environmental chamber at 71° C and 95.5% RH.
The R1M-B complies with MIL-PRF-28800, Type III, Class 3, Style E for rugged operational environments and shipboard applications. These voltmeters/megohmmeters perform under the extremes of heat, cold, humidity, shock, and vibration.
Features
- Megohmmeter measures 1 to 200 MΩ
- 500 V Test Voltage
- Voltmeter/Megohmmeter Measures AC RMS Voltage to 600 V
- 9V Battery Operation
- Simple One-Range Operation
- LED on When Voltage is Present
- Rugged to Mil Specifications
- Single Push Button For Test
- NSN: 6625-01-353-7077
- 1 year warranty
- Assembled in the USA
Benefits
- Used to measure high resistance levels in “live” circuits, which may have voltage present
- Ruggedly built to operate in harsh conditions
- Handheld-sized for ultimate portability and operating convenience
Specifications
| Connector Type: | Banana |
|---|---|
| Datalogging: | No |
| Intrinsically Safe: | No |
| Max. Resolution: | 1 µΩ |
| Measurement Range: | 1 MΩ to 200 GΩ |
| Operating Temperature (°C): | 0 to 50 ⁰C |
