tegam ®

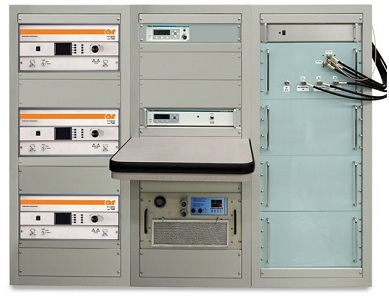

High Power Calibration System
Active
Calibrate Devices up to 100 W with <1% Uncertainty
Advanced Energy's high power calibration system is an automated solution for calibrating through path and terminating RF power measurement devices from multiple manufacturers. It includes the signal generation, amplification and filtering necessary to achieve or exceed the devices' original specifications with the most accurate high power measurement system commercially available. At the core of the system’s unmatched accuracy is an exclusive flow calorimeter designed for low uncertainties and convenient traceability. An internationally recognized portable power standard is used to calibrate the system in place. Enjoy unmatched accuracy and convenient traceability.
Features
- Power levels of up to 100 W across the frequency range with uncertainty less than 1%
- 250 kHz to 3000 MHz Frequency Range
- National Lab Traceable through an AC Power Standard
Benefits
- Calibrate High Power RF Sensing devices up to 100 W with uncertainty less than 1%
- Calibrate working standards like the TEGAM 2601A and 2602A
- Calibrate through devices like a Bird Wattmeter
- Calibate high Power RF Power Sensors from Keysight, R&S, and Anritsu
Specifications
| Basic Accuracy: | +/- 1% |
|---|---|
| Frequency Range: | 250 kHz to 3 GHz |
| Power Range: | Up to 100 W |
| Software Included: | Yes |
