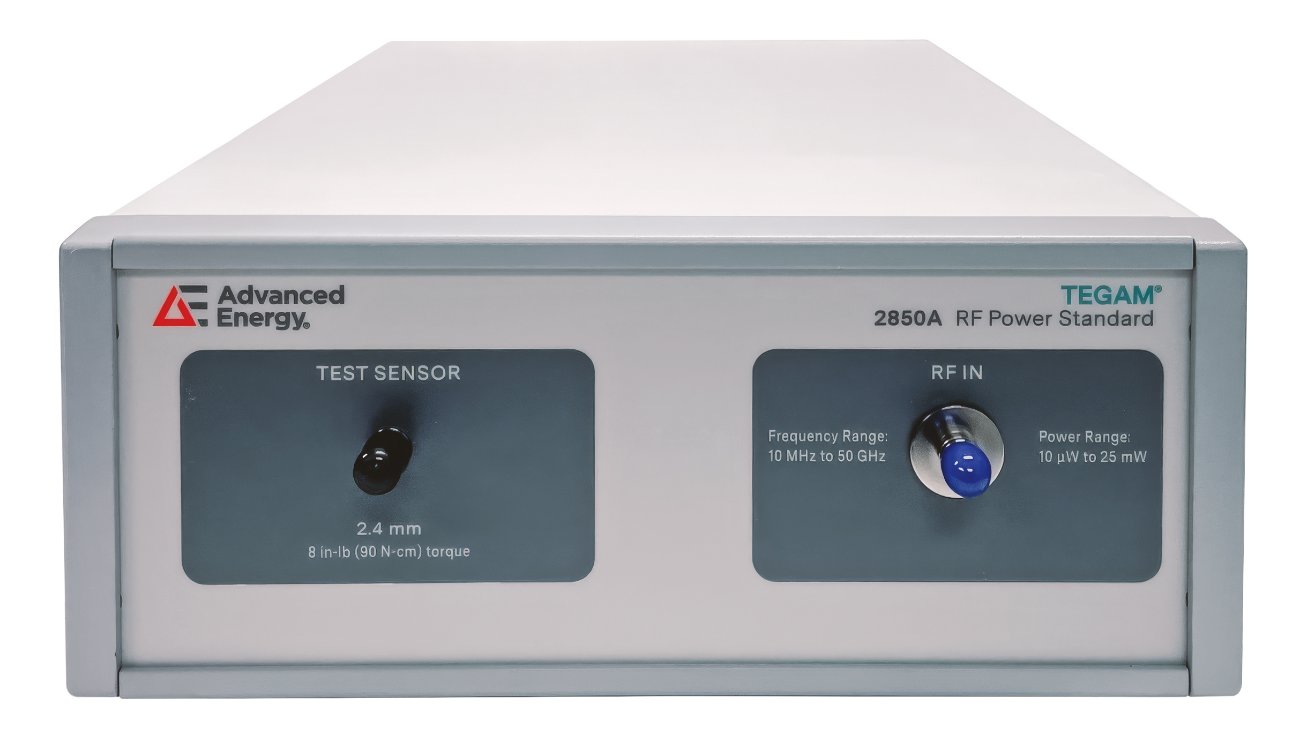

2850A RF Power Standard - Thermoelectric

Built upon proven technologies the 2850A offers new features and advantages in a RF Power Transfer Standard. Utilizing TEGAM's well established transfer standard techniques applied to an internally referenced thermoelectric sensor, the 2850A performs faster while retaining excellent performance and accuracy.

With a USB communication port, the 2850A operates without a power meter. Utilizing PS-CAL and a PC for data collection and as a digitized power meter, you retain the benefits of making manual measurements when you want them and collecting power readings automatically when a visual power reading is not needed. Eliminating a separate power meter also means less equipment to calibrate and less space needed on the bench or in the rack.

The 2850A is EEPROM based with the calibration constants stored within the sensor, eliminating the need for separate electronic data media. Connect the 2850A to the PC, apply RF power, and read the corrected power level without applying calibration factors separately.
