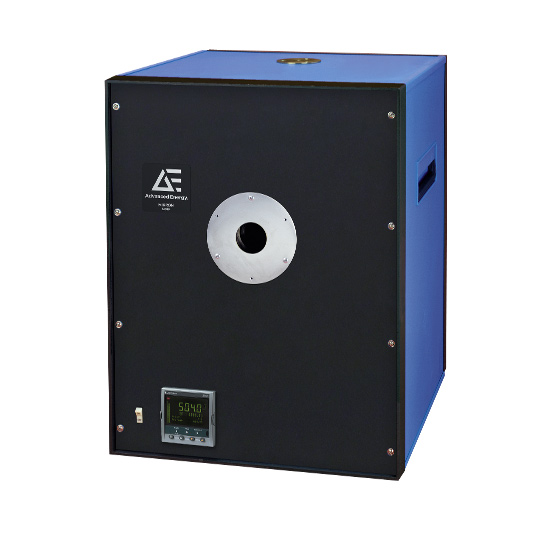

Mikron M300 Blackbody
Active
Large, High Emissivity Blackbody Calibration Source, 200 to 1150°C
The Mikron® M300 blackbody calibration source accurately delivers any temperature between 200 to 1150°C (392 to 2102°F). The M300 feautes a large, spherical cavity providing an ideal blackbody source with a 2in exit port. The M300 offers a convenient micro-processor-based, digital PID controller which maintains desired temperatures to within 1°C for accurate calibrations. The accuracy of the M300 is supported by rigourous testing, cavity burn-in processes, and radiometric calibrations.
Features
- Manufactured and tested to meet rigid quality control standards
- 2 inch exit port diamter
- Furnished with certificate of calibration traceable to NIST
- RS232 (standard) or RS485 (optional) serial communications port
- Convenient micro-processor-based, digital PID controller
- Rugged housing designed for fixed installation in laboratory or test department
Benefits
- Accurately deliver any temperature between 200 to 1150°C (392 to 2102°F)
- Meet rigid quality control standards
- Rely on fast heat-up times and high temperature stability
- Achieves a near ideal emissivity of 0.998 or better
- Achieve superior accuracy within ±0.25% of reading ±1°C
Specifications
| Measurement Uncertainty (°C): | ±0.25% of reading ±1 °C |
|---|---|
| Interface / Output (mA): | RS232, RS485 |
| Relative Humidity: | 90 |
| CE-label: | CE-Label |
| Device Output Temperature Range (°C): | 200 to 1150 °C |
| Stability: | ±0.5 °C per 8-hour period |
| Heated Emitter Shape: | 51 mm |
