Mikron M315X-HT Blackbodies
Active
Two-Piece High Temperature Blackbody Calibration Source with Large Surface Area, 30 to 600°C

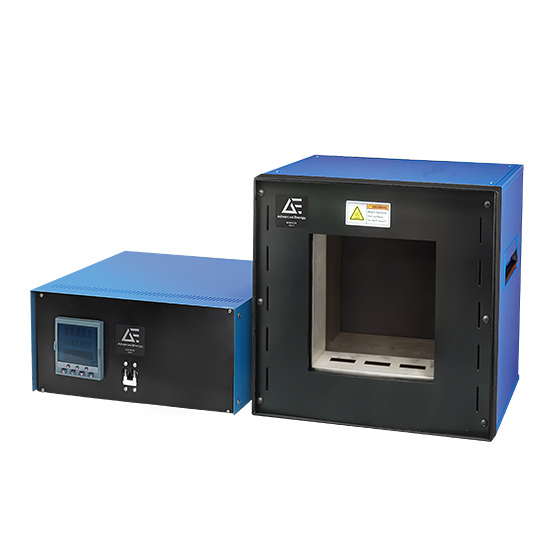

The Mikron® M315X-HT blackbody calibration sources meet the exacting calibration requirments of infrared focal plane array detectors, thermal imaging cameras, other imaging systems where higher temperatures are required. The M315X-HT blackbody sources are resistively heated by precision heating elements to provide uniform temperature distributions. The two-piece system is comprised of the controller module and a separate enclosure for the emitter source. Emitter source temperature control is carried out by a precision digital PID controller, mounted in a 7 in (180 mm) high 19 in rack mount enclosure.
Features
- High emissivity with unchallenged stability and uniformity
- Uniform temperature distribution with precision heating elements
- Furnished with a certificate of calibration traceable to NIST
- RS232 (standard) or RS485 serial communication
- Stable RTD ensures long-term temperature stability of the system
Benefits
- Select from four aperture sizes from 4 x 4 in to 12 x 12 in
- Calibrate and verify the output signals of pyrometers, thermal imagers, etc.
- Achieve high accuracy and repeatability
- Control emitter source temperature with a precision digital PID controller
Specifications
| Measurement Uncertainty (°C): | 1 ±1 °C @ T < 100 °C to ±1.3°C @ T = 400 °C @ 8 to 14 µm |
|---|---|
| Interface / Output (mA): | RS232, RS485 |
| Relative Humidity: | 90 |
| CE-label: | CE-Label |
| Device Output Temperature Range (°C): | 5 to 400 °C |
| Stability: | ±0.1 °C per 8-hour period if in still air environment |
| Heated Emitter Shape: | Multiple options available. Please refer to Datasheet. |
