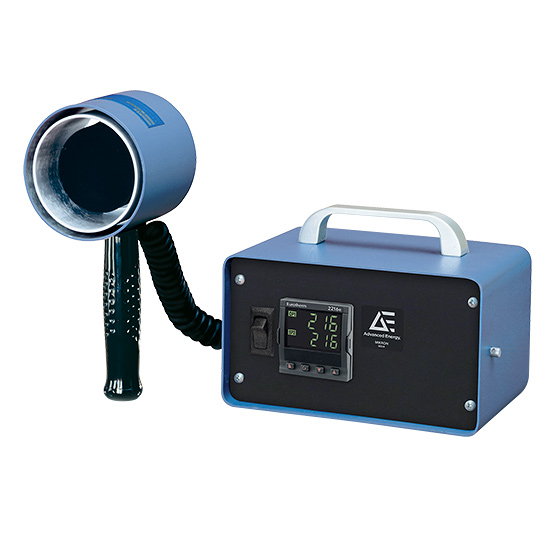

Mikron M316 Blackbodies
Active
Ultra-Portable, Low Temperature Blackbody Calibration Sources, Ambient +5 to 300°C
The Mikron® M316 covers a temperature range from ambient +5 to 300°C (572°F), with an accuracy of ±0.5% of reading ±1°C. The M316 calibration source is designed for portability, and weighs only 0.9 kg (2.0 lb). The M316 connects to a controller with a flexible cable and a portable size allows measurments to be easily read without distubring sensors or fixturing.
Features
- High effective emissivity 1.00 at 8 to 14 µm
- Large aperture (2.25 in diameter)
- Excellent stability ±0.25°C
- Fast slew rate (heat-up time)
- Furnished with a certificate of calibration traceable to NIST
Benefits
- Rapid heat-up times and high-temperature stability
- Maximum portability and flexibility
- High accuracy and resolution
Specifications
| Measurement Uncertainty (°C): | ±0.5% of reading ±1 °C |
|---|---|
| Interface / Output (mA): | RS232, RS485 |
| Relative Humidity: | 90 |
| Device Output Temperature Range (°C): | Ambient 5 to 300 °C |
| Stability: | ±0.5 °C per 8-hour period |
| Heated Emitter Shape: | 57 mm |
