Mikron M335 Blackbodies
Active
High-Temperature, Fast Heat-Up, Compact Blackbody Calibration Source, 300 to 1500°C

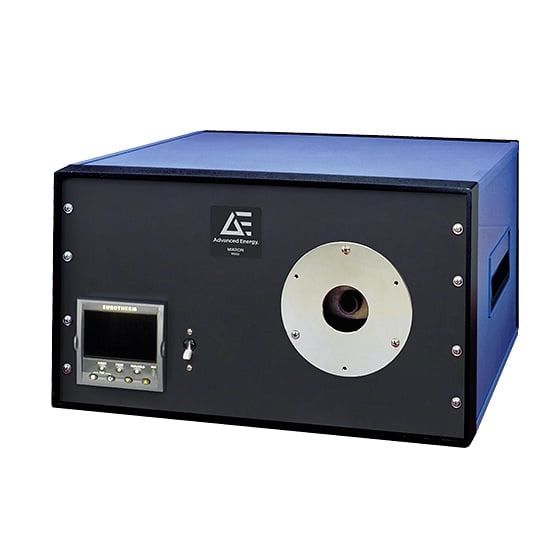

The Mikron® M335 blackbody calibration source is a general purpose, high temperature blackbody. The M335 provides rapid heat-up time at only 30 minutes to 1200°C. A self-tuning digital PID controller with adjustable set points maintains temperature to within 1°C. An internal fan keeps the cabinet surface at a safe temperature. THe M335 is ideal where space is limited but higher temperatures are required. The M335 cavity yields an effective emissivity of 1.0 from 0.6 to 1.8 µm over a temperature range of 300 to 1500°C with an aperture of 16.5 mm (0.65 in).
Features
- Compact, convenient bench unit
- Fast slew rate (heat-up time)
- Manufactured and tested to meet rigid quality control standards
- Furnished with certificate of calibration traceable to NIST
- RS232 (standard) or RS485 serial communication output (optional)
Benefits
- Take advantage of very quick heat-up times—only 30 minutes to reach 1200°C
- Utlize the self-tuning feature of your source using a digital PID controller
- Meet rigid quality control standards
- Keep your cabinet surface a safe temperature
- Achieve significant weight and size reduction, ideal when space is limited
Specifications
| Measurement Uncertainty (°C): | ±0.4% of reading ±1 °C |
|---|---|
| Interface / Output (mA): | RS232, RS485 |
| Relative Humidity: | 90 |
| CE-label: | CE-Label |
| Device Output Temperature Range (°C): | 300 to 1500 °C |
| Stability: | 1 °C per 8-hour period |
| Heated Emitter Shape: | 16.5 mm |
