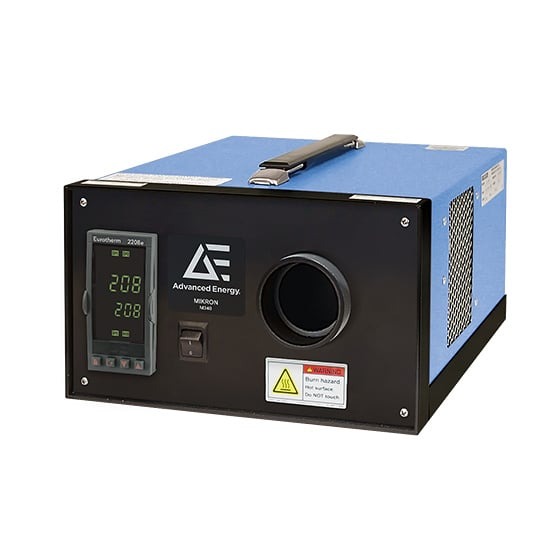

Mikron M340 Blackbodies
Active
Portable, Sub-Zero Temperature Blackbody Calibration Source, -20 to 150°C
The compact and easy-to-use Mikron® M340 is a portable blackbody calibration source for sub-zero to 150°C temperatures and features a 0.1° resolution. The M340 utilizes thermoelectric heating and cooling mechanisms and has a 10-minute, high-temperature stabilization time. The M340 source temperature is closely controlled by a self-tuning PID controller with digital display.
Features
- High emissivity
- Large aperture (2 in diameter)
- High stability ±0.1°C
- Very fast slew rates
- Furnished with a calibration certificate traceable to NIST
Benefits
- Ensure high uniformity
- Gain maximum portability and flexibility
- Achieve exceptional accuracy
- Guarantee fast heat-up times
- Easily operate
Specifications
| Measurement Uncertainty (°C): | ±1 °C @ 8 to 14 µm |
|---|---|
| Relative Humidity: | 90 |
| CE-label: | CE-Label |
| Device Output Temperature Range (°C): | -20 to 150 °C |
| Stability: | ±0.1 °C per 8-hour period |
| Heated Emitter Shape: | 51 mm |
Technical Documentation
