Mikron M360 Blackbodies
Active

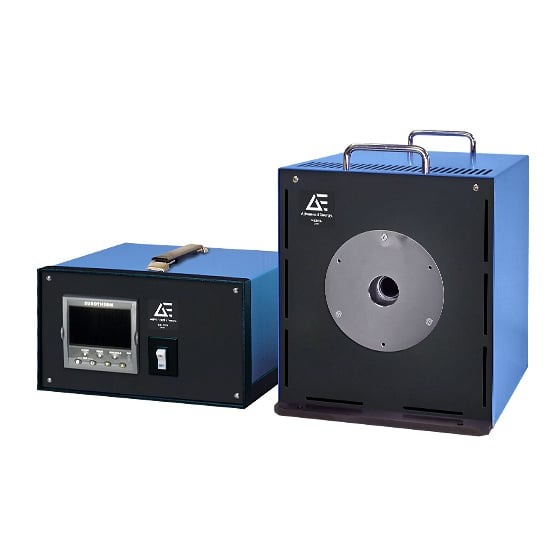

Blackbody Calibration Source with Two Portable Modules, 50 to 1100°C
The Mikron® M360 blackbody calibration source offers a separate controller module allowing the source to be positioned in a location remote from the controller (e.g. environmental test chamber). Aditionally, the M360 can be used in tests that involve long path lengths. Each M360 module is fitted with a carrying handle and can be comfortably carried to manufacturing plants or field research locations. In applications that require specific radiating aperture or field of view verfication of radiometers or infrared thermometers, an optional precision machined aperture wheel is available.
Features
- Separate modules for source and the controller
- Furnished with certificate of calibration traceable to NIST
- RS232 (standard) or RS485 (optional) serial communications port
- High accuracy ±0.2% of reading ±1°C
- Optional aperture wheel
Benefits
- Easily move, weighs only 17.8 kg (39.3 lb)
- Position source remote from controller
- Meet rigid quality control standards
- Use in tests that involve long path lengths
Specifications
| Measurement Uncertainty (°C): | ±0.2% of reading ±1 °C |
|---|---|
| Interface / Output (mA): | RS232, RS485 |
| Relative Humidity: | 90 |
| CE-label: | CE-Label |
| Device Output Temperature Range (°C): | 50 to 1100 °C |
| Stability: | 1 °C per 8-hour period |
| Heated Emitter Shape: | 25 mm |
