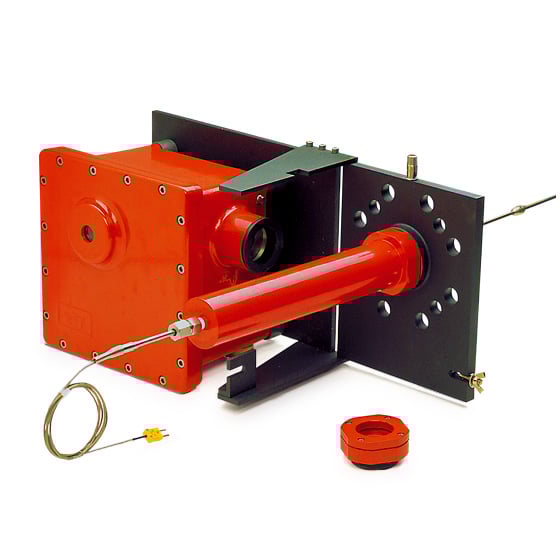

E²T Pulsar Sulfur Recovery Unit Pyrometer

Active

Infrared Thermometry for Sulfur Reactors and High Temperature Furnaces

Contact Sales Datasheet

The E²T Pulsar^TM 4 Advanced measures two wavelengths for continuous and instantaneous measurement of refractory temperature (RT), gas temperature (GT) and integrated temperature (FF), reporting both readings simultaneously in one instrument. The E²T Pulsar^TM 4 is a single channel option for direct replacement of older Pulsar II models. The innovative Advanced Energy Smart FMA Flame Measurement Algorithm allows for accurate real-time flame transparency compensation and correction. Applying the flame transparency calculation with FMA removes the flame transparency errors due to the gas (flame) temperature, providing the highest accuracy in process temperatures.

Features

Explosion-proof certification
- IECEx, ATEX II 2G EXd IIB+H2 T4,
- FM (US and CSA) Class I, Div I, Group B, C & D, T4
- regional certification like UKEx, KOSA, CCOE, INMETRO or TP/TC
Integrated power supply, capable of operating with 24 VDC /120/230 VAC
HART Rev 7 protocol (Advanced version only) and RS485 interface
SmartFMA for highest GT and RT measurment

Benefits

Prevent damage to the furnace refractory with high temperature alarms
Install a single system with two independent infrared filtered detectors for gas (GT) and refractory (RT) measurements
Quickly react to control the furnace process temperatures with instant readings
Gain higher operational safety with accurate refractory measurement and high temperature alarms
Use Smart FMA to remove flame transparency errors that typical pyrometers experience (Advanced version only)

Specifications

Operational temperature range (°C):	350 to 2000
Measurement Uncertainty (°C):	3°C + 1 digit
Ambient Temperature (°C):	-40 to 60
Focus Range (mm/mtr):	500 to Infinity
Ex-Rating:	IECEx db +H2 IIB T4
Enclosure Material:	316L stainless steel

Technical Documentation

Title	Type
Temperature Measurement for Petrochemical Brochure (26 MB)	Brochure
石化测温 (26 MB)	Brochure
E2T Pulsar 4 and Pulsar 4 Advanced Data Sheet (4 MB)	Data Sheet
PULSAR 4 Datasheet Russian language (644 KB)	Data Sheet
Pulsar 4 Manual Rev J English (4 MB)	Manual

Technical Videos

Infrared Thermometry for Sulfur Reactors - Advanced Energy's E2T Pulsar 4

Jul 28, 2021

Advanced Energy's E2T Pulsar 4 instruments provide infrared thermometry for sulfur reactors and other high-temperature furnaces in temperatures between 350 to 2000°C. The E2T Pulsar 4 is a single channel model for gas or refractory measurement and the E2T Pulsar 4 Advanced is designed to measure two wavelengths for continuous and instantaneous measurement of refractory temperature and gas temperature simultaneously.
