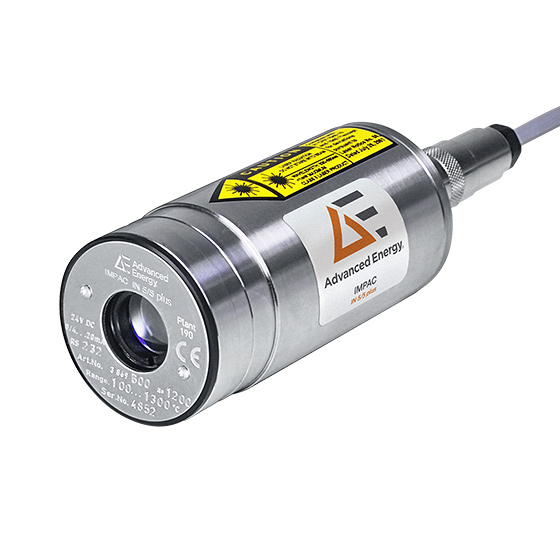

Impac IN 5/5 plus Series Pyrometers
Digital pyrometer with fixed optics for non-contact temperature measurement of glass and quartz glass surfaces. Temperature ranges between 100 and 2500 °C.
Features
- With analog output 0 or 4 to 20 mA, digital interface RS232 or RS485
- Laser targeting light sighting system
- High accuracy due to digital linearization of the output
- Small spot sizes, min. 1.1 mm
- Adjustable exposure time
- Compact housing
Benefits
- Adjust emissivity and exposure time directly in the instrument
- Remotely adjust instrument parameters and configure a temperature subrange
- Utilize various optics available for optimal matching of the instrument to the application
- Precisely align the pyrometer to the measuring object with a laser target light
- Operate in rough industrial environments
- Digitally store and process temperature data
Specifications
| Operational temperature range (°C): | 100 and 2500 °C (4 ranges in between) |
|---|---|
| Spectral Range (µm): | 5.14 |
| Measurement Uncertainty (°C): | From 0.6% oR or 2 °C |
| Optics (mm): | Fixed optics |
| FOV (minimum spot size) (mmm): | Min. 100:1 (1.1) |
| Alignment / Sighting: | Laser targeting |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 80 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technical Documentation
Compare

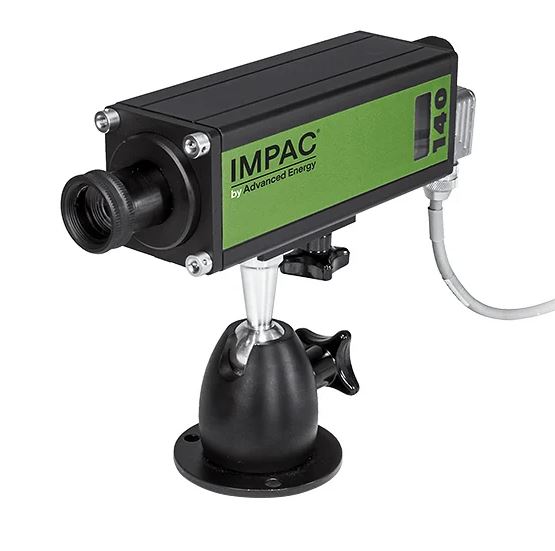

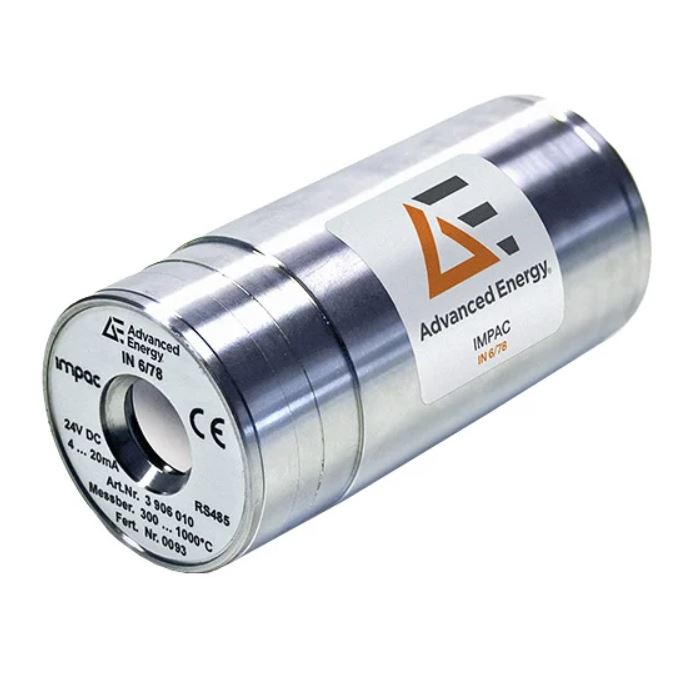

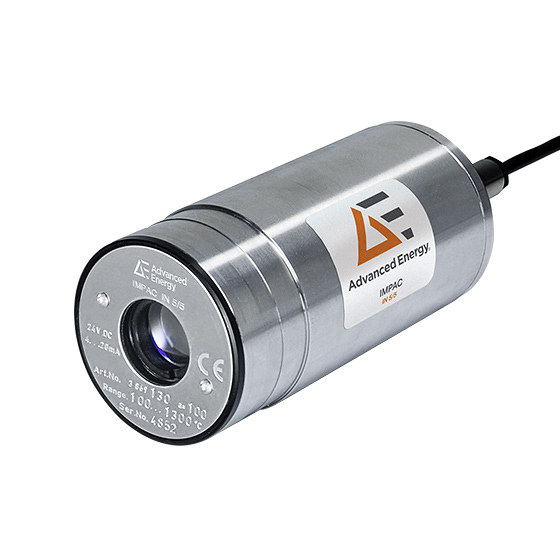

| Model | Impac IN 5/5 plus Series | Impac IN 5/5 Series | Impac IN 140/5 Series | Impac IN 6/78 Series Pyrometers | Impac 600 Series |
|---|---|---|---|---|---|
| Spectral Range (µm) | 5.14 | 5.14 | 5.14 | 7.8 | 0.7 and 14 (5 ranges in between) |
| Measurement Uncertainty (°C) | From 0.6% oR or 2 °C | From 0.6% oR or 2 °C | From 0.6% oR or 2 °C | 0.7% oR or 3.5 °C | From 0.5% oR or 0.8 °C |
| Optics (mm) | Fixed optics | Fixed optics | Fixed optics, Focusable optics | Fixed optics | Fixed optics |
| FOV (minimum spot size) (mmm) | Min. 100:1 (1.1) | 50:1 (2.5) | Min 180:1 (0.9) | Min 75:1 (5) | Min. 70:1 |
| Alignment / Sighting | Laser targeting | None | Laser targeting or through lens sighting | None | None |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 80 ms | Multiple specifications. Please refer to Datasheet. | Multiple specifications. Please refer to Datasheet. | Multiple specifications. Please refer to Datasheet. | Multiple specifications. Please refer to Datasheet. |
| Display | Illuminated LC display for temperature indication or parameter settings | Color LCD, 262,000 colors (optional) |
