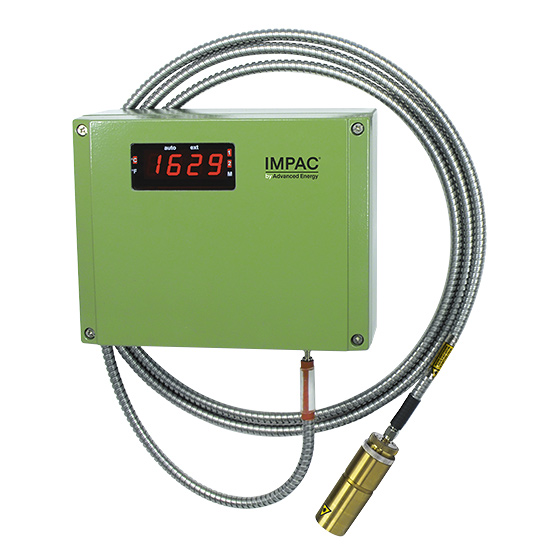

Impac 12-LO Series Pyrometers
Digital Ratio-Pyrometers with fiber optics for measurements on metals, ceramics, graphite, pouring streams, etc. Different optical heads available. Temperature ranges between 300 and 3500 °C.
The Impac® ISR 12-LO and IGAR 12-LO pyrometers leverage a two-color method by using two adjacent wavelengths for calculating temperature. This approach allows for temperature measurements to be independent of object emissivity over wide ranges and even when objects are smaller than the spot size. Versatility is further enhanced with an optional one-color mode that operates similarly to conventional pyrometers, and a dedicated metal mode for measurements on metals and alloys with unknown K-factors (emissivity slopes). A specialized variant, the Impac ISR 12-LO/GS series, is designed as a foundry system for pouring stream measurement. Suitable for automatic or semi-automatic pouring machines, it consistently displays the temperature after each pouring process.
Features
- Switchable digital interface RS232/RS485
- Built-in laster targeting light
- Ratio (two-color), one-color, or metal modes (switchable)
- Lens contamination control system
- Test current output for diagnostics
- Measurements are unaffected by dust and other contaminants in the field of view or by dirty viewing windows
Benefits
- Achieve extremely high accuracy and repeatability
- Detect lens contamination quickly
- Adjust parameters at the instrument (ISR 12-LO and IGAR 12-LO only)
- Accurately measure cast iron pouring streams (ISR 12-LO/GS only)
- Automatically record pouring temperature (ISR 12-LO/GS only)
Specifications
| Operational temperature range (°C): | 300 and 3500 °C (14 ranges in between) |
|---|---|
| Spectral Range (µm): | 0.8 and 1.65 (6 ranges in between) |
| Measurement Uncertainty (°C): | From 0.4% oR + 1 °C |
| Optics (mm): | Fixed optics, Focusable optics |
| FOV (minimum spot size) (mmm): | Min 200:1 (0.45) |
| Alignment / Sighting: | Laser targeting |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 2 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
