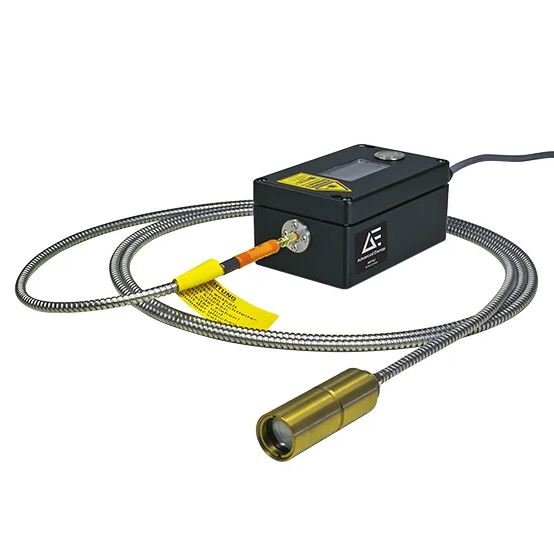

Impac 50-LO plus Series Pyrometers
Fast digital pyrometers with fiber optics for measurements on metals, ceramic, graphite, etc. Different optical heads available. Temperature ranges between 250 and 3500 °C.
The Impac®50-LO plus and IGA 50-LO plus series comprise a range of highly precise, infrared measuring instruments, each equipped with fiber optics for non-contact temperature measurement on diverse materials like metals, ceramics, and graphite, within temperature ranges of 250 to 3500 °C. Included in this series are specialized versions, the IS 50/055-LO plus and IS 50/067-LO plus, which are characterized by their extremely short wavelengths. In addition, the IS 50-Al-LO plus has been specifically designed to measure temperatures on aluminum parts and profiles, demonstrating the series' adaptability to a wide range of applications.
Features
- Switchable digital interface RS232/RS485
- Adjustable settings via the integrated keypad or the interface
- Optical fiber for high ambient temperatures up to 250 °C, unaffected by electromagnetic interferences
- Laser-targeting light
- Test current output
Benefits
- Digitally display and store temperature readings
- Facilitate the measurement of the fastest heating processes
- Take advantage of very short response time
- Utilize three different types of optical heads for different measuring distances
- Enable the exact alignment onto the measuring object
Specifications
| Operational temperature range (°C): | 250 and 3500 °C (18 ranges in between) |
|---|---|
| Spectral Range (µm): | 0.55 and 1.8 (6 ranges in between) |
| Measurement Uncertainty (°C): | From 03% oR + 1 °C |
| Optics (mm): | Fixed optics, Focusable optics |
| FOV (minimum spot size) (mmm): | Min 200:1 (0.45) |
| Alignment / Sighting: | Laser targeting |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 1 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technical Documentation
