Impac 8 Series Pyrometers

Active

Fast and robust portable digital pyrometers for measurements on metals, pouring streams and ceramics. Temperature ranges between 250 and 2500 °C.

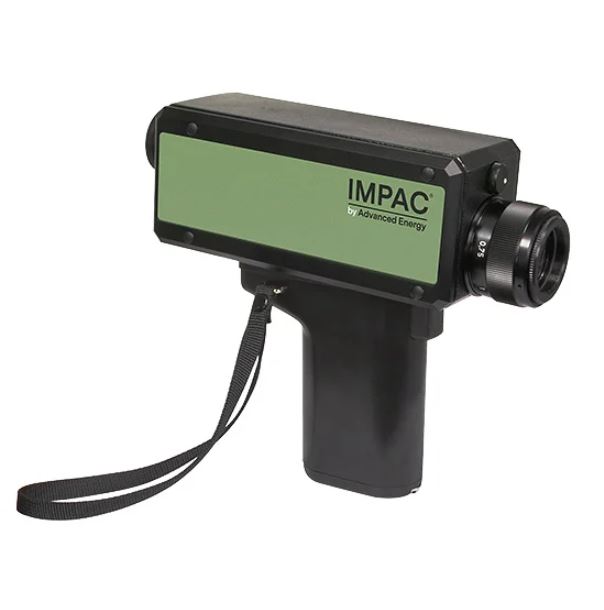

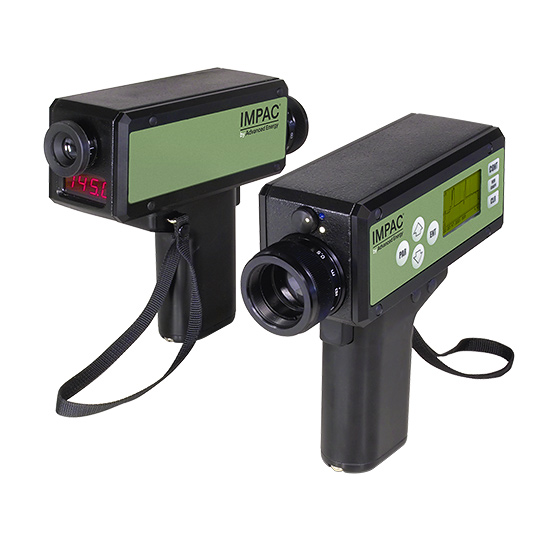

Impac® series 8 pro pyrometers are top-tier, battery-powered, portable devices for non-contact temperature measurement. Leveraging the power of full digital processing, they offer broad temperature ranges and heightened accuracy, enabling immediate on-site analysis of measurement results. The Impac IS 8 pro, designed for high temperatures, operates within two temperature ranges, from 600 to 2500 °C. The Impac IGA 8 pro, on the other hand, is ideal for medium temperatures with a range from 250 to 1600 °C. Additionally, the Impac IS 8-GS pro has been specifically engineered for use in foundries.

Features

  • Very robust aluminum die-cast housing for use in harsh environments
  • Focusable precision optics for adjusting to the smallest spot sizes

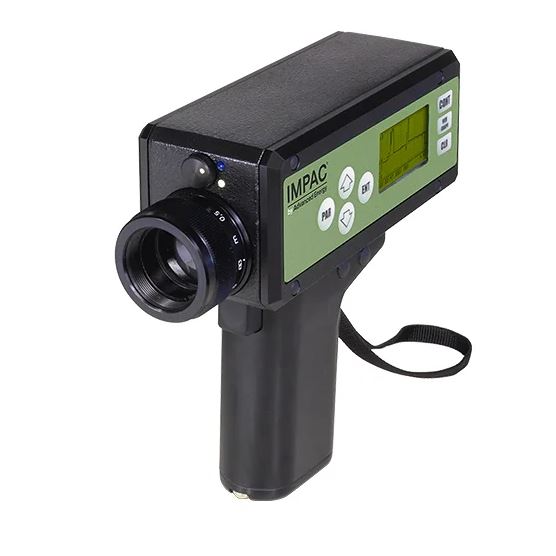

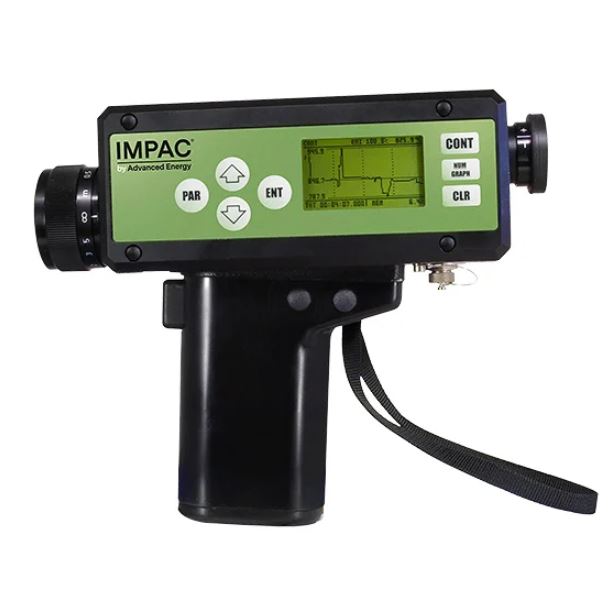

  • Temperature display on the housing, in the viewfinder and on the multifunctional display
  • Integrated maximum value storage to determine the peak value achieved during a measuring series
  • USB interface for using the optional analyzing software PortaWin

Benefits

  • Use daily in rough industrial conditions
  • Easily adjust to small spot sizes
  • Enable short response times (1 ms) for exact measurement of fast-moving objects
  • Store large amounts of measuring data for subsequent analysis

Specifications

Operational temperature range (°C): 250 and 2500 °C (5 ranges in between)
Spectral Range (µm): 0.55 and 1.8 (3 ranges in between)
Measurement Uncertainty (°C): 0.4% oR + 1 °C
Optics (mm): Focusable optics
FOV (minimum spot size) (mmm): Min 500:1 (1)
Alignment / Sighting: Through-lens sighting
Interface / Output (mA): USB
Exposure Time t90 (ms): 1 ms
All Specifications Collapse Specifications

Stock Check

Model Number
Output Type Optics Alignment Response Time Min. Temperature (°C) Max. Temperature (°C) Applications Samples Buy
3 807 300 Active, Contact Us USB Focusable Viewfinder 1 600 1800 Metal / Ceramics / Graphite Contact Us Buy
3 807 310 Active, Contact Us USB Focusable Viewfinder 1 750 2500 Metal / Ceramics / Graphite Contact Us Buy
3 807 350 Active, Contact Us USB Focusable Viewfinder 1 250 1600 Metal / Ceramics / Graphite Contact Us Buy
3 807 380 Active, Contact Us USB Focusable Viewfinder 500 1000 2000 Pouring Streams Contact Us Buy
3 807 410 Active, Contact Us USB Focusable Viewfinder 1 280 2000 Metal / Ceramics / Graphite Contact Us Buy

Accessories

Impac Other Electrical

Other Electrical Accessories Compatible With Impac Pyrometers

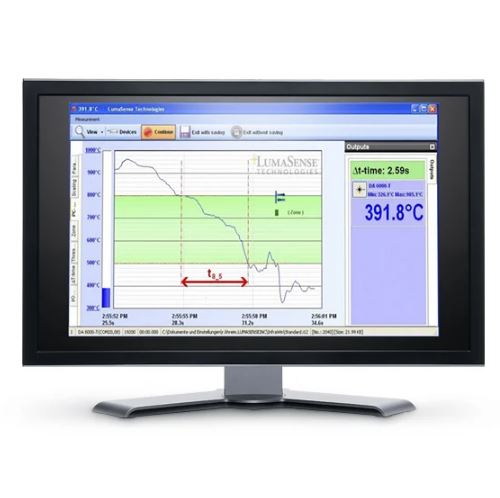

Impac PortaWin Software

Portable Pyrometer Analyzing Software (Series 8 and Series 15) Supplementary downloads only; contact sales for software
