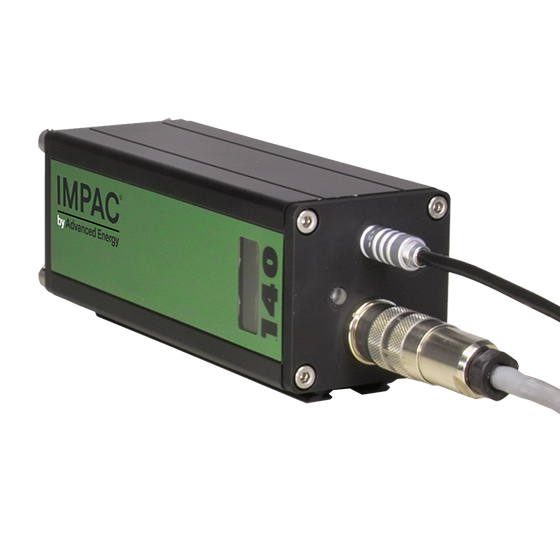

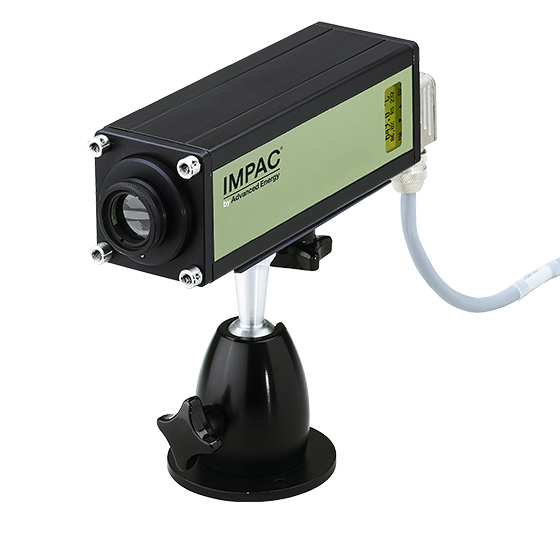

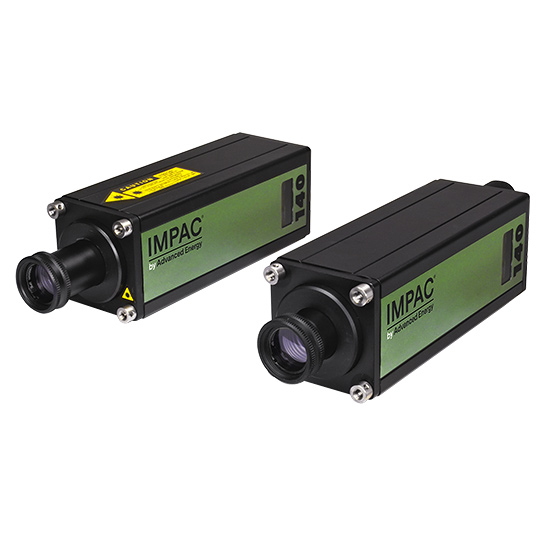

Impac IGA 140/23 Series Pyrometers
Fast digital pyrometer with focusable optics and integrated display for measurements on metals, ceramics, graphite, etc. Temperature ranges between 50 and 1800 °C.
The Impac® IGA 140/23 series encompasses a collection of highly precise digital pyrometers designed for non-contact temperature measurement on materials like metals, ceramics, graphite and more, within the temperature spectrum of 50 to 1800 °C. It offers a choice among three different focusable optics, each promising extremely small spot sizes. Adding to their utility, these pyrometers come with two distinct interface types. The -PB models are equipped with a Profibus-DP interface while the -PN models possess a Profinet interface, facilitating effortless integration into pre-existing Profibus and Profinet systems, respectively. To cater to a range of requirements, the standard delivery of the GSD file (for Profibus) and GSDML (for Profinet) provides five diverse module configurations to choose from.
Features
- Standard switchable digital RS232/RS485 interface with optional Profinet or Profibus interfaces
- Adjustable settings via the instrument, integrated keypad, or via the interface

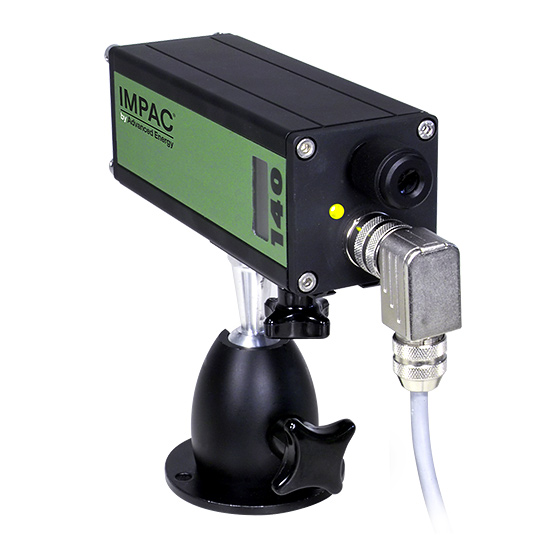

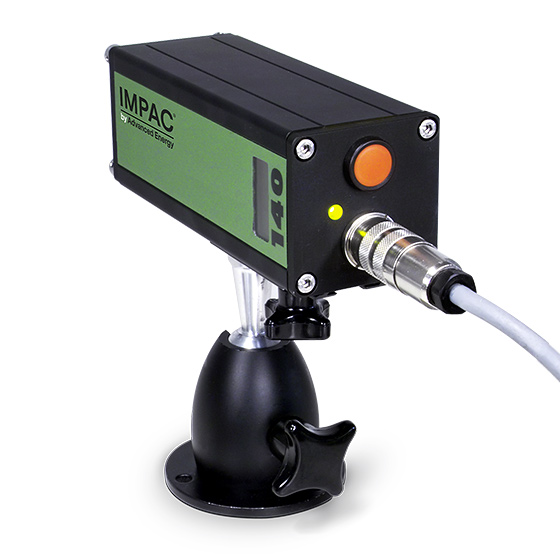

- Laser target light or through lens viewfinder

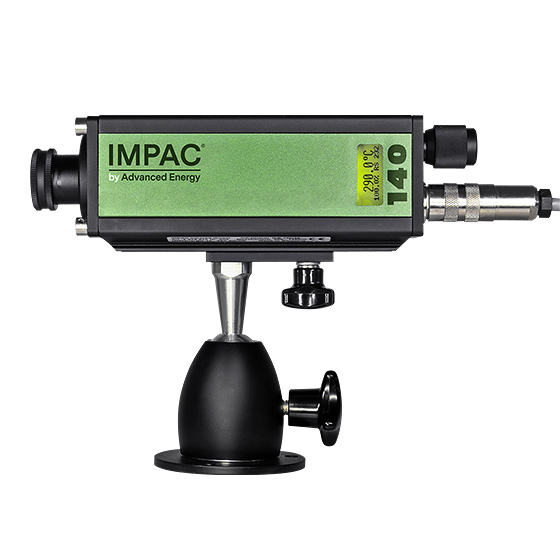

- Built-in digital display with temperature indication
Benefits
- Change optics without recalibration of the pyrometer
- Set any temperature sub-range within the full temperature range
- Achieve accurate alignment and safe mounting with the housing with precision mounting rail
- Connect to existing Profibus and Profinet systems with optional interfaces
Specifications
| Operational temperature range (°C): | 50 and 1800 °C (4 ranges in between) |
|---|---|
| Spectral Range (µm): | 2.0 to 2.6 |
| Measurement Uncertainty (°C): | From 2 °C |
| Optics (mm): | Focusable optics |
| FOV (minimum spot size) (mmm): | Min 340:1 (0.5) |
| Alignment / Sighting: | Laser targeting or through lens sighting |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | <1.5 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Temperature Linescan Systems
Rotation/Scanning Attachments and Built-in Scanner
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technical Documentation
Technical Videos
Digital, Infrared Thermometer - Advanced Energy's Impac IGA 140/23 Series
Compare
| Model | Impac IGA 140/23 Series | Impac IGA 6/23 Series | Impac IGA 320/23 Series | Impac 600 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 2.0 to 2.6 | 2 to 2.6 | 2 to 2.6 | 0.7 and 14 (5 ranges in between) |
| Measurement Uncertainty (°C) | From 2 °C | From 0.3% oR + 2 °C | From 2 °C | From 0.5% oR or 0.8 °C |
| Optics (mm) | Focusable optics | Focusable optics | Fixed optics | Fixed optics |
| FOV (minimum spot size) (mmm) | Min 340:1 (0.5) | Min 350:1 (0.6) | Min 200:1 (0.25) | Min. 70:1 |
| Alignment / Sighting | Laser targeting or through lens sighting | Built-in laser aiming light, through-lens sighting, or color TV camera | LED targeting light | None |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | <1.5 ms | 0.5 ms | 2 ms | Multiple specifications. Please refer to Datasheet. |
| Display | Illuminated LC display for temperature indication or parameter settings | LED, 4 digit matrix, 5 mm high temperature signal or measuring distance | Color LCD, 262,000 colors (optional) |
