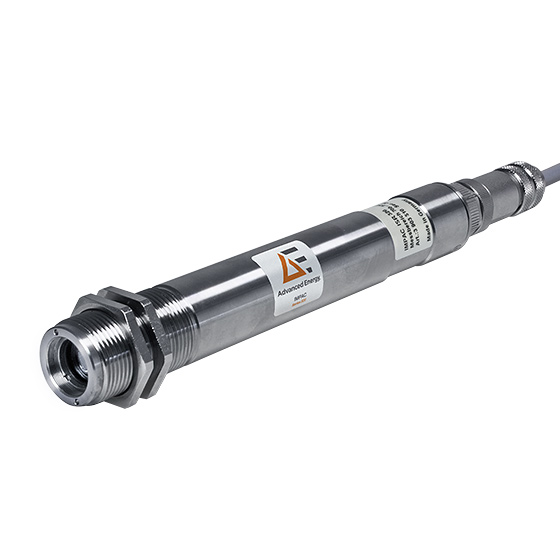

Impac IGA 320/23 Series Pyrometers
Compact digital pyrometers with fixed optics and LED targeting light for non-contact temperature measurements on metals, ceramics, graphite, etc. Temperature ranges between 75 and 1800 °C.
The Impac IGA 320/23, with its short-wavelength infrared thermometers, facilitates non-contact temperature measurement of metallic surfaces, graphite, or ceramics within temperature ranges of 75 to 1800 °C. Thanks to the integrated digital signal processing, these devices ensure exceptional accuracy across vast temperature ranges. Their compact design enables seamless integration into compact production machines, while their robust construction guarantees reliability, even under challenging industrial conditions. Additionally, these instruments are equipped with an array of optics, ensuring precise measurements on smaller spot sizes.
Features
- Small housing dimensions for easy installation in confined spaces
- RS485 interface for connection to a PC in long transmission networks
- Analog output adjustable to 0 or 4 to 20 mA for connection to standard analyzing instruments
- Internal digital signal processing for high accuracy and long temperature ranges
- High quality optics for detection of small measuring objects
- Built-in LED targeting light for easy alignment to the measuring object
Benefits
- Easily integrate into compact production machines
- Use in harsh environments
- Enable precise alignment via the LED targeting light
- Store measurement values
- Easily set up all instrument parameters
Specifications
| Operational temperature range (°C): | 75 and 1800°C (4 ranges in between) |
|---|---|
| Spectral Range (µm): | 2 to 2.6 |
| Measurement Uncertainty (°C): | From 2 °C |
| Optics (mm): | Fixed optics |
| FOV (minimum spot size) (mmm): | Min 200:1 (0.25) |
| Alignment / Sighting: | LED targeting light |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 2 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technical Documentation
Compare
| Model | Impac IGA 320/23 Series | Impac IGA 6/23 Series | Impac IGA 140/23 Series | Impac 600 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 2 to 2.6 | 2 to 2.6 | 2.0 to 2.6 | 0.7 and 14 (5 ranges in between) |
| Measurement Uncertainty (°C) | From 2 °C | From 0.3% oR + 2 °C | From 2 °C | From 0.5% oR or 0.8 °C |
| Optics (mm) | Fixed optics | Focusable optics | Focusable optics | Fixed optics |
| FOV (minimum spot size) (mmm) | Min 200:1 (0.25) | Min 350:1 (0.6) | Min 340:1 (0.5) | Min. 70:1 |
| Alignment / Sighting | LED targeting light | Built-in laser aiming light, through-lens sighting, or color TV camera | Laser targeting or through lens sighting | None |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 2 ms | 0.5 ms | <1.5 ms | Multiple specifications. Please refer to Datasheet. |
| Display | LED, 4 digit matrix, 5 mm high temperature signal or measuring distance | Illuminated LC display for temperature indication or parameter settings | Color LCD, 262,000 colors (optional) |
