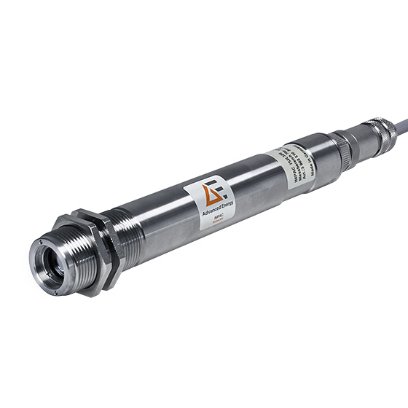

Impac ISR 320 Series Pyrometers
Compact, digital ratio pyrometer with fixed optics and LED targeting light for non-contact temperature measurements on metals, ceramics, graphite, etc. Temperature ranges between 700 and 2500 °C.
Features
- Small housing dimensions for easy installation in confined spaces
- Fast 10 ms response time for dynamic processes
- RS485 interface for long transmission networks for connection to a PC via USB converter or machine control (PLC)
- Analog output adjustable to 0 to 20 mA or 4 to 20 mA for connection of standard analyzing instruments
- Internal digital signal processing for high accuracy
- Built-in LED targeting light for easy alignment to the measuring object
- Thermal intensity alignment using intensity indicator LEDs at the backside of the instrument
- Integrated "Dirty Window" warning
Benefits
- Use like a conventional pyrometer when needed by switching to the one-color mode
- Measure objects smaller than the spot size
- Store measurement values
- Easily set up pyrometer parameters
- Make measurements through dirty-viewing windows
Specifications
| Operational temperature range (°C): | 700 and 2500 °C (2 ranges in between) |
|---|---|
| Spectral Range (µm): | 0.9 and 1.05 (2 ranges in between) |
| Measurement Uncertainty (°C): | From 0.5% oR + 1 °C |
| Optics (mm): | Fixed optics |
| FOV (minimum spot size) (mmm): | Min 100:1 (3) |
| Alignment / Sighting: | Built-in LED targeting light and LEDs for intensity alignment |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 10 ms |
Accessories
Impac InfraWin Software
Pyrometer Measurement and Evaluation Software
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac MultiTempLogger
Multi-Channel Measuring Data Logging Software Supplementary downloads only; contact sales for software
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units
Impac PI 6000 Controller
Extremely Fast, Digital, and Programmable PID Controller
Impac DA 6000-N
LED digital display with RS232 or RS485 interface for digital pyrometers
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Impac TQCS Software
Temperature Quality Control System for Recording and Archiving (supplementary downloads only; contact sales for software)
Technical Documentation
Compare
| Model | Impac ISR 320 Series | Impac IGAR 6 Series | Impac IGAR 320 Series | Impac ISR 6 Series |
|---|---|---|---|---|
| Spectral Range (µm) | 0.9 and 1.05 (2 ranges in between) | 1.5 and 2.5 (2 ranges in between) | 1.5 and 2.5 (2 ranges in between) | 0.9 and 1.05 (2 ranges in between) |
| Measurement Uncertainty (°C) | From 0.5% oR + 1 °C | From 0.4% oR + 2 °C | 0.6% oR + 2 °C | From 0.3% oR + 2 °C |
| Optics (mm) | Fixed optics | Focusable optics | Fixed optics | Focusable optics |
| FOV (minimum spot size) (mmm) | Min 100:1 (3) | Min 100:1 (2.1) | Min 100:1 (3) | Min 350:1 (0.6) |
| Alignment / Sighting | Built-in LED targeting light and LEDs for intensity alignment | Built-in laser aiming light, through-lens sighting, or color TV camera | Built-in LED targeting light and LEDs for intensity alignment | Built-in laser aiming light, through-lens sighting, or color TV camera |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 10 ms | 2 ms | 10 ms | 2 ms |
| Display | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | LED, 4 digit matrix, 5 mm high for 2-color or 1-color temperature signal or measuring distance | ||
| Emissivity Slope | 0.800 to 1.250 in 0.1% steps (2-color mode) | 0.600 to 2.000 in 0.1% steps (2-color mode) | 0.600 to 2.000 in 0.1% steps (2-color mode) | 0.800 to 1.200 in 0.1% steps (2-color mode) |
