Impac 300 Series Pyrometers
Small, Stationary, Two-Wire Technique Pyrometer, -20 to 600°C
Features
- Easy electrical and mechanical installation
- Very small housing dimensions
- Stainless steel housing
- Small spot sizes (distance ratio 15:1)
- Suitable for the food industry
Benefits
- Install in small, harsh industrial environments
- Use in ambient temperature up to 70°C without cooling
- Adjust emissivity between 40 to 100%
- Benefit from two-wire technique
Specifications
| Operational temperature range (°C): | -20 and 600 °C (5 ranges in between) |
|---|---|
| Spectral Range (µm): | 8 to 14 |
| Measurement Uncertainty (°C): | 1.5% of measuring range in °C |
| Optics (mm): | Fixed optics |
| FOV (minimum spot size) (mmm): | Min. 15:1 |
| Alignment / Sighting: | None |
| Interface / Output (mA): | 0/4 to 20 mA |
| Exposure Time t90 (ms): | 300 ms |
Accessories
Impac Other Electrical
Other Electrical Accessories Compatible With Impac Pyrometers
Impac DA 4000
Digital LED Display With 2-Wire Supply Voltage
Impac Mechanical Accessories
Other Mechanical Accessories Compatible With Impac Pyrometers
Impac Power Supplies
Impac Pyrometer DC and AC Power Supply Units

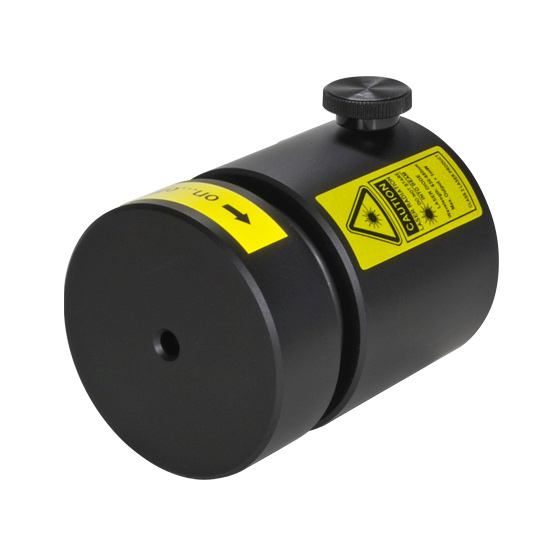

Impac Laser Targeting Light
Alignment system for Impac pyrometers IN 5 or IN 300
Impac DA 6000
Digital LED Display With 2-Wire Supply Voltage
Technical Documentation
Compare
| Model | Impac 300 Series | Impac 500 Series | Impac 600 Series | Impac IN 5 plus Series |
|---|---|---|---|---|
| Spectral Range (µm) | 8 to 14 | 8 to 14 | 0.7 and 14 (5 ranges in between) | 8 to 14 |
| Measurement Uncertainty (°C) | 1.5% of measuring range in °C | From 0.8% oR or 1 °C | From 0.5% oR or 0.8 °C | From 0.6% oR or 2 °C |
| Optics (mm) | Fixed optics | Fixed optics | Fixed optics | Fixed optics |
| FOV (minimum spot size) (mmm) | Min. 15:1 | 2:1 or 10:1 | Min. 70:1 | Min. 100:1 (1) |
| Alignment / Sighting | None | None | None | Laser targeting |
| Interface / Output (mA) | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA | 0/4 to 20 mA |
| Exposure Time t90 (ms) | 300 ms | 180 ms | Multiple specifications. Please refer to Datasheet. | 80 ms |
| Size (mm³) |
