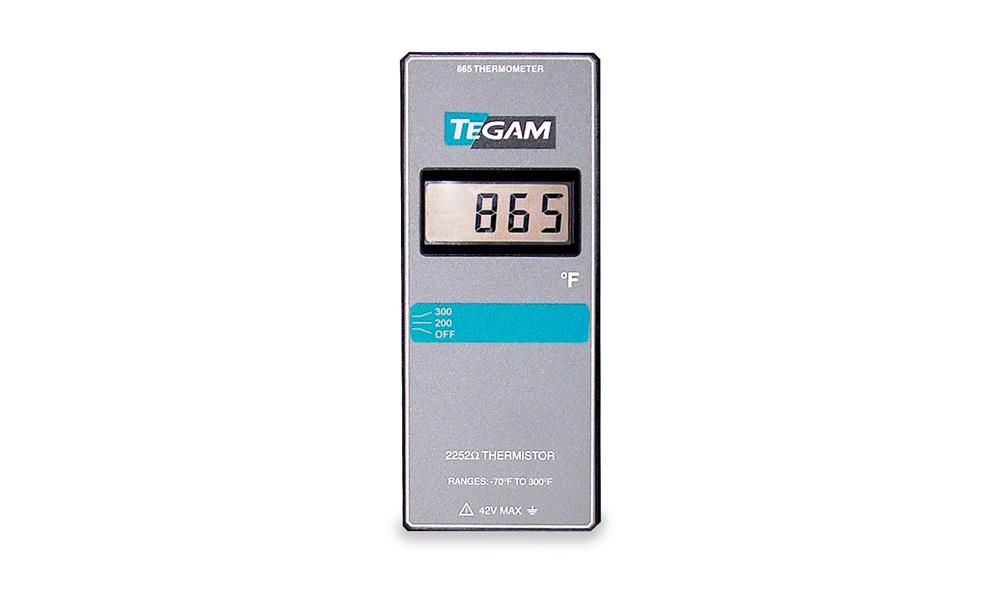

865 Thermistor Thermometer
-70 °F to 300 °F
Advanced Energy's Tegam Model 865 thermistor thermometer measure temperatures from -70 °F to 300 °F. Compatible with all YSI Series 400 probes, temperature measurement is performed with a basic accuracy of .3%. These thermometers are specially constructed with a heavy duty ABS case specifically designed for durability and resistance to contaminants such as dust and most chemicals. Model 865 reads in °F. An optional tilt stand/belt clip PN 8660, is available for field or bench top use.
Features
- Accuracy: 0.3%
- Range : -70 to 300 °F
- Resolution : 0.1°/1°
- Input Type : 2252 Ω Thermistor
- Accept three wire and four wire platinum probes
- Ideal for cryogenic and high-temperature research or industrial monitoring
- NSN: 6625-01-429-3273
- One year warranty
- Assembled in the USA
Benefits
- Compatible with all YSI Series 400 probes
- Easy operation
- Case is constructed from heavy duty ABS for enhanced durability
Specifications
| Accuracy: | ±(0.3% rdg + 1 ⁰F) |
|---|---|
| Connector Type: | Phono |
| Intrinsically Safe: | No |
| Measurement Range: | -70 to 300 ⁰F |
| No. of Inputs: | 1 |
| Operating Temperature (°C): | -70 to 300 ⁰F |
| Probes Supported: | Thermistor |
| Resolution (°C): | 1⁰ F |
