Sekidenko OR4000T Series
Active
Multi-Channel, Non-Contact Optical Fiber Temperature Pyrometer with Configurable Wavelength Range and Fixed-Emissivity Correction

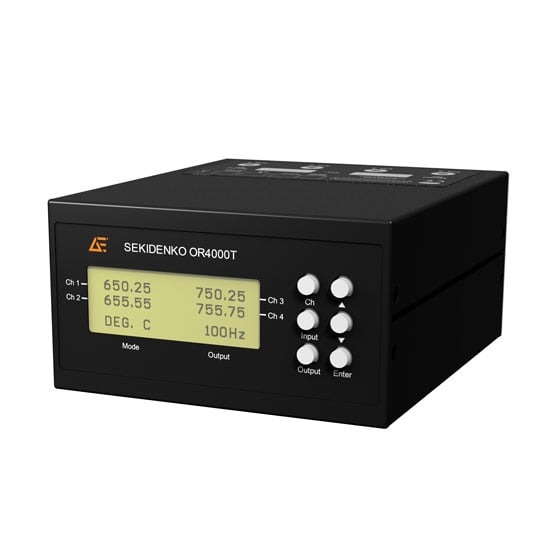

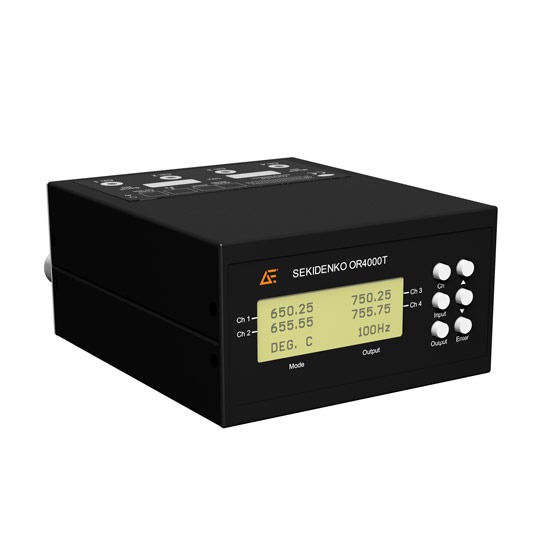

The Sekidenko OR4000T is a multi-channel, non-contact optical fiber temperature pyrometer that measures infrared energy being emitted from an object and converts it into usable temperature data (degrees °F or °C). Configure in a variety of measurement wavelengths based on target materials, process temperature ranges, and working distances from 3.9 in (100 mm) to 118.1 in (3000 mm). Available temperature ranges are: 122°F (50°C) to 2912°F (1600°C). Use up to four measurement channels with separate optical sensors connected by fiber optic cables.
Features

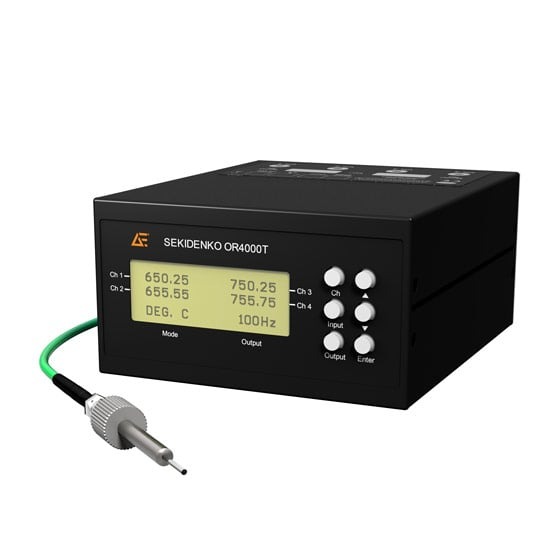

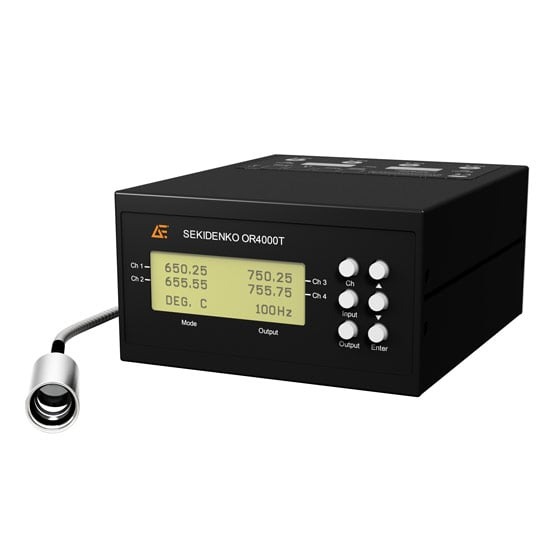

- In-situ, non-contact temperature measurement employing lensed optical sensors or sapphire light pipe sensors
- Industry-leading temperature and read rates
- Highly flexible, module-based platform architecture

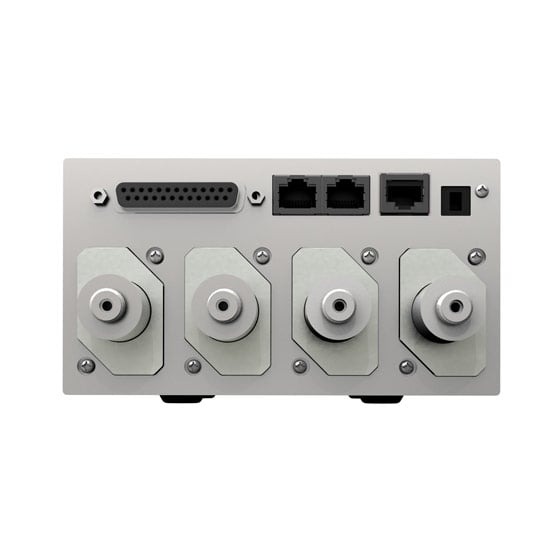

- Full I/O and external trigger/synchronization suite
- Multiple wavelengths within one instrument
Benefits
- Improves temperature measurement accuracy for critical processes
- Enhances repeatability and minimizes variation
- Increases productivity, yield, and throughput
- Increases stability and reliability across multiple chambers and substrate materials
- Customizes to meet the functional and mechanical requirements of unique applications
Specifications
| Operational temperature range (°C): | 50 to 3500 |
|---|---|
| Spectral Range (µm): | UV to 2300 |
| Interface / Output (mA): | RS-232, RS-422/485, and Ethernet |
| Accuracy: | ±1.5 °C |
| Weight (kg): | 2 |
| Wavelength Repeatability (pm): | ±0.1 |
