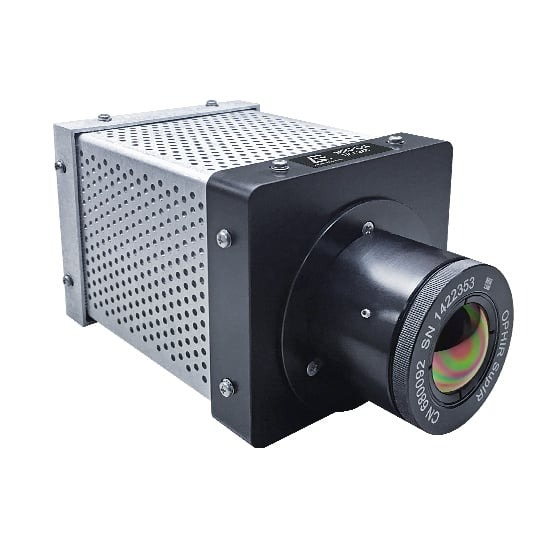

Mikron MCL640 Series
High-Performance, Infrared Camera for Temperature Measurement between -40 and 1600°C
The MIKRON MCL640 represents another milestone in innovative infrared thermometry. Designed with advanced maintenance-free electronics and Industrial Protective Packaging, the MCL640 offers unparalleled accuracy in demanding industrial and manufacturing applications. The MCL640 is a cost-effective, high performance non-contact infrared imager that serves a broad range of process monitoring applications. The unique design produces superior images and temperature measurement (±2°C). With an unmatched array of protective accessories, the MCL640 demonstrates Mikrons commitment to long-term trouble-free process monitoring in harsh industrial applications.
Features
- Maintenance free electronics

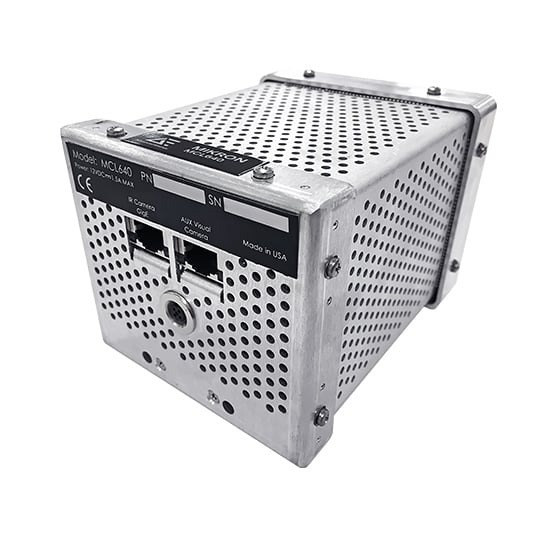

- Industrial protective packaging
- Long-term trouble-free process monitoring
- Measures temperature ranges -40 to 120°C and 0 to 500°C, and the HT version measures 200 to 1600°C
- Serves the industry's broadest range of process control applications
Benefits
- Operate in harsh environments

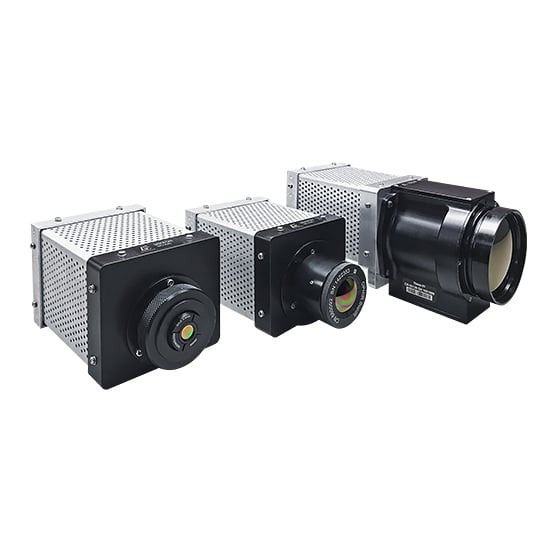

- Obtain the best view with five standard lens options
- Enable superior image quality and temperature measurement for longwave applications
- Benefit from an unmatched array of protective accessories
- Take advantage of unparalleled accuracy
Specifications
| Operational temperature range (°C): | 0 to 50 |
|---|---|
| Wavelength Range (nm): | 8000-14000 |

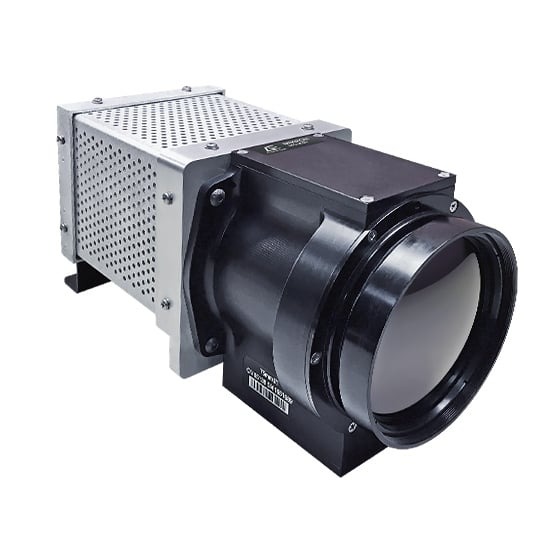

| Optical Interface: | 75 mm autofocus, others manual |
| Number of Channels: | 2 |
| Accuracy: | ±2 deg C or 2% of reading |
| Measurement Rate (Hz): | 9 Hz, 50 Hz |
| Field of View: | 8° to 77° |
| Filter (µm): | 8 to 14 |
Accessories
Mikron LumaSpec RT Software
Windows-Based, Real-Time Data Acquisition Software
Mikron VC Enclosure
Vortex-Cooled, Heavy-Duty, Industrial-Grade, Thermal Imager Protector
Mikron LumaSpec Offline Analyzer 5.0
Advanced Thermal Image Processing, Analysis, and Report-Writing Software
Technical Documentation
Services
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Total Service Package
We offer customized service bundles that include calibration, alignment, and extended warranty. Services will include scheduled calibration with adjustment and repairs as needed. Any software/firmware upgrades are also made available for customers.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Field services and On-Site Training
Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.
