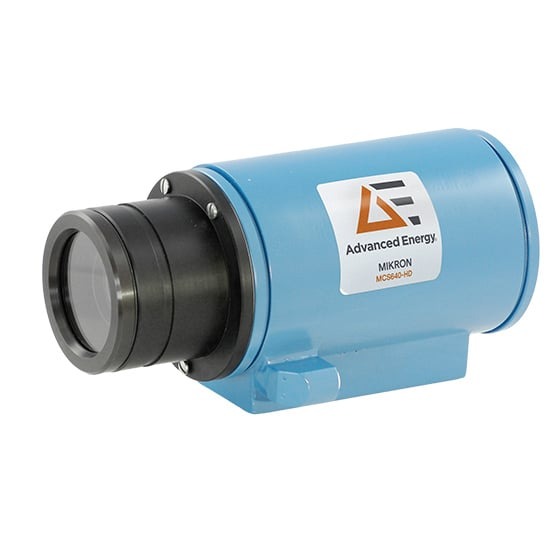

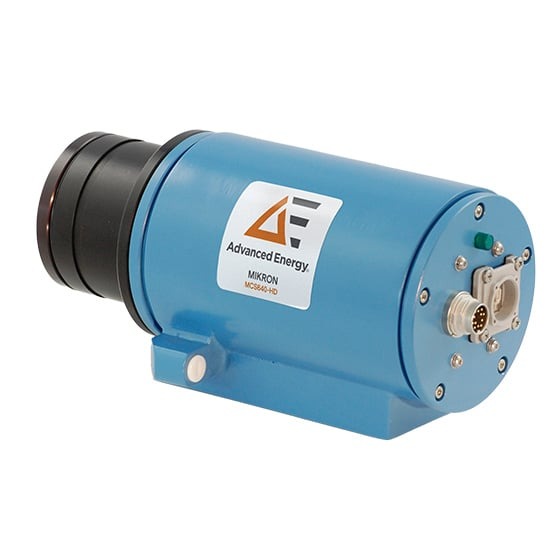

Mikron MCS640 Series
Short Wavelength Thermal Imagers for Temperature Measurement between 600 and 3000°C
The MIKRON MCS640 represents another milestone in innovative infrared thermometry. Designed with advanced maintenance-free electronics and Industrial Protective Packaging, the MCS640 offers unparalleled accuracy in demanding industrial and manufacturing applications. The MCS640 is a cost-effective, high performance non-contact infrared imager that serves a broad range of process monitoring applications. The unique design produces superior images and temperature measurement (±2°C). With an unmatched array of protective accessories, the MCS640 demonstrates Mikrons commitment to long-term trouble-free process monitoring in harsh industrial applications.
Features
- Unique superior measurement accuracy of 0.5% of reading
- Display of images in real-time at 60 Hz (60 images per second)
- 1000 Mbit/s Gigabit Ethernet data transmission
- Compact in size with a small weight of 0.7 kg
Benefits
- Obtain high quality images of small objects: 640 x 480 pixel detector
- Configure to meet exact measurement needs: Wide range of optics for macroscopic and microscopic applications
- Enable dynamic temperature processes: Image acquisition of 60 frames per second
Specifications
| Operational temperature range (°C): | 0 to 50 |
|---|---|
| Wavelength Range (nm): | 750-1100 |
| Optical Interface: | Manual Focus |
| Number of Channels: | 1 |
| Accuracy: | ±2 deg C or 2% of reading |
| Measurement Rate (Hz): | 60 Hz |
| Field of View: | 3.5° to 41° |
| Filter (µm): | 0.780 to 1.080 |
Accessories

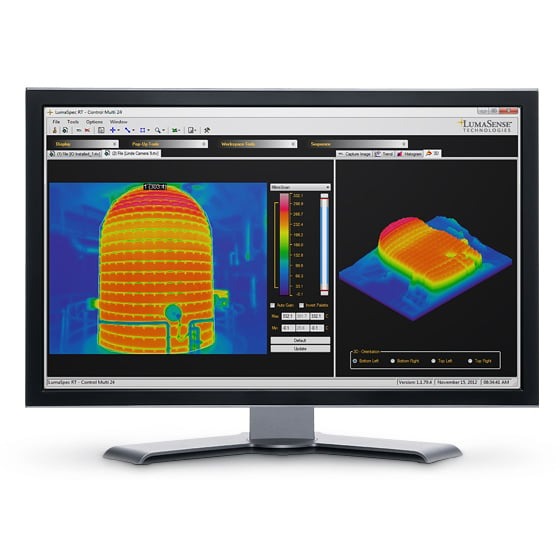

Mikron LumaSpec RT Software
Windows-Based, Real-Time Data Acquisition Software

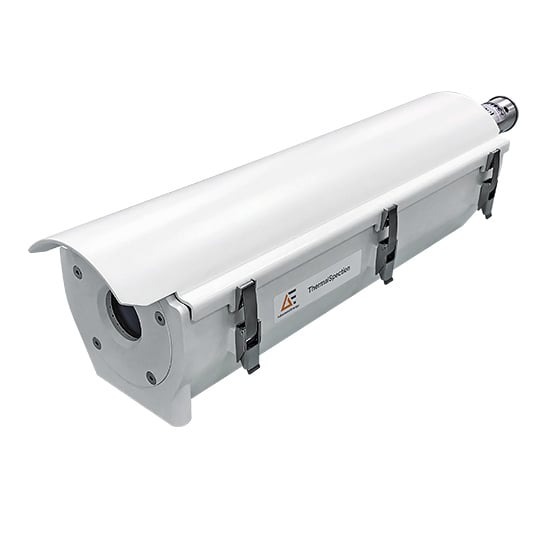

Mikron VC Enclosure
Vortex-Cooled, Heavy-Duty, Industrial-Grade, Thermal Imager Protector

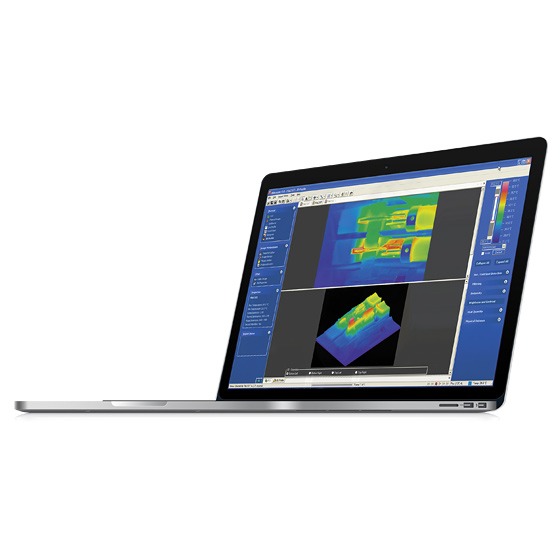

Mikron LumaSpec Offline Analyzer 5.0
Advanced Thermal Image Processing, Analysis, and Report-Writing Software
Technical Documentation
Services
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Total Service Package
We offer customized service bundles that include calibration, alignment, and extended warranty. Services will include scheduled calibration with adjustment and repairs as needed. Any software/firmware upgrades are also made available for customers.
| Product Family | Calibration | Calibration with Alignment |
Total Support Package (TSP) |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Term of Agreement | Annual | One Year | Two Years | Three Years | Five Years | One Year | Two Years | Three Years | Five Years |
| TEGAM 5540 | | | | | | | | | |
| Lumasense | | | | | | | | ||
| Plasma Power | | | | | | | |||
Field services and On-Site Training
Our field service engineers are available to support your on-site needs. We can properly secure and mount products, hook up your electrical connections, validate alignment and calibrate, and test to your specifications.
