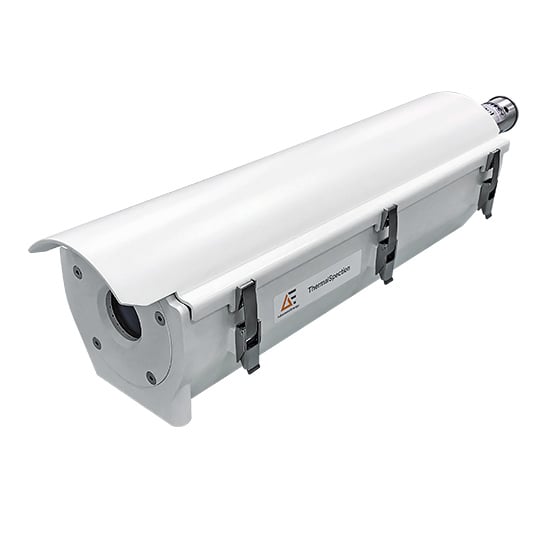

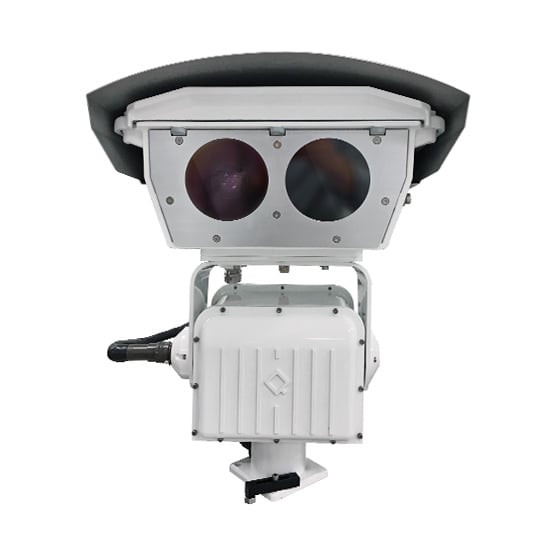

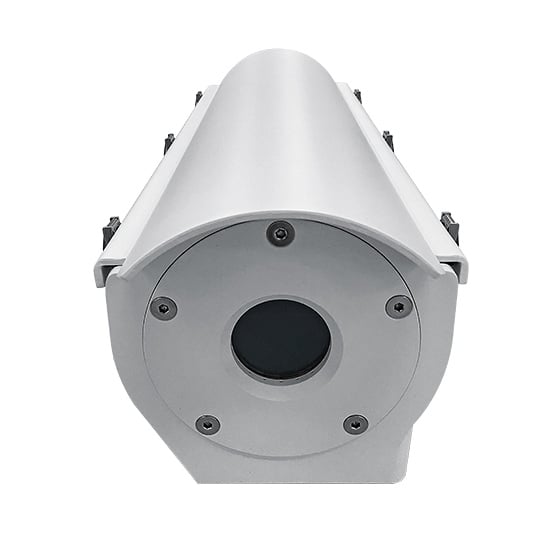

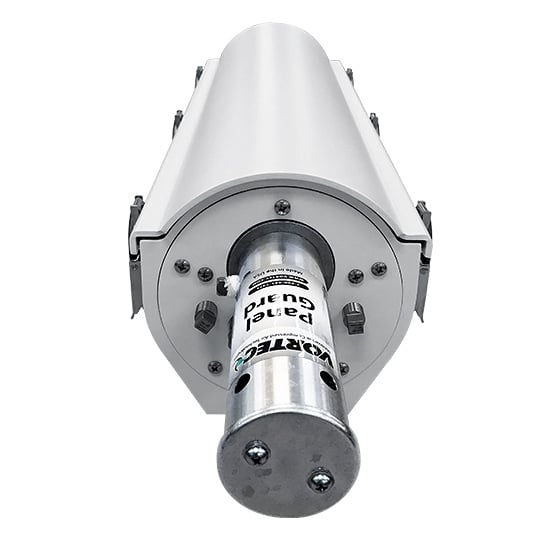

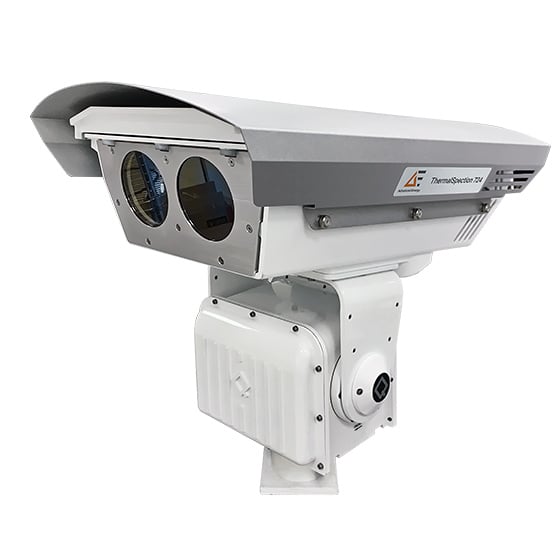

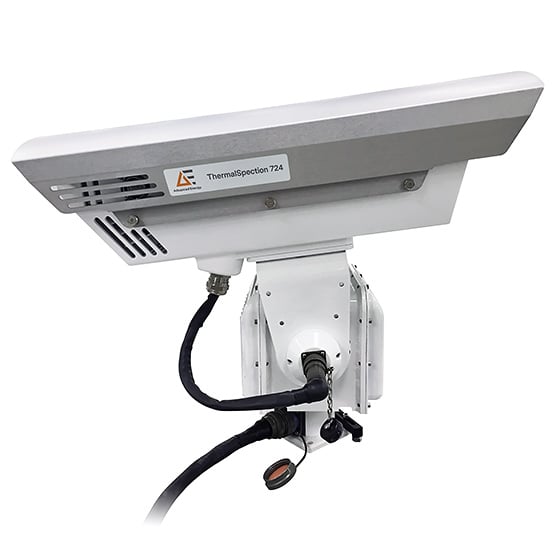

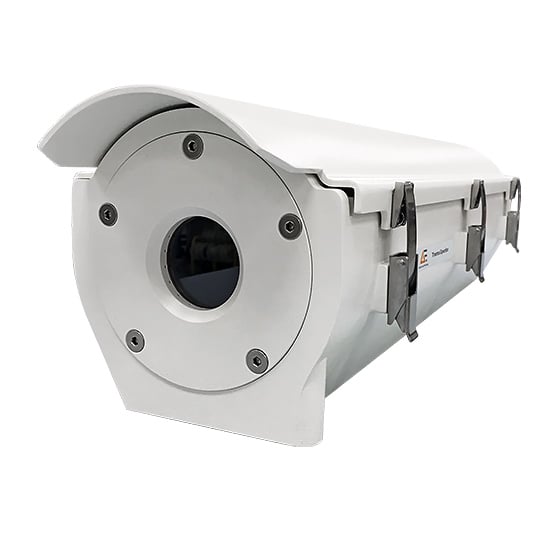

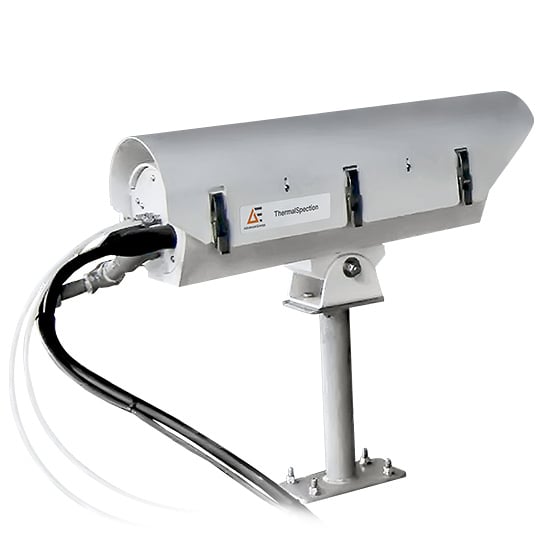

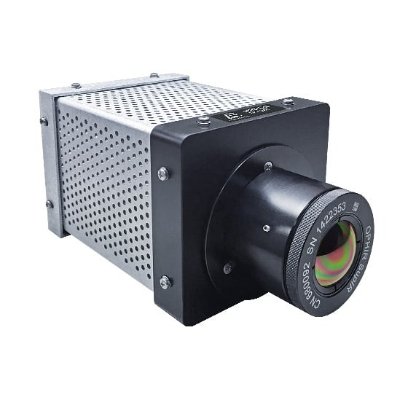

ThermalSpection Series
Real-time, Continuos, and Automated Fault Detection and Monitoring of Critical Vessels
Features
- Automated thermal monitoring for performance and safety
- Continuous monitoring without personnel constraints
- Early and remote fault detection
- Automatic hot-spot tracking
- HTML visualization displays for broadcast on plant intranet
- Automated analysis with built-in industry-standard analytics
- OPC/Modbus interface
- Optional integration with OSIsoft’s PI database system
Benefits
- Replace error-prone manual inspection with automated monitoring
- Identify transient thermal events not detectable with manual inspection
- Integrate with existing control systems via standard protocols
- Monitor assets after installation/maintenance to identify risk for infant mortality or faults
- Reduce risk and unplanned outages
- Utilize advanced features in a user-friendly interface
- Capture thermal data snapshot frames at set intervals or trigger using temperature alarms
- Easily integrate into existing plant DCS and data historian
Specifications
| Operational temperature range (°C): | -40 to 60 |
|---|---|
| Wavelength Range (nm): | 8000-14000 |
| Optical Interface: | 75 mm autofocus, others manual |
| Number of Channels: | 2 |
| Accuracy: | ±2 deg C or 2% of reading |
| Measurement Rate (Hz): | 9 Hz, 50 Hz |
| Field of View: | 8° to 77° |
| Filter (µm): | 8 to 14 |
Accessories
Mikron LumaSpec Offline Analyzer 5.0
Advanced Thermal Image Processing, Analysis, and Report-Writing Software
Mikron LumaSpec RT Software
Windows-Based, Real-Time Data Acquisition Software
Technical Documentation
Technical Videos
Monitoring Critical Vessels with ThermalSpection CVM
