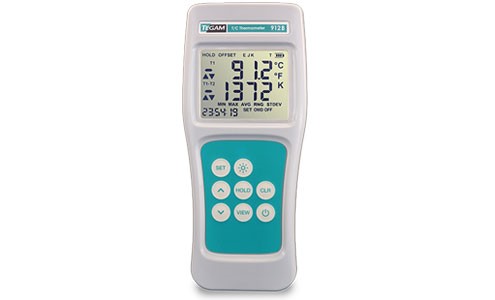

912B Thermocouple Thermometer
Dual Input °C &°F (K, J , T & E)
The Model 912B is a dual channel digital thermocouple thermometer compatible with type K, J, T or E thermocouple probes to provide a wide range of temperature measurements, (-418 °F to 2502 °F) and boasts a 2000 hour battery life using three AA batteries. The 912B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers.
The creative ergonomic design makes these thermocouple thermometers easy to hold, easy to read and easy to clean. Designed for one-handed operation, these tools are comfortable to carry and use for extended periods of time. The heavy-duty case is specifically designed for durability and resistance to contaminants such as dust and chemicals. The smooth, sleek, seamless case means that cleaning is quick and certain.
Real-time statistical data increases user productivity, process efficiency and product quality. Displayed on-demand MIN, MAX, AVG, RNG and STDEV (standard deviation) provide critical process information and diagnostics that allow the user to analyze manufacturing processes on the fly and make immediate adjustments for maximum efficiency and quality. The temperature difference between Channel 1 and Channel 2 are also determined and displayed on demand.
Like all Advanced Energy's TEGAM products, our thermocouple thermometers are designed, assembled and tested in the United States. TEGAM backs this durable instrument with a standard 3 year warranty and a 2 year calibration guarantee to insure that your instrument is ready to use when you need it.
Features
- Accuracy: ±(0.04% rdg + 0.3 °C)
- Thermocouple Thermometer Range : -418 °F to 2502 °F
- Resolution : 0.1/1 °C/°F/K
- 2000 Hour Battery Life
- Dual inputs
- nput Type : K, J, T, E
- Probe Offset
- Displays Real-Time Statistical Data
- 4-digit Auto-Resolution (0.1/1) with Backlight and Function Annuciators
- Creative Ergonomic Design
- Three Year Warranty
- Two Year Calibration Guarantee
- Optional ISO 17025 Calibration Certificate Available
- Assembled in the USA
Benefits
- High-performance and probe offset function assure you are accurately monitoring your processes
- Monitor two thermal processes at the same time with dual channels
- Use one thermometer to support the four most popular thermocouple types
- Ultra-long battery life means your thermometer is always ready; educed operating costs over product lifecycle
- Easy one-hand operation and convenience
- 2-year calibration cycle means less downtime and lower costs
Specifications
| Accuracy: | ±(0.04% rdg +0.3 ⁰C) |
|---|---|
| Connector Type: | Mini-TC |
| Intrinsically Safe: | No |
| Measurement Range: | -250 to 1372 ⁰C |
| No. of Inputs: | 2 |
| Operating Temperature (°C): | -20 to 55 ⁰C |
| Probes Supported: | J, K, T, E |
| Resolution (°C): | 0.1⁰ C/F/K |
Accessories Stock Check
Factory or User Installed Belt Clip
This clip allows the user to attach a 700 or 900 series meter quickly and easily to a belt. Frees hands for other tasks. Can be installed at purchase of handheld meter or purchased and installed separately at a later date.
NOTE: This product is not compatible with the tilt stand or magnet holders.
Technical Specifications
Attaches easily to TEGAM’s 900 and 700 Series handheld meters
Frees operators’ hands for other tasks.
Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911A, 912A, 931A or 932A handheld thermometers. It is Factory Installed with purchase of 900 series thermometer. The hanger attaches to the back of the handheld thermometer so that professionals may free their hands while taking temperature measurements.
Technical Specifications
Purchased with a thermocouple thermometer and IS installed prior to shipping
Attaches easily to the back of TEGAM’s 911A, 912A, 931A or 932A
Allows professionals to free their hands while taking temperature measurements
Versatile
Foam-filled hard carry case is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld digital thermometers and the TEGAM 940A or 945A handheld temperature calibrators.
The case has a place for your handheld instrument, probes, and additional batteries.
Technical Specifications
Durable
Custom fit
Protects Equipment
Tilt Stand, Magnet, Hanger is an optional accessory for the TEGAM 911B, 912B, 931B or 932B handheld thermometers. The hanger attaches to the back of the handheld thermometer so that professionals may free free their hands while taking temperature measurements.
Technical Specifications
Product is individually packed and is NOT installed on a thermocouple thermometer
Attaches easily to the back of TEGAM’s 911B, 912B, 931B or 932B
Allows professionals to free their hands while taking temperature measurements
Versatile
ISO 17025 is an International Standard and grew out of ISO Guide 25. In 2002 ISO started assessing all calibration labs to 17025. It has been updated several times since then, cleaning ambiguities, strengthening traceability requirements and expanding its overall coverage of processes. The premise of ISO 17025 is that traceability and a fully developed uncertainty statement are required to establish confidence in the calibration. Traceability is required to SI Standards (international standards based on the new SI units of measure). ISO 17025 also requires a full total uncertainty statement for the laboratory to prove the accuracy of the calibration. Its procedures assess the training and competencies of the lab personnel and the calibration procedures. ISO 17025 also requires accreditation by an internationally recognized authority.
