921B Intrinsically Safe Thermocouple Thermometer
Single Input °C &°F (K, J, T, E , N, R, S & B)
The Model 921B is a single-channel intrinsically safe digital thermometer compatible with type K, J, T,E , N, R, S or B thermocouple probes to provide a wide range of temperature measurements, (-418 °F to 2502 °F) certified intrinsically safe for use in potentially hazardous environments. The 921B boasts a 2000 hour battery life using three AA batteries. The 921B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers.
The creative ergonomic design makes these I.S. thermocouple thermometers easy to hold, easy to read and easy to clean. Designed for one-handed operation, these tools are comfortable to carry and use for extended periods of time. The heavy-duty case is specifically designed for durability and resistance to contaminants such as dust and chemicals. The smooth, sleek, seamless case means that cleaning is quick and certain.
Real-time statistical data increases user productivity, process efficiency and product quality. Displayed on-demand MIN, MAX, AVG, RNG and STDEV (standard deviation) provide critical process information and diagnostics that allow the user to analyze manufacturing processes on the fly and make immediate adjustments for maximum efficiency and quality.
Like all Advanced Energy's TEGAM products, our intrinsically safe thermocouple thermometers are designed, assembled and tested in the United States but are ATEX-compliant for European applications. TEGAM backs this durable instrument with a standard 3 year warranty and a 2 year calibration guarantee to insure that your instrument is ready to use when you need it.
TEGAM intrinsically safe products are ideal for measuring temperature in potentially hazardous environments such as those found within the aerospace, automotive, pharmaceutical, oil & gas, chemical, textiles, and mining industries and even some food processing applications.

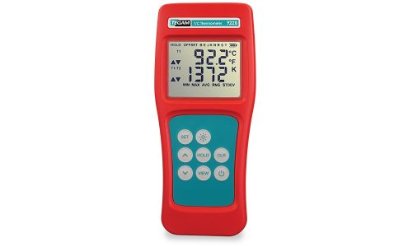

Dual Input Intrinsically Safe Thermocouple Thermometer is also available in our 922B model.
Features
- Accuracy: ±(0.04% rdg + 0.3 °C)
- Thermocouple Thermometer Range : -418 °F to 2502 °F
- Resolution : 0.1/1 °C/°F/K
- 2000 Hour Battery Life
- Input Type : K, J, T,E, N, R, S or B
- Certified Intrinsically Safe (UL, CE, ATEX-Compliant)
- Probe Offset
- Displays Real-Time Statistical Data
- 4-digit Auto-Resolution (0.1/1) with Backlight and Function Annuciators
- Creative Ergonomic Design
- Three Year Warranty
- Two Year Calibration Guarantee
- Optional ISO 17025 Calibration Available
- Assembled in the USA
Benefits
- High-performance and probe offset function assure you are accurately monitoring your processes
- Designed for continuous in the presence of flammable liquids, gases, and mists; certified for use worldwide
- Use one thermometer to support eight different thermocouple types
- Ultra-long battery life means your thermometer is always ready; educed operating costs over product lifecycle
- Easy one-hand operation and convenience
- 2-year calibration cycle means less downtime and lower costs
- Supported by a wide range of intrinsically safe temperature probe options
Specifications
| Accuracy: | ±(0.04% rdg +0.3 ⁰C) |
|---|---|
| Connector Type: | Mini-TC |
| Intrinsically Safe: | Yes |
| Measurement Range: | -250 to 1767 ⁰C |
| No. of Inputs: | 1 |
| Operating Temperature (°C): | -20 to 50 ⁰C |
| Probes Supported: | J,K,T,E,B,N,R,S |
| Resolution (°C): | 0.1⁰ C/F/K |
Accessories Stock Check
ISO 17025 is an International Standard and grew out of ISO Guide 25. In 2002 ISO started assessing all calibration labs to 17025. It has been updated several times since then, cleaning ambiguities, strengthening traceability requirements and expanding its overall coverage of processes. The premise of ISO 17025 is that traceability and a fully developed uncertainty statement are required to establish confidence in the calibration. Traceability is required to SI Standards (international standards based on the new SI units of measure). ISO 17025 also requires a full total uncertainty statement for the laboratory to prove the accuracy of the calibration. Its procedures assess the training and competencies of the lab personnel and the calibration procedures. ISO 17025 also requires accreditation by an internationally recognized authority.

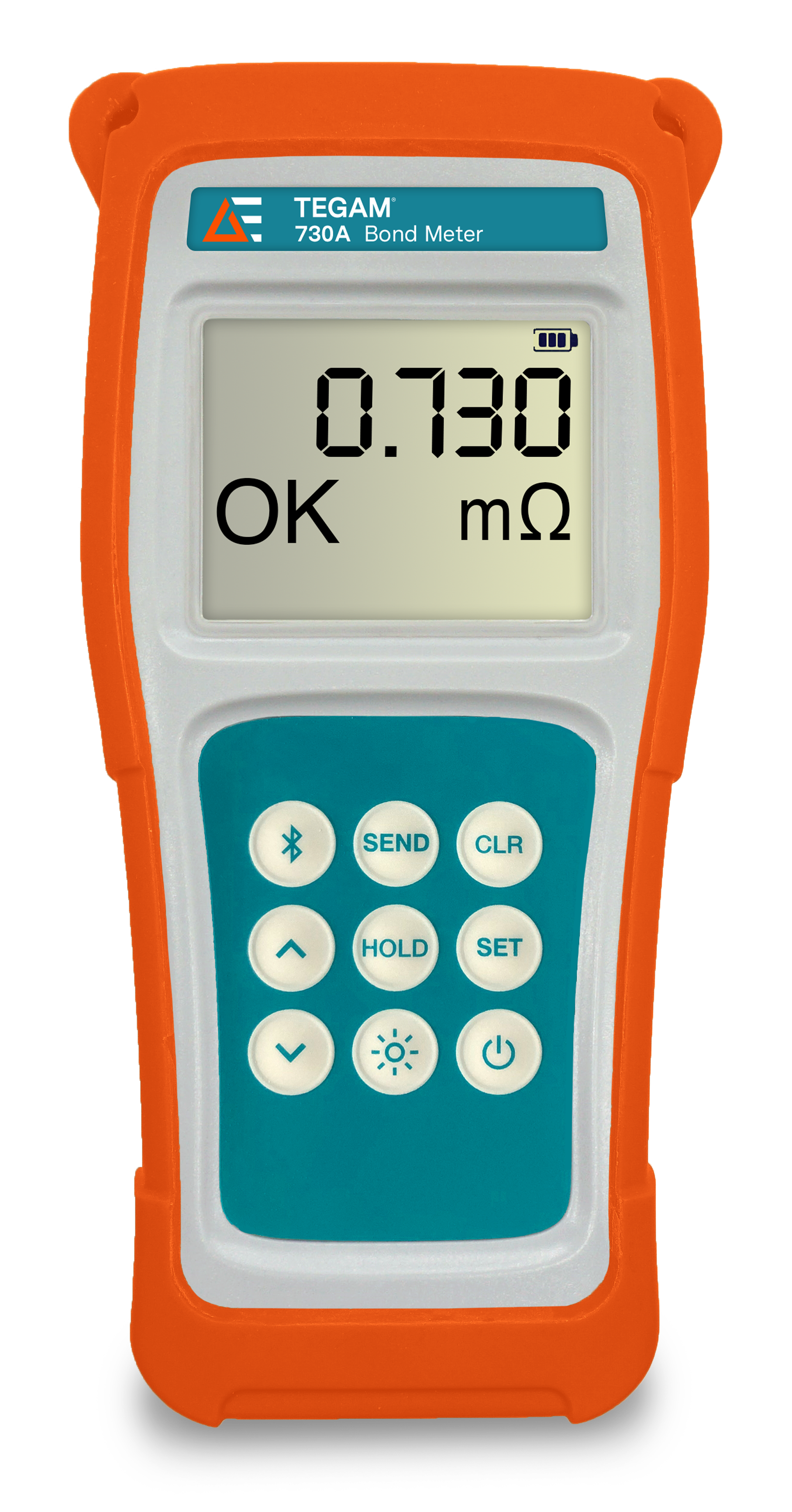

TEGAM’s SureGrip Cover is designed for a more secure grip to prevent instrument damage from dropping, and possesses elastic properties from non-silicone elastomer which also protect airframes and vehicles from tooling damage due to accidental impacts.
The SureGrip Cover fits our 700 Series Bond Meters and 900 Series Digital Thermometers.& Calibrators
