CSU3200ET

Active

営業担当

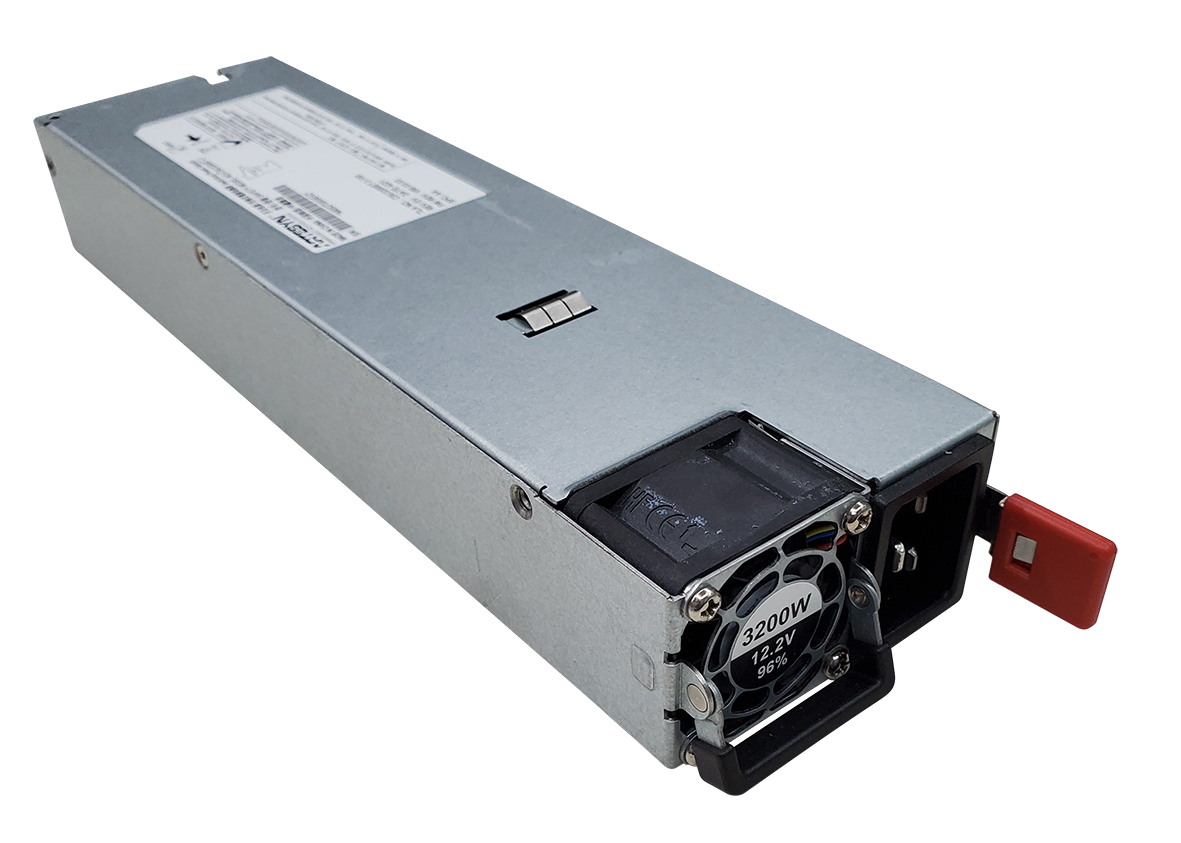

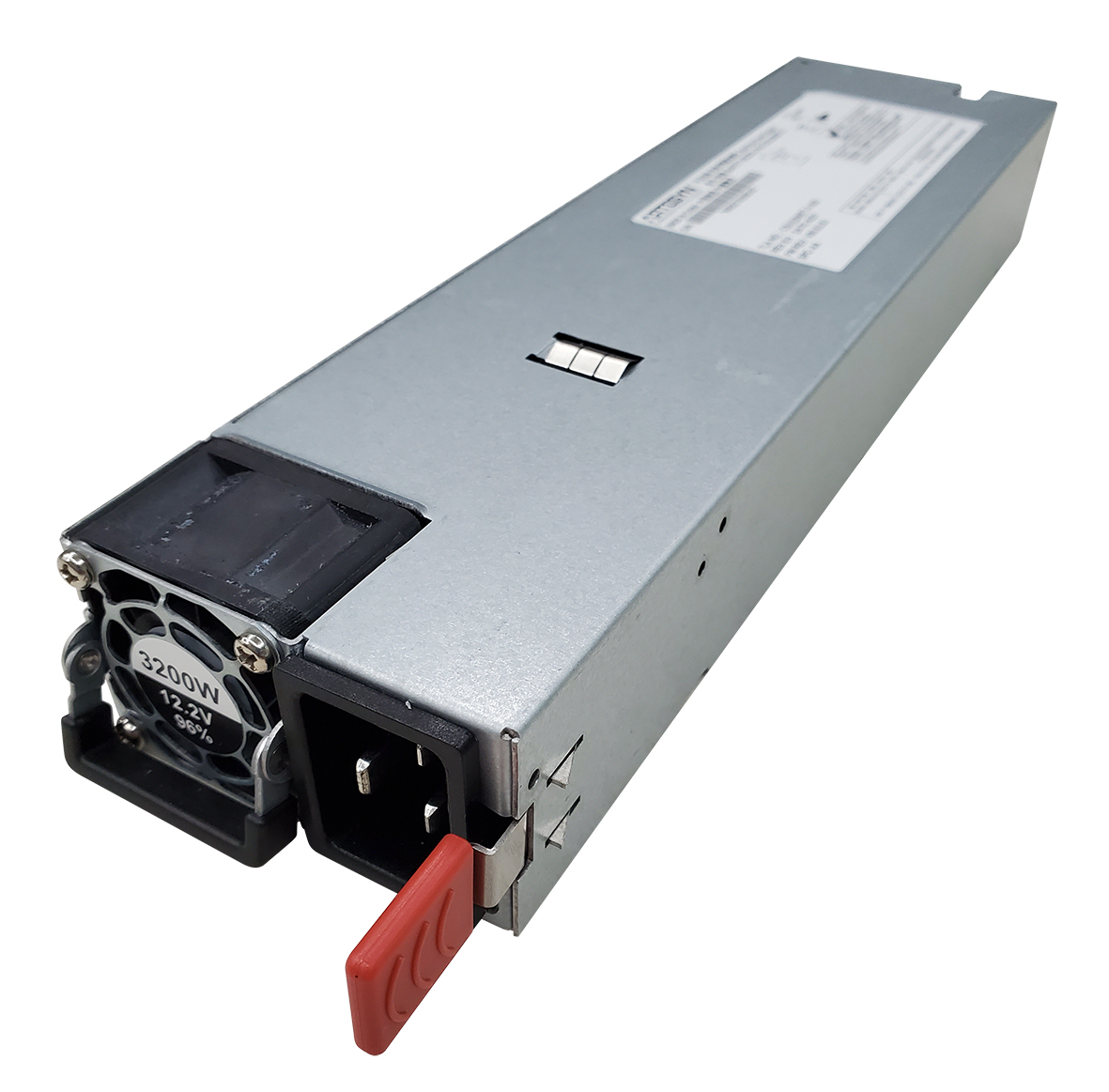

The 3.2 kW CSU3200ET Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 262 A. The PSU features an input range of 180 to 264 VAC and output 11.4 to 12.8 VDC that can feed downstream DC-DC converters in distributed power architectures (DPA). Housed in a 1U high rack-mount enclosure measuring just 2.89 x 10.43 inches (73.5 x 265 mm), the supply’s narrow form factor conforms to the Common Redundant Power Supply (CRPS) standard. Active current sharing allows paralleling without additional components. The CSU3200ET is digitally controlled via an integral I2C interface using Advanced Energy’s universal PMBus® graphical user interface.

特徴

•   Accepts AC or DC input voltage
•   Titanium efficiency rating
•   >0.9 Power Factor at 10% load
•   Continuous 3200W output power
•   Full digital control
•   Supports PMBus
•   Active output current sharing for parallel or redundant mode operation
•   FW live update

メリット

•   Input voltage flexibility for world-wide deployment
•   Reduces electricity bill due to high efficiency and high power factor performance
•   Output power maximizes power draw from AC line, reducing stranded power
•   FW live update support reduces system down time if power supply FW needs to be updated
•   PMBus support provides reporting, monitoring, and control functions for system power management

仕様

出力電力 (W):	3200
長さ（インチ）:	10.43
幅（インチ）:	1.75
高さ（インチ）:	1.57
マウントタイプ:	Rack-mount
最小出力電流 (A):	1
最大出力電流 (A):	262
出力電圧範囲 (V):	12 V
最小出力（W）:	12
最大出力（W）:	3200
Minimum Input Voltage (V):	90
最大入力電圧 (V):	264
保証期間（年）:	2
