SL Power™
LU225 Series
Active
225 W Single Output LED & Industry Grade

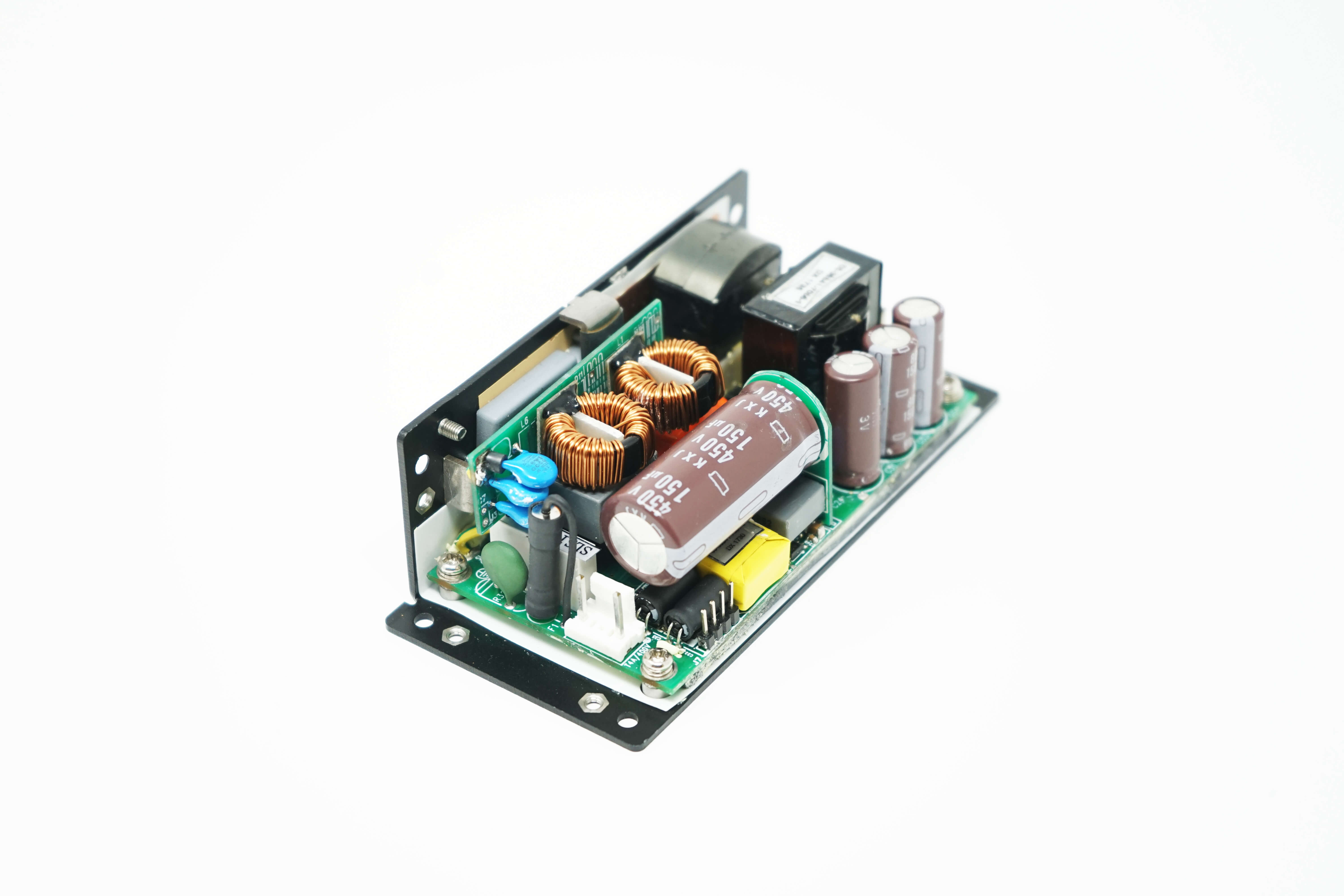

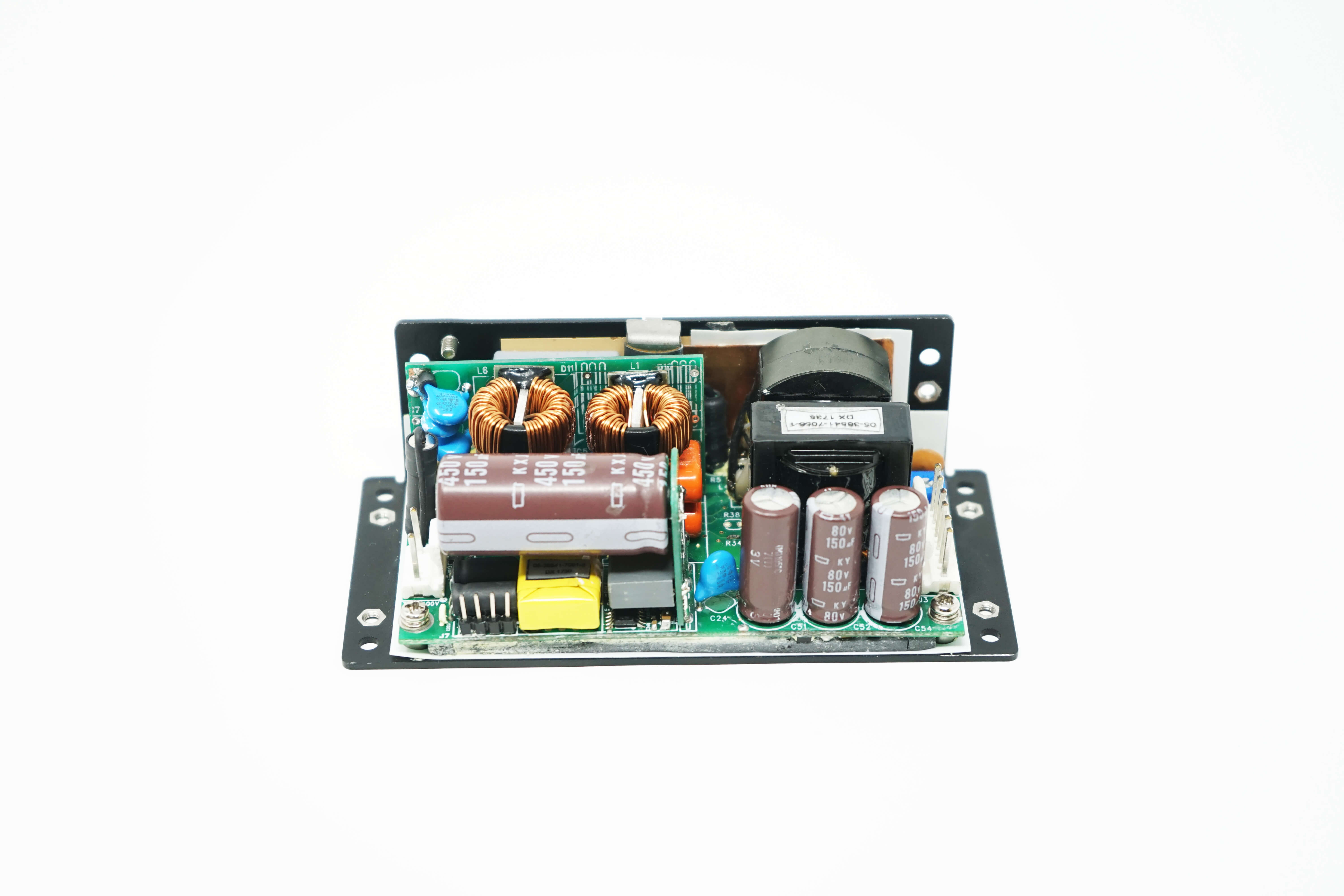

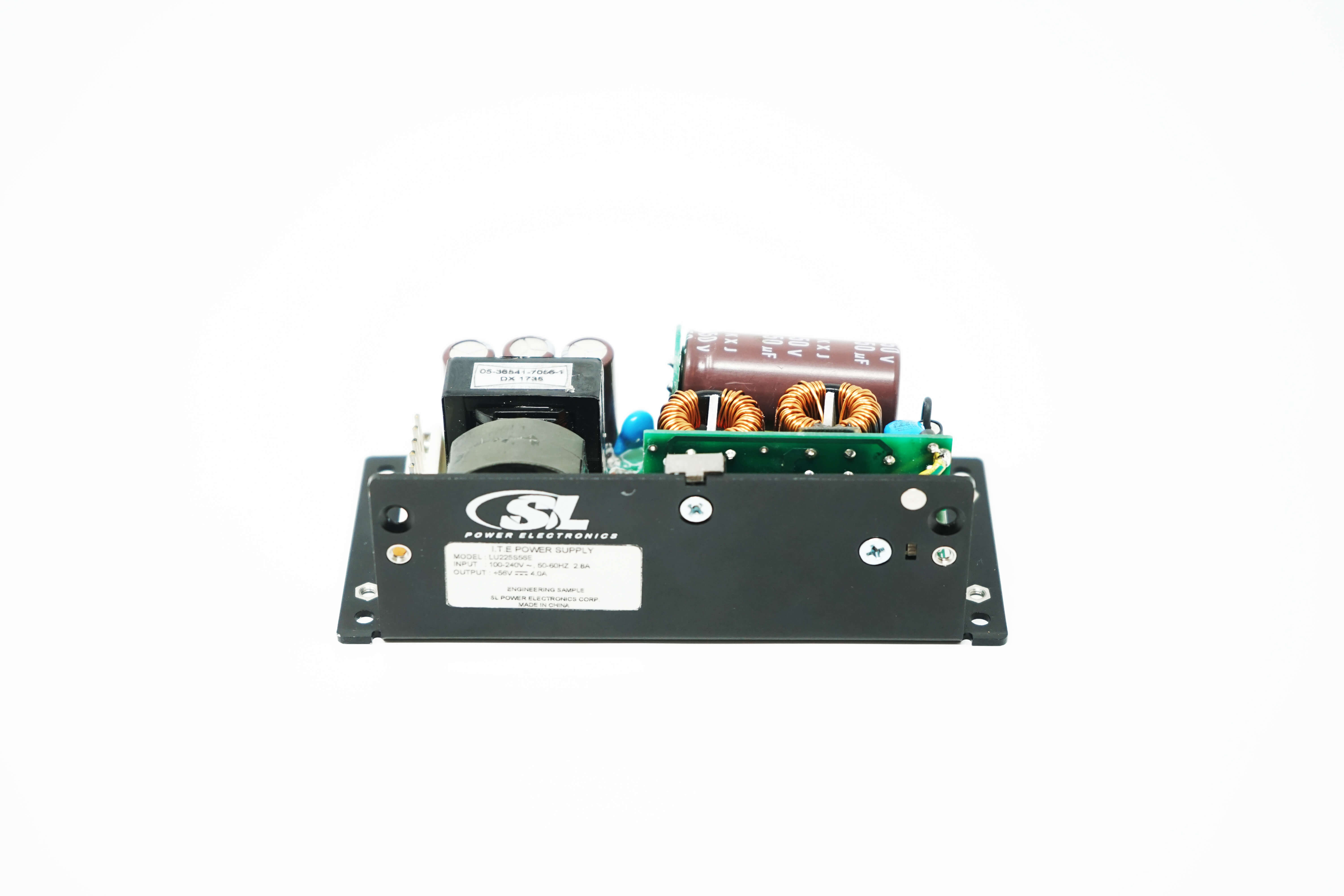

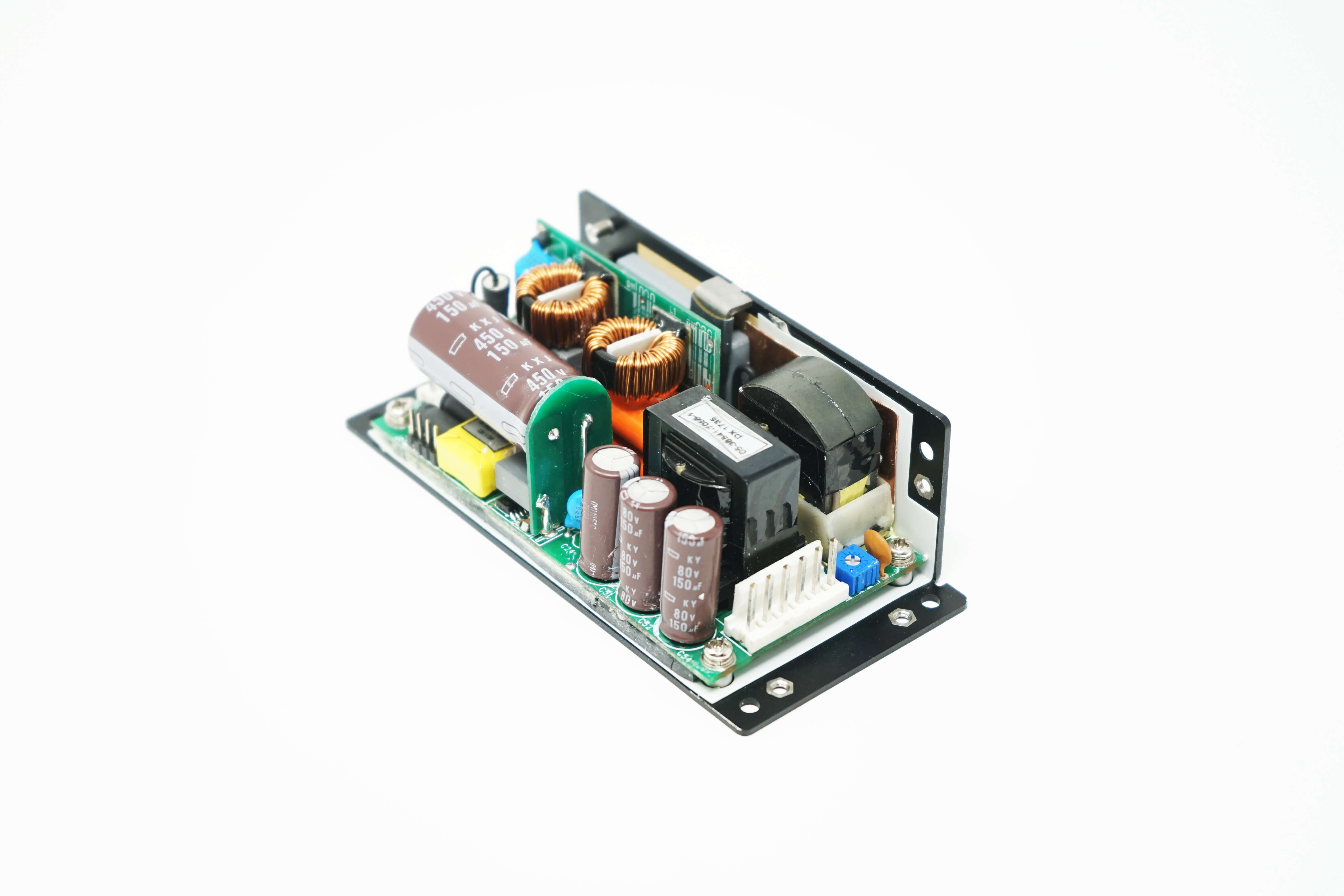

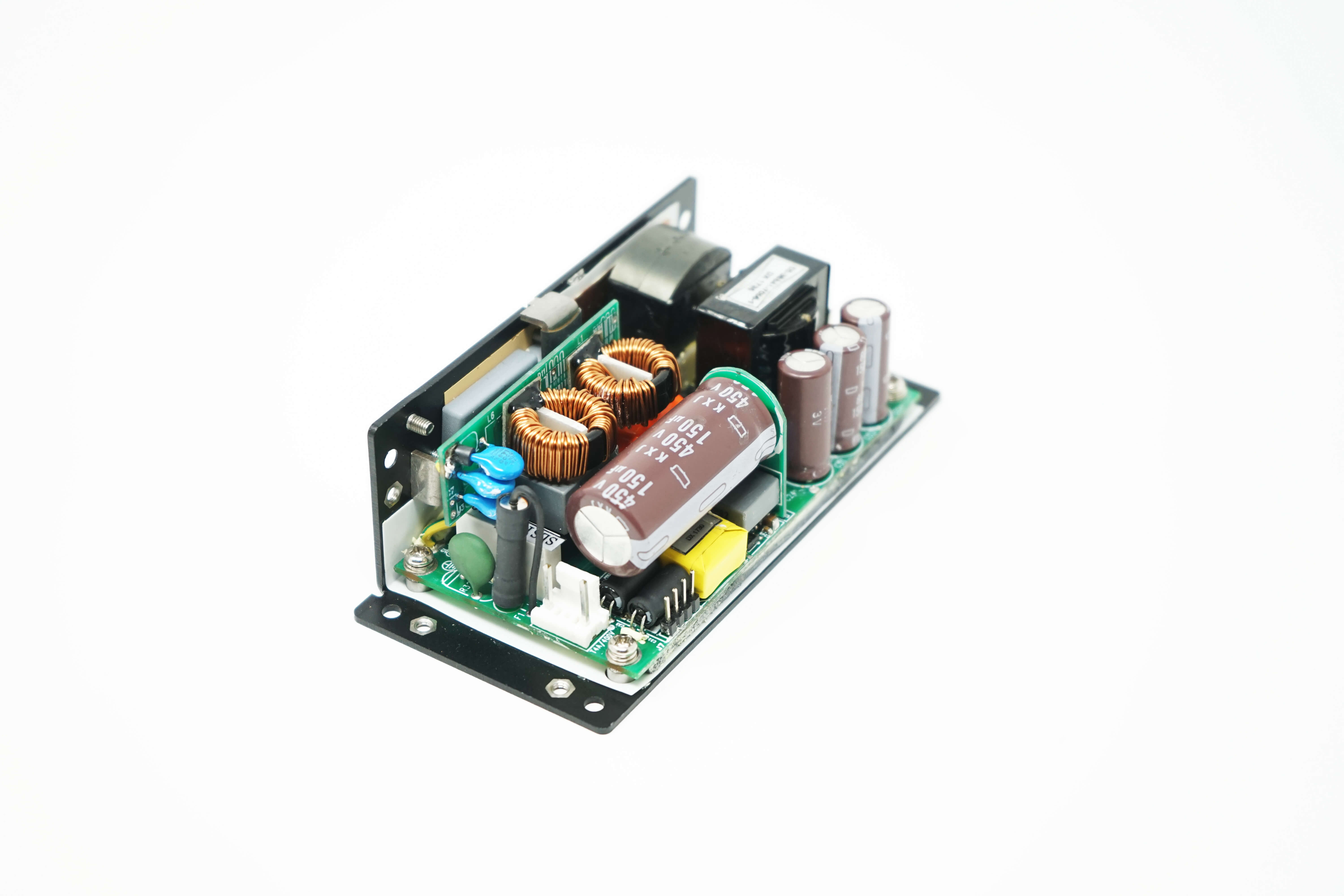

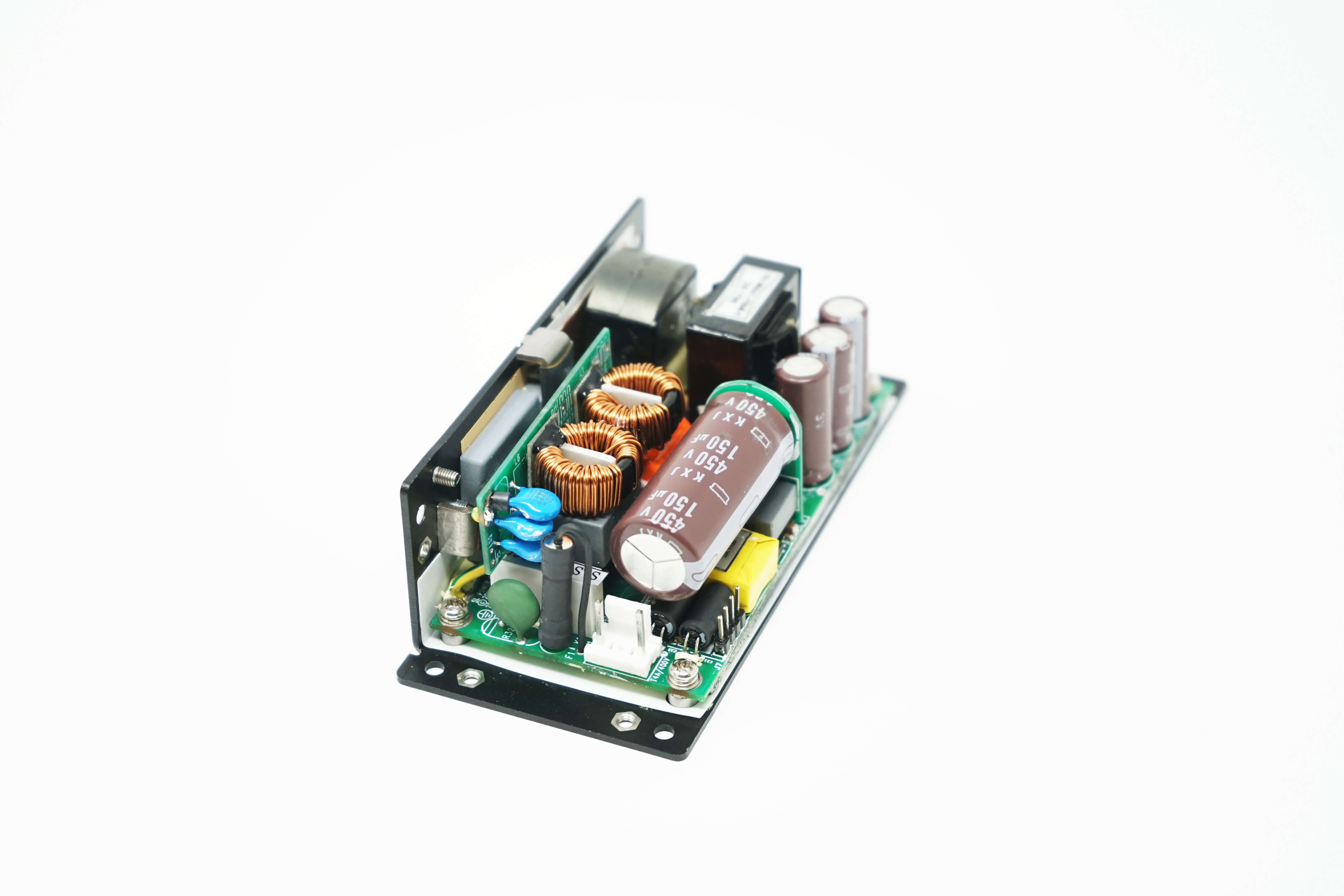

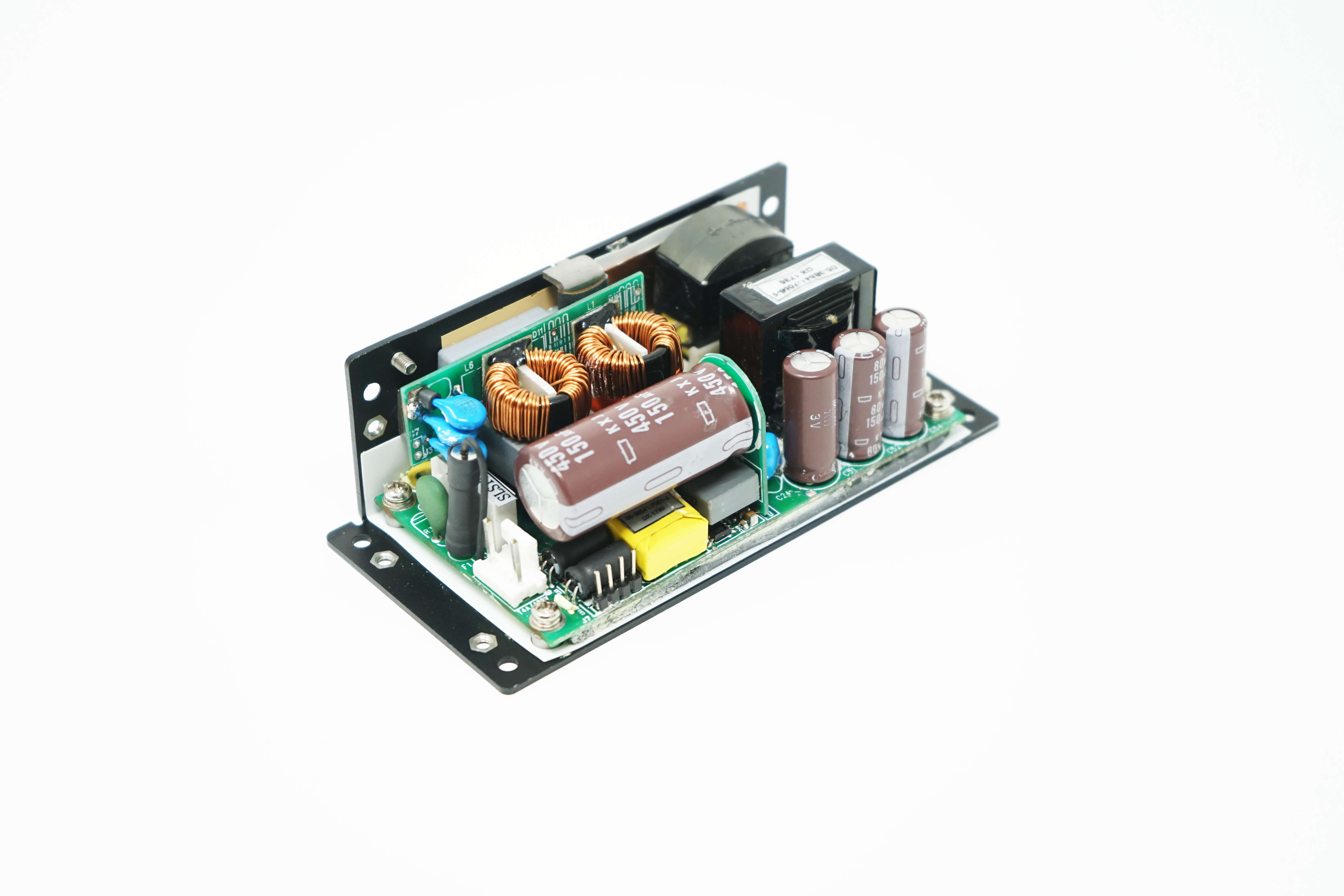

Advanced Energy’s SL Power LU225 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 24 V, 36 V, 48 V or 56 V. The new product family offers versatile system integration with available mounting options (top and under-mount) and a variety of cooling configurations – convection (150 W), conduction (180 W) and fan cooled (225 W). All models have output overvoltage, short circuit and overload protection and a 2.2 x 4.16 x 1.5 inch form factor. At its core, the LU225 is a high-performance internal power supply family designed for LED Lighting fixtures including architectural installations and other Industrial applications, such as Test & Measurement.
特徴
- 225 W (Fan Cooled, 200 LFM)
- 180 W (Conduction Cooled)
- 140 W (Convection Cooled)
- 2.2” x 4.16” x 1.5” Package (Standard)
- Universal Input 90 to 305 VAC
- Active inrush current limiter – 15 A
- 0.5 W power consumption at no-load
メリット
- UL8750
- Single output
- EN55015(EN55032) Class B Conducted EMI Meets IEC61000-3-2 Class C for 0% to 100% LED Dimming Applications (1 W input power to full load)
- Approved to EN/IEC/UL62368-1
仕様
| 出力電力 (W): | 225 |
|---|---|
| 長さ（インチ）: | 4.16 |
| 幅（インチ）: | 2.2 |
| 高さ（インチ）: | 1.5 |
| マウントタイプ: | Embedded PSU |
| 最小出力電流 (A): | 4 |
| 最大出力電流 (A): | 17.5 |
| 出力電圧範囲 (V): | 12V to 56V |
