CF Rated Products

Parametric Search
Active
Type CF is the most stringent medical electrical safety classification and is essential for medical products that may come in direct contact with the heart, including dialysis machines, cardiac-related systems, and platforms for electrosurgery. Advanced Energy offers standard, compact products that combine the performance and reliability demanded by complex medical systems with the high isolation voltage and low leakage current essential to CF certification.

注目製品

新しい

NCF250 Series

Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow with a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.3 x 5.0 x 1.5 inch form factor.

データシート

新しい

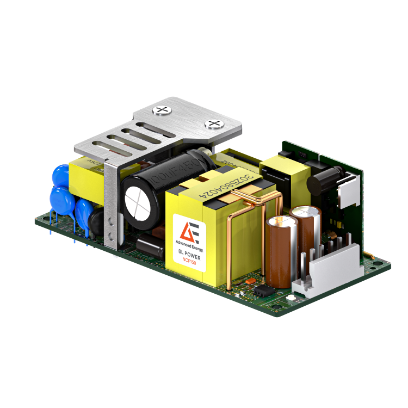

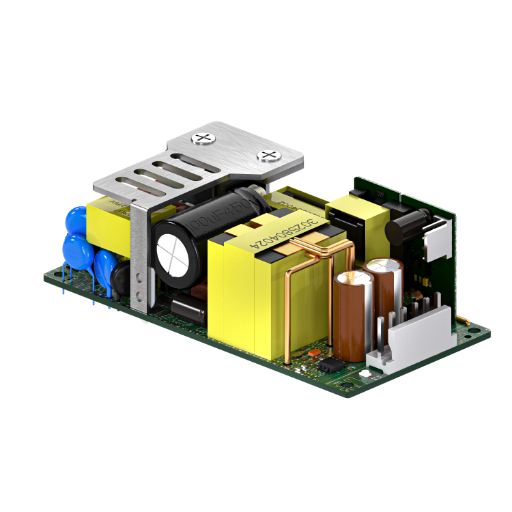

NCF150 Series

Advanced Energy’s SL NCF150 series are CF rated products AT A GLANCE for critical medical applications needing low leakage current. Voltages of 12 V, 15 V, 19 V, 24 V and 48 V together with an optional 5 V standby and 12 V fan output. Each model accepts a universal input of 85 to 264 VAC. full-load efficiency of greater than 90 percent, These compact switch-mode power supplies feature output overvoltage and short-circuit protection, these units are ideal for use in industrial and medical applications

データシート

新しい

NCF660 Series

Advanced Energy’s SL Power NCF660 CF rated*medically AT A GLANCE approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V or 48 V. NCF660 series power supplies provide up to 660 W of output power with air flow. All models have output overvoltage, short circuit and overload protection and a 7 x 4 x 1.6 inch form factor.

データシート

新製品

新しい

NCF250 Series

Advanced Energy’s SL Power NCF250 series are CF rated medically approved AC-DC power supplies for critical medical applications needing low leakage current. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF250 series power supplies provide up to 250 W of output power with air flow with a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.3 x 5.0 x 1.5 inch form factor.

データシート

技術文書

Featured Resources

Achieving Medical Device Compliance with the CF Rated Low Leakage Adapter

リソースを見る

関連アプリケーション

すべてのアプリケーションを表示する

Surgical

The surgical laser industry faces various challenges, including finding power supplies that can deliver precise, easily controlled power with low acoustic noise. These power supplies must also be compatible with portable devices, offer multiple output voltages, and preserve a high-power density.
ドキュメント

Dialysis

Advanced Energy’s reliable and efficient power solutions for Patient Monitoring Dialysis equipment are designed to meet the specific power requirements of dialysis machines, which require precise and consistent power delivery for accurate monitoring of patient vital signs.
Explore Dialysis

PEF / PFA

Our precision power control solutions are designed to empower medical equipment designers to deliver advanced ablation systems that enable more precise targeting of tumors, improve the efficacy of treatments, and ultimately deliver better outcomes for patients and doctors.
Explore PEF
