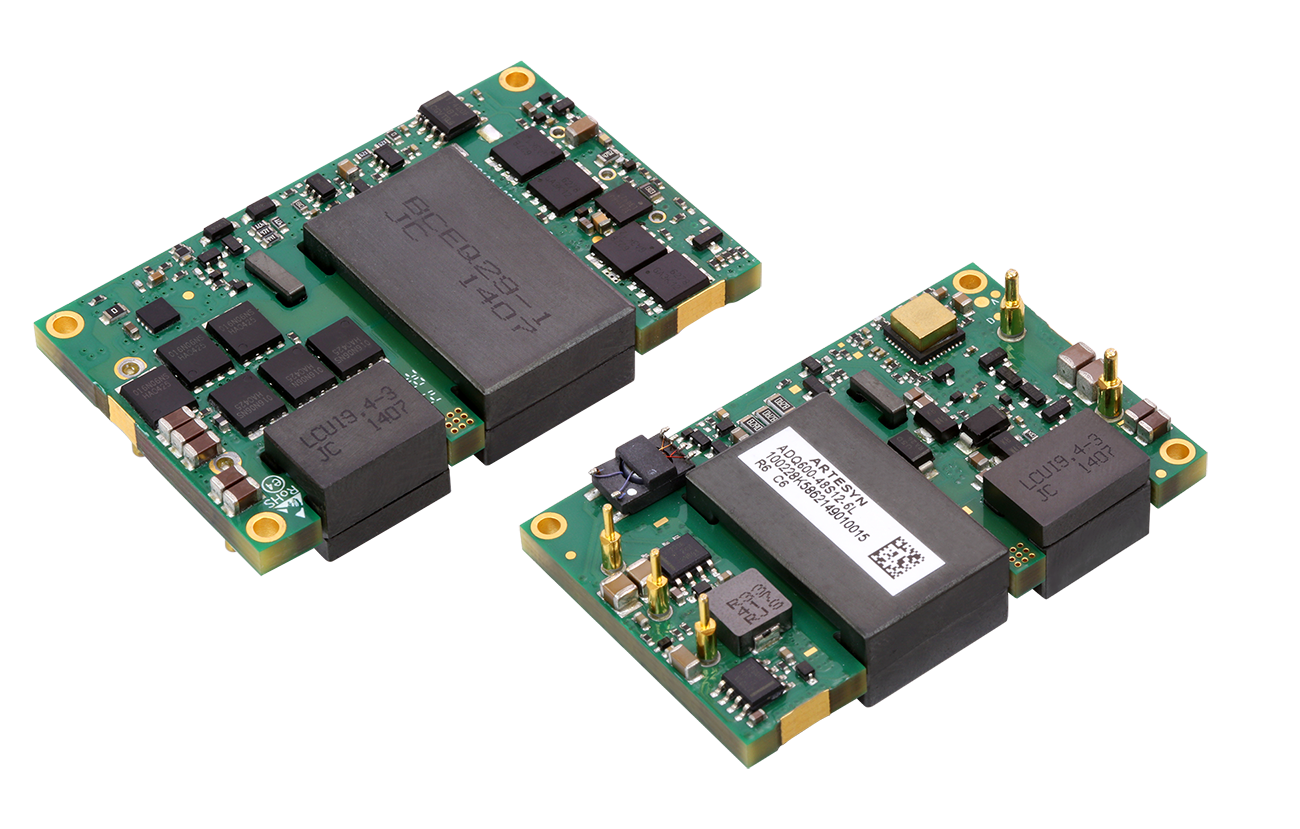

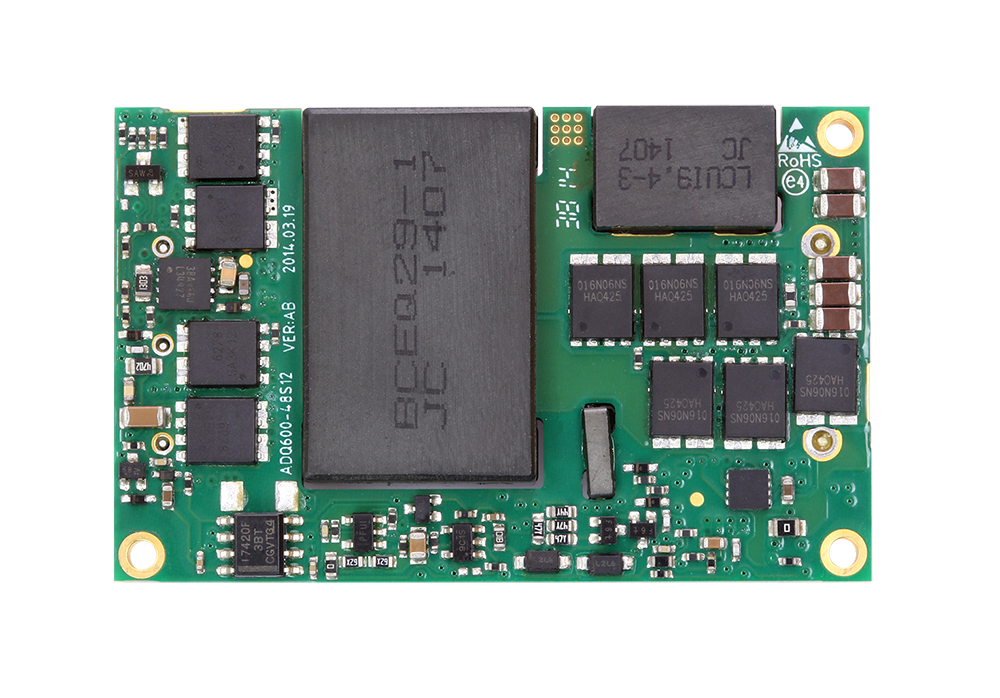

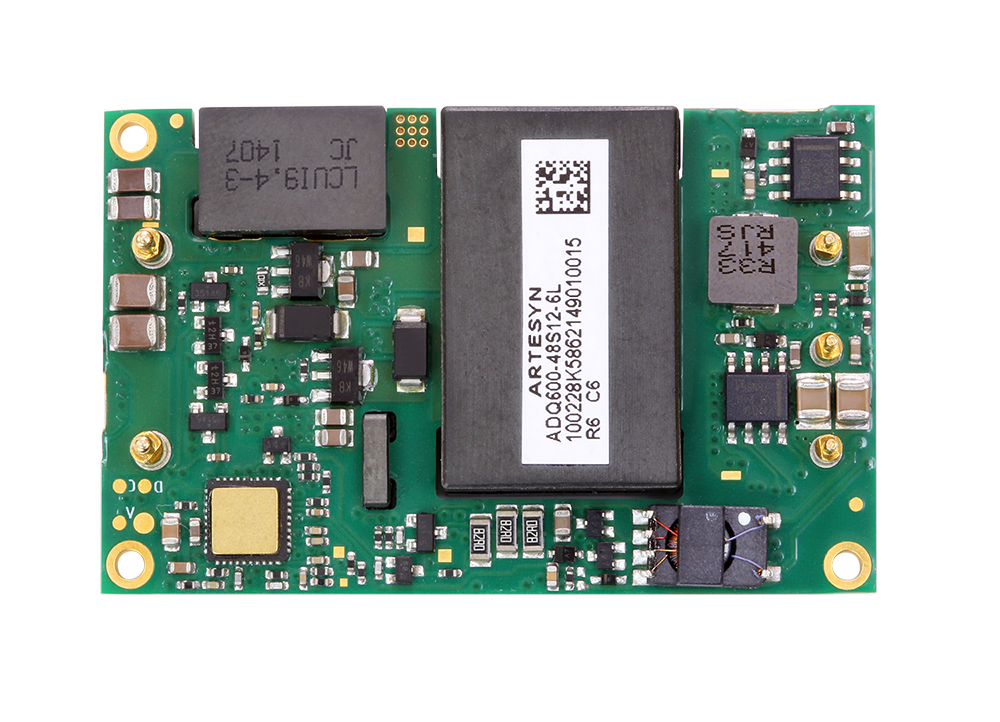

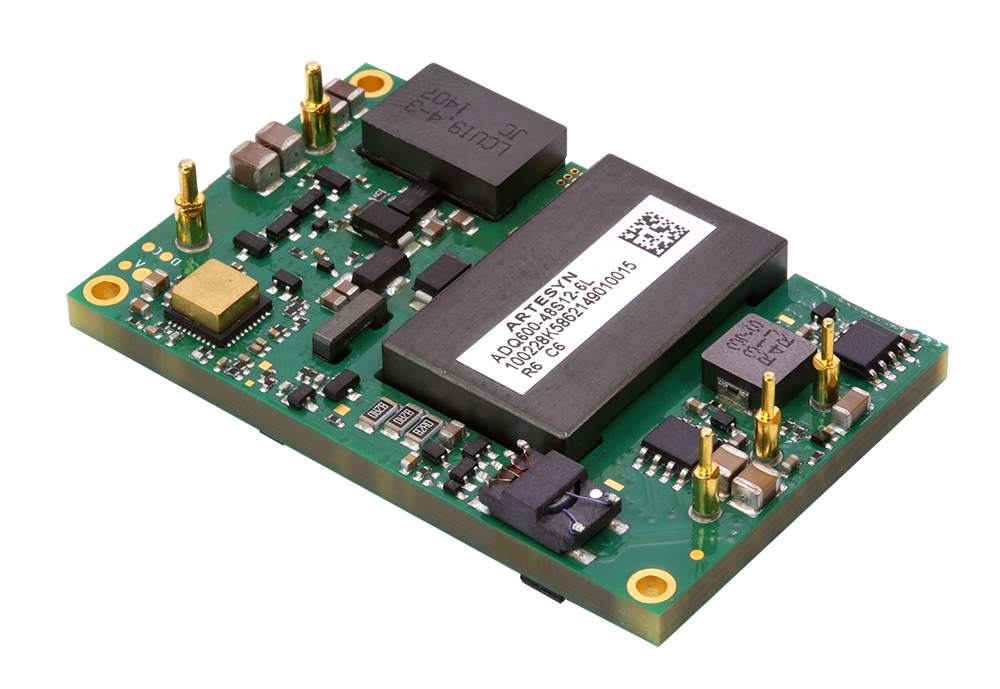

ADQ600 Series
Active
12 V 600 W 1/4 Brick
The ADQ600 series quarter-brick isolated DC-DC converter produces a single fully regulated 12 V output. Rated at 600 W, the converter can deliver up to 50 A output current and has no minimum load requirement. It has an input voltage range of 40 to 60 V and is primarily designed for use with standard 48 V supplies in computing and server applications, as well as regulated 48 V supplies in telecommunications equipment. ADQ600 series converters have an ultra high efficiency of typically 95.6% at full load and can operate over an ambient temperature range of -40 to 85˚C, making them an ideal choice for the isolated converter in a distributed power architecture supplying power to non-isolated converters.
特徴
- Delivering up to 50A output
- Pin length option: 3.8mm
- RoHS 6 compliant
- Ultrahigh efficiency 95.6% typ. at full load
- Wide input range: 40V ~ 60V
- Input voltage 40Vdc to 60Vdc
- Output 12V version 12V at 50A
- Output 10V version 10V at 63A
- Output Power 600W
- Isolation 1500Vdc
- Mechanical 1/4 brick
メリット
- Basic isolation
- Excellent thermal performance
- High power density
- Industry standard quarterbrick pinout outline
- Input under voltage lockout
- Low output noise
- No minimum load requirement
- Openframe and baseplated
- Output over current protection
- Output over voltage protection
- Over temperature protection
- Remote control function (negative logic)
- Remote enable negative enable
- Insulation Basic insulation
- Mechanical Open frame
- Mechanical Baseplate
仕様
| 出力電力 (W): | 600 |
|---|---|
| 長さ（インチ）: | 2.3 |
| 幅（インチ）: | 1.45 |
| 高さ（インチ）: | 0.4 |
| マウントタイプ: | BMP; Through Hole |
| 最小出力電流 (A): | 0 |
| 最大出力電流 (A): | 63 |
| 出力電圧範囲 (V): | 10V to 12V |
