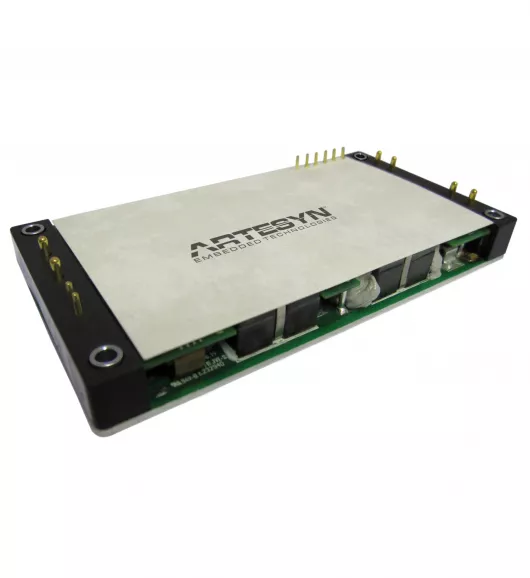

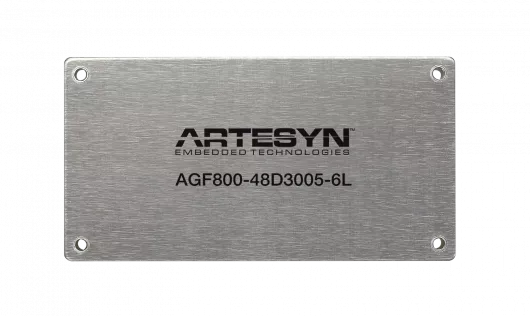

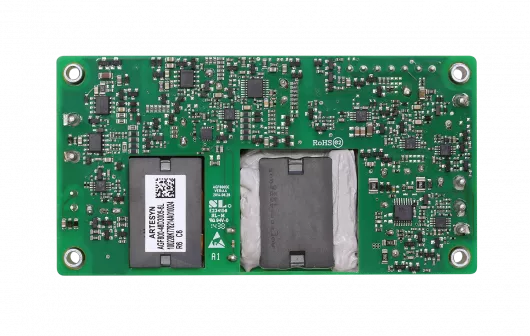

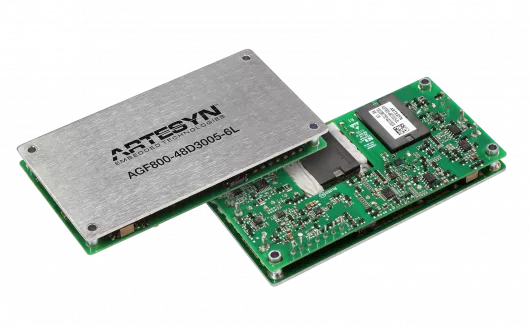

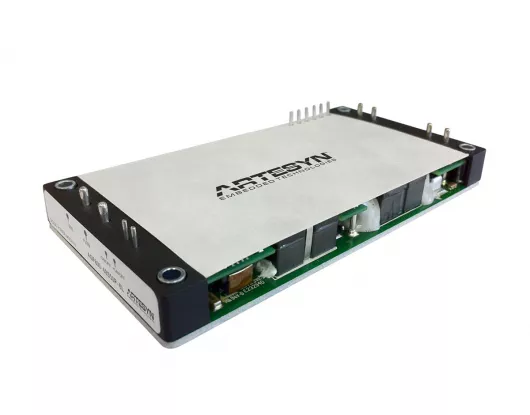

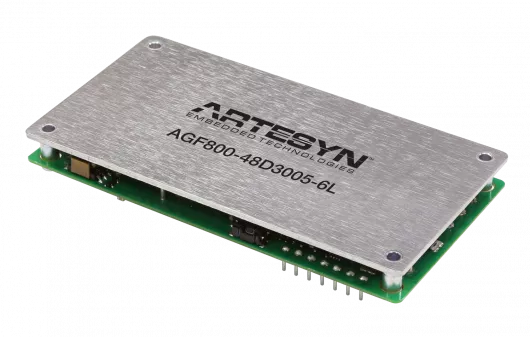

AGF800 Series
Active
800 W Isolated DC-DC Converters For RF Applications
Experience unmatched power and efficiency with our AGF800 series of isolated DC-DC converters. Designed for RF applications such as high-power wireless base stations, the converters provide a single or fully regulated low-noise output with a vast output trim range for enhanced flexibility. These 800 W DC-DC converters also offer dual output capability–with an ultra-high frequency of 93.5% at half load–that eliminates the need for a second power module, allowing you to save on costs and board space. The converters use fixed-frequency switching to help minimize external EMI filtering requirements. Standard features include differential (for single-output models) remote sense, remote ‘power good’ indication, and remote enable, as well as comprehensive protection against input undervoltage, overtemperature, and output overcurrent or overvoltage conditions.
特徴
- Delivering up to 28.6 A output current
- RoHS 6 compliant
- Ultrahigh efficiency 93.0% typ. at full load
- Wide input range: 36 V to 75 V
- Input Voltage 36 VDC to 75 VDC
- Output Voltage 28 V
- Output Current 28.6 A
- Output voltage 48 V
- Output current 16.7 A
メリット
- Excellent thermal performance
- Fixed frequency operation
- No minimum load requirement
- Isolation Basic Insulation
仕様
出力電力 (W): | 800 |
---|---|
長さ(インチ): | 4.598 |
幅(インチ): | 2.402 |
高さ(インチ): | 0.5 |
マウントタイプ: | BMP; Through Hole |
最小出力電流 (A): | 0 |
最大出力電流 (A): | 28.6 |
出力電圧範囲 (V): | 14V to 53V |
