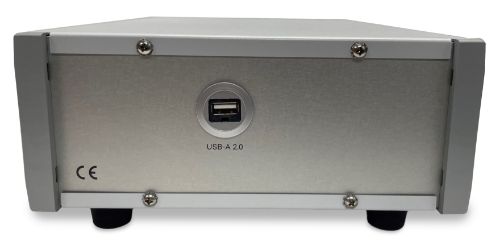

2800 Series RF Power Standards - Thermoelectric
9 kHz to 50 GHz RF Power Transfer Standards
Advanced Energy's 2800 Series RF Power Transfer Standards are tools you can rely on every day. Built upon proven technologies, the 2800 series offers new features and advantages in a RF Power Transfer Standard. Utilizing TEGAM's well established transfer standard techniques applied to a referenced thermoelectric sensor, this series performs faster while retaining excellent performance and accuracy.
特徴
- 9 kHz to 18 GHz and 10 MHz to 50 GHz frequency ranges
- Fast reading settling time of < 2s
- 0.01 to 10mW typical usable range (-20 to +10 dBm), expandable with attenuators
- Basic accuracies of 0.8% to 4.2% (frequency dependent)
- 3 year warranty
- Rack mount option available
- Assembled in the USA
メリット
- Frequency range covers the calibration range of most Type-N. 3.5mm, 2.92mm, and 2.4mm sensors
- Increase your workload with faster power measurements
- Calibrate sensors in multiple power ranges, utilizing optional attenuators
- Years of worry-free performance with industry leading warranty
仕様
| Basic Accuracy: | +/-(0.8 to 4.2)% from 9 kHz to 50 GHz |
|---|---|
| Calibration Factor Accuracy (typical): | +/-(0.8 to 4.2)% from 9 kHz to 50 GHz |
| Connector Type: | N- female, 2.4mm- female |
| Frequency Range: | 9 kHz to 50 GHz |
| Power Range: | 0.01 to 10 mW (-20 to +10 dBm) |
| Required Power Meter: | USB Virtual |
| RF Impedance (nominal): | 50 Ohms |
| Sensor Type: | Thermoelectric |
Accessories Stock Check
Transport case for 1830A, F113X, 2505A, 2510A, M1130
and M1135
技術文書
サービス
Repair
Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.
