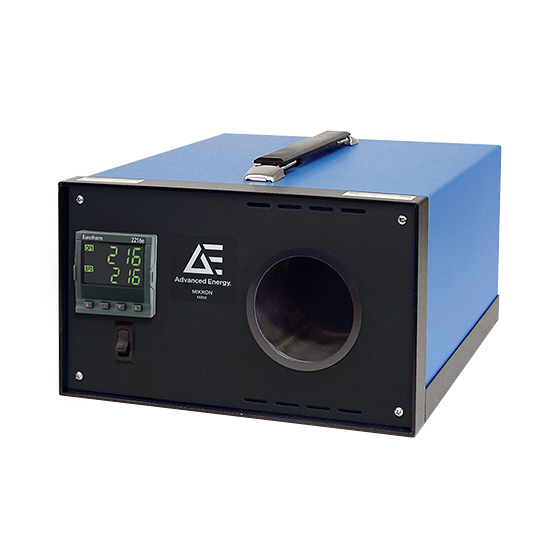

Mikron M310-HT Blackbodies
Active
Portable, Compact Low Temperature Blackbody Calibration Source with a Large Surface Area, Ambient +5 to 450°C
The Mikron® Calibration Source M310-HT is a portable blackbody calibration source utilizing a digital indicating temperature controller that may be set to any temperature between ambient +5 to 450°C (+9 to 842°F). A precision RTD temperature sensor is embedded in the blackbody emitter, providing high accuracy and repeatability. The temperature controller uses industry-standard PID algorithms to control the emitter temperature to within 0.3°C of the set points. The blackbody emitter mechanism uses a resistive heating device that provides long life, short stabilization times, and stable temperature control.
特徴
- High effective emissivity 1.00 at 8 to 14 µm
- Large aperture (3” diameter)
- Excellent stability ±0.3°C per 8-hour period
- Furnished with a certificate of calibration traceable to NIST
- RS232 serial communication included
メリット
- Ensure fast heat-up times and high temperature stability
- Easily change temperature set points by pressing the up or down arrow buttons on the controller
- Experience a long life, short stabilization times, and stable temperature control
- Achieve high accuracy and repeatability
- Guarantee the quality of your calibration source
仕様
| 測定の不確かさ (°C): | 0.25% of reading ±1°C |
|---|---|
| インターフェース/出力（mA）: | RS232 |
| 相対湿度: | 90 |
| CEラベル: | CE-Label |
| デバイス出力温度範囲 (°C): | 5 to 450 °C |
| 安定性: | 0.3°C per 8-hour period |
| 加熱エミッター形状: | 76 mm |
