ARTESYN™

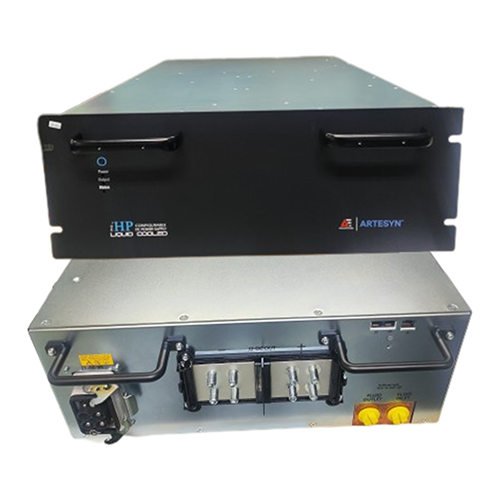

iHP, Liquid Cooled Series
Active
Precision High Power System
Designed for a wide range of industrial, lighting/horticulture, and semiconductor applications, Advanced Energy’s iHP Liquid Cooled configurable precision power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 20 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents.
특징
- 100% digital control
- Fast current slew rate up to 200 Hz
- High line 432 to 528 VAC 3-phase
- Analog Interface either 0-5 V or 0-10 V for both current and voltage
- Outputs parallel up to 1600 A
- Outputs series up to 1000 V
- Semi F47 compliance only when operated at 480 VAC
- Standard 19" rack
혜택
- 5 years manufacturer’s warranty
- Multi output intelligent and modular high power system
- Outputs program as voltage or current source
- Flexible digital control interfaces
- Field upgradeable firmware
- Programmable slew rate
- Active power factor correction
- User defined command profiles
- Very low total harmonic distortion (THD)
사양
| 출력 전력(W): | 20000 |
|---|---|
| 길이(인치): | 29.8 |
| 너비(인치): | 17.6 |
| 높이(인치): | 7 |
| 마운팅 유형: | 19” Rack Mount |
| 최소 출력 전류(A): | 0 |
| 최대 출력 전류(A): | 200 |
| 출력 전압 범위(V): | 0.6 to 360 V |
ConfigPro 소개하기
Advanced Energy의
혁신적인 온라인 Power Configurator
3백만 개 이상의 구성 가능한 전원 공급 장치 조합을 갖춘 이 전원 솔루션 알고리즘은 비용을 최적화하고 MP, IMP, IVS 및 MICROMP(UMP) 구성 가능한 전원 공급 장치 제품군에 이상적인 솔루션을 안내합니다.
시작하기
기술 문서
기술 동영상
iHP Intelligent High Power System - introduction
10월 4, 2017
iHP intro video YouTube description
Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source.
It can be configured for multiple outputs using a wide variety of plug-in modules that address a large range of voltages and currents.
The 24 kilowatt case supports up to eight outputs in 3 kilowatt increments while the 12 kilowatt case supports up to 4 outputs using the same modules.
The iHP system has been designed to meet the needs of a wide variety of medical and industrial applications.
Safety approvals secured by Artesyn eliminate the need for an isolation transformer in medical equipment and the multi-output modular structure provides all system power in a single unit.
The iHP power system also has industrial safety approvals and meets the SEMI F47 voltage sag tolerance standard for semiconductor processing equipment.
A provision for EtherCAT communication is also planned.
In horticultural LED lighting, bulk high voltage current sources eliminate the need for individual LED array drivers and reduce installation and operating costs.
For chemical processing and water treatment applications, the compact size and multi-rack paralleling of the iHP series can accommodate large installations up into the Megawatt range.
The unit’s software interface can be programmed to run sophisticated process flows.
Standard modules provide a wide range of bulk power as input to laser drivers.
For laboratory equipment, precision modules in development provide low noise and accurate control of voltage and current source with built-in wireless communication to a remote control panel.
For electroplating and etching applications, Artesyn is developing modules to provide enhanced programmable rise and fall times coupled with a high-level software interface that can be tailored to exact process requirements.
The iHP power system offers developers either an analog or digital interface to their system supporting standard communications protocols, while a software graphical user interface allows for easy configuration.
