NeoPower™ NP05 Series

Active

AC-DC PSU | Configurable & Efficient

재고 확인 영업팀에 문의 데이터 시트

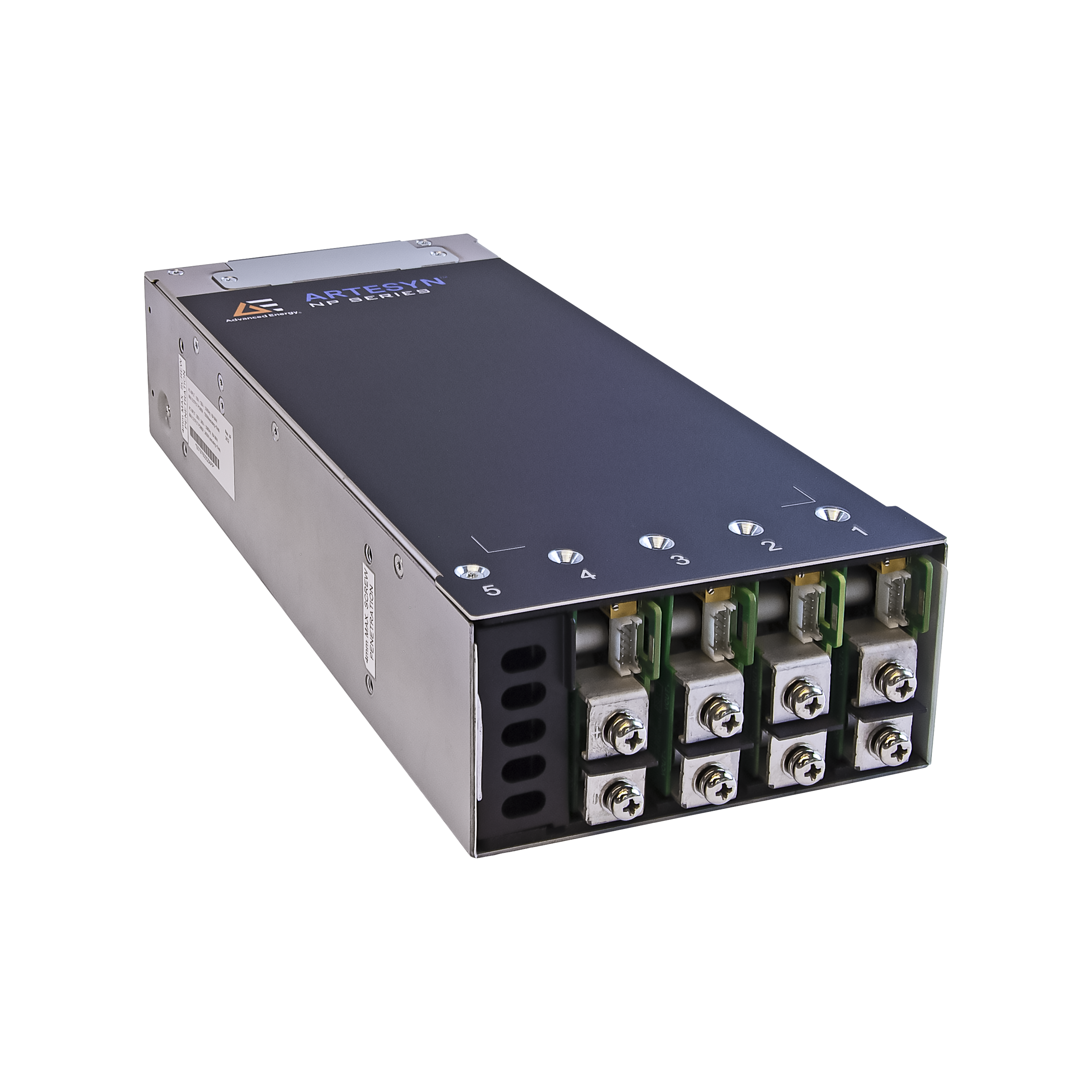

The NeoPower NP05 AC-DC configurable power supply introduces best-in-class power density of 17 W/in³. For up to 2400 W output power, NP05 is easy to configure (series or parallel) and has five output power slots. NP05 can drop into an OEM’s enclosure to make a custom power supply or simply be used for its high flexibility for any embedded or power conversion challenge requiring multiple outputs.

특징

High power density
Multiple digital communication protocol options via adapters: MODBUS RTU, MODBUS TCP, CANBUS, and PMBUS
Programmable as a voltage or a current source.
Market-leading low ripple noise
User-configurable
Medical IEC/EN 60601-1 3.2 Compliant and BF Rated
Semi F47
Simplified buss bar design

혜택

More power in 2.5" configurable compared to the competition
Operate in constant voltage or constant current mode
Flexible communications
Fast deployment
Higher power signal and accuracy
Easy-to-configure modules
Certified industrial and medical applications
Configurable buss bars for any series/parallel combination
Confidence in reliability from the #1 configurable power supply manufacturer

사양

출력 전력(W):	2400
길이(인치):	11.2
너비(인치):	8
높이(인치):	2.5
마운팅 유형:	Various
최소 출력 전류(A):	0
최대 출력 전류(A):	280
출력 전압 범위(V):	300
최소 출력 전력(W):	0
최대 출력 전력(W):	2400
Minimum Input Voltage (V):	90
최대 입력 전압(V):	264
보증(년):	5

모든 사양 사양 축소

재고 확인

* 데모 이용 가능, 문의하기

모델 번호 샘플 구매	효율성(%)	최소. 전압(V)	최대. 전압(V)	전류(A)	공칭 전압(V)	출력 개수	샘플	구매
83-011-0005L* Active, 문의하기 NeoPower 1 slot, 1 output 5V nominal module Features low differential and common mode ripple 문의하기 구매		1	6	56	5	1	문의하기	구매
83-011-0005M* 활성, 재고 있음 NeoPower 1 slot, 1 output 5V nominal module Request 구매		1	6	56	5	1	Request	구매
83-011-0012L* Active, 문의하기 NeoPower 1 slot, 12V output V nominal module Features low differential and common mode ripple 문의하기 구매		2.4	14.4	41.6	12	1	문의하기	구매
83-011-0012M* 활성, 재고 있음 NeoPower 1 slot, 1 output 12V nominal module Request 구매		2.4	14.4	41.6	12	1	Request	구매
83-011-0015L* Active, 문의하기 NeoPower 1 slot, 1 output 15V nominal module Features low differential and common mode ripple 문의하기 구매		3	18	33.3	15	1	문의하기	구매
83-011-0015M* 활성, 재고 있음 NeoPower 1 slot, 1 output 15V nominal module Request 구매		3	18	33.3	15	1	Request	구매
83-011-0024L* Active, 문의하기 NeoPower 1 slot, 1 output 24V nominal module Features low differential and common mode ripple 문의하기 구매		4.8	28.8	20.8	24	1	문의하기	구매
83-011-0024M* 활성, 재고 있음 NeoPower 1 slot, 1 output 24V nominal module Request 구매		4.8	28.8	20.8	24	1	Request	구매
83-011-0048L* Active, 문의하기 NeoPower 1 slot, 1 output 48V nominal module Features low differential and common mode ripple 문의하기 구매		9.6	57.6	10.4	48	1	문의하기	구매
83-011-0048M* 활성, 재고 있음 NeoPower 1 slot, 1 output 48V nominal module Request 구매		9.6	57.6	10.4	48	1	Request	구매
83-105-0001W* Active, 문의하기 NeoPower 5-slot Case Up to 5 isolated outputs 1VDC - 300VDC output 문의하기 구매	90						문의하기	구매

액세서리

PowerPro CANBUS/PMBUS Dongle

Add CANBUS and PMBUS capability

View Page

기술 문서

Product Information Documents Updated

Insights & Studies

Miscellaneous

소프트웨어

NeoPower Configurable Software

View Page

기술 동영상

New NeoPower™ NP05 Configurable AC-DC Power Supplies

2월 6, 2025

New NeoPower(TM) NP05 Configurable AC-DC Power Supplies Advanced Energy has expanded our NeoPower™ family of ultra-high-density configurable AC-DC power supplies with the 5-slot NP05, which offers 2.4 kW in an industry-standard 2.5-inch form factor. We also offer two new low-noise modules and a PowerPro(TM) Ethernet adapter. These innovative options save space and reduce electrical noise, while the adapter simplifies Ethernet connectivity. This makes these solutions ideal for advanced industrial, medical, and test applications.
