SL Power™

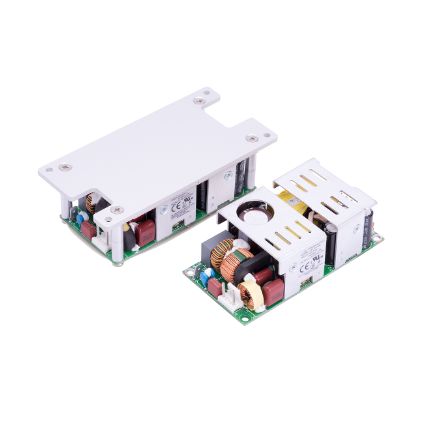

LB115S Series
Active
115 W Single Output LED Grade
Advanced Energy’s SL Power LB115S is designed to meet global lighting requirements and has a built-in EMI filter to meet EN55015. All models are CE marked to low voltage directive and approved to safety standard EN60950 2nd edition and UL8750. The versatility of the thermal design of the LB240 offers significant advantages over standard convection or force air cooling alone. The conduction cooled surface provides additional power handling capability while taking advantage of system enclosures as a means to extract heat from the power supply.
특징
- Small size of 2” x 4” x 1.3”
- 75 W convection cooled/115 W with 200 LFM
- Universal Input 90 to 264 VAC
- -40°C startup
- -20°C to 70°C Operating Temperature Range
혜택
- Meets EN55015 Conducted EMI
- Meets IEC61000-3-2 Class C for less than 1 Watt to full power
- Approved to EN/IEC/UL62368-1
- Level V Efficiency Compliant
- 3 Year Warranty
- Optional LED indicator for power-on
사양
| 출력 전력(W): | 115 |
|---|---|
| 길이(인치): | 4 |
| 너비(인치): | 2 |
| 높이(인치): | 1.3 |
| 마운팅 유형: | Embedded PSU |
| 최소 출력 전류(A): | 1.34 |
| 최대 출력 전류(A): | 6.25 |
| 출력 전압 범위(V): | 12V to 56V |
