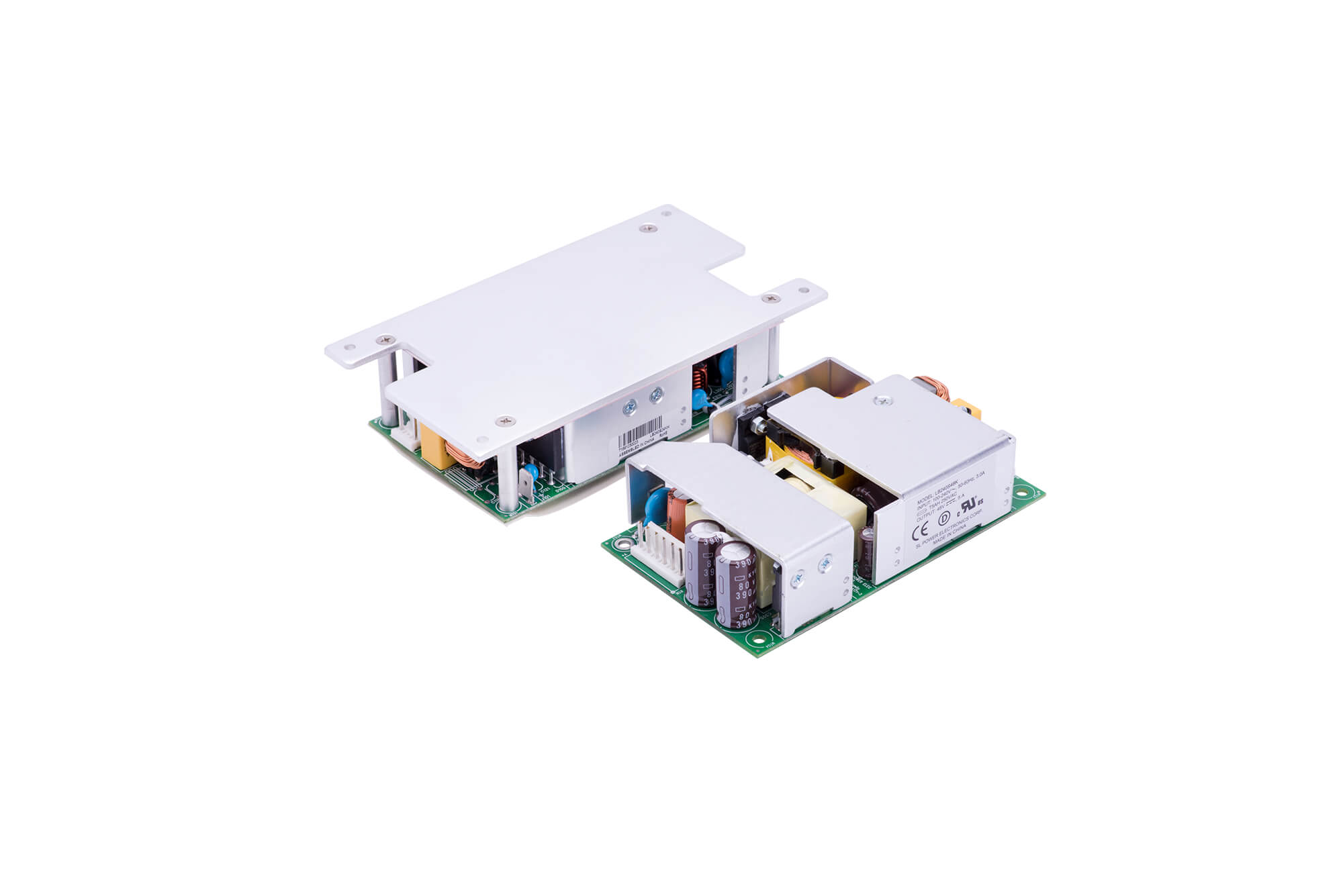

LB240S Series

Active

240 W Single Output LED Supply

Advanced Energy’s SL Power LB240 family is the latest offering in high density single output open-frame AC/DC power supplies. Approved to EN/CSA/IEC/UL 62368-1, the LB240 family is ideal for industrial and dimming applications where power density and cost are critical. The LB240 operates at universal input rang of 90 to 264 VAC and wide temperature range -10ºC to +70ºC, devering full rated output power up to +50ºC.

특징 사양 재고 확인 기술 문서 Videos Support

특징

3” x 5” x 1.3” Package
240 W
50°C Ambient Operation with 300 LFM
130 W @ 70˚C (Conduction Cooled)
190 W @ 60˚C (200 LFM)
160 W @ 70˚C (200 LFM)
Universal Input 90 to 264 VAC

혜택

EN55015 Class B Conducted EMI
Approved to EN/IEC/UL62368-1
Meets IEC61000-3-2 Class C for 0% to 100% LED Dimming Applications (1 W input power to full load)
EN60950 2nd Edition

사양

출력 전력(W):	240
길이(인치):	5
너비(인치):	3
높이(인치):	1.3
마운팅 유형:	Embedded PSU
최소 출력 전류(A):	4.29
최대 출력 전류(A):	10
출력 전압 범위(V):	24V to 56V
최소 출력 전력(W):	240
최대 출력 전력(W):	240
Minimum Input Voltage (V):	90
최대 입력 전압(V):	264
보증(년):	3

모든 사양 사양 축소

재고 확인

모델 번호 샘플 구매	최소. 전압(V)	최대. 전압(V)	전류(A)	공칭 전압(V)	출력 개수	샘플	구매
LB240S24K 활성, 재고 있음 24V @ 10A, Class I 요청 구매	24	24	10	24	1	요청	구매
LB240S48K 활성, 재고 있음 48V @ 5A, Class I 요청 구매	48	48	5	48	1	요청	구매
LB240S56K 활성, 재고 있음 56V @ 4.29A, Class I 요청 구매	56	56	4.29	56	1	요청	구매

기술 문서

제목	유형
LB240S 3D File (4 MB)	3D 모델
LB240S Application Note (522 KB)	애플리케이션 노트
LB240 Datasheet (662 KB)	데이터 시트
LB240 Demko Certificate (327 KB)	Demko Certificate
CB Test Certificate (211 KB)	안전 인증서
LB240 CB Certificate (125 KB)	안전 인증서
LB240 IEC62368-1 CB Certificate (62 KB)	안전 인증서
LB240 UL Certificate (84 KB)	안전 인증서

기술 동영상

LB240 Series

2월 12, 2024

Advanced Energy’s SL Power LB240 series is a highly efficient single output power supply that is ideal for high intensity entertainment applications, such as stage lighting and audio/video control systems, due to its ability to operate efficiently in any cooling condition and/or tight space. Meeting global requirements, the LB240 addresses the designer’s need for flexibility and high efficiency, delivering 240 watts of convention-cooled power in a compact, 3” x 5”x 1.3” package.
