ARTESYN™

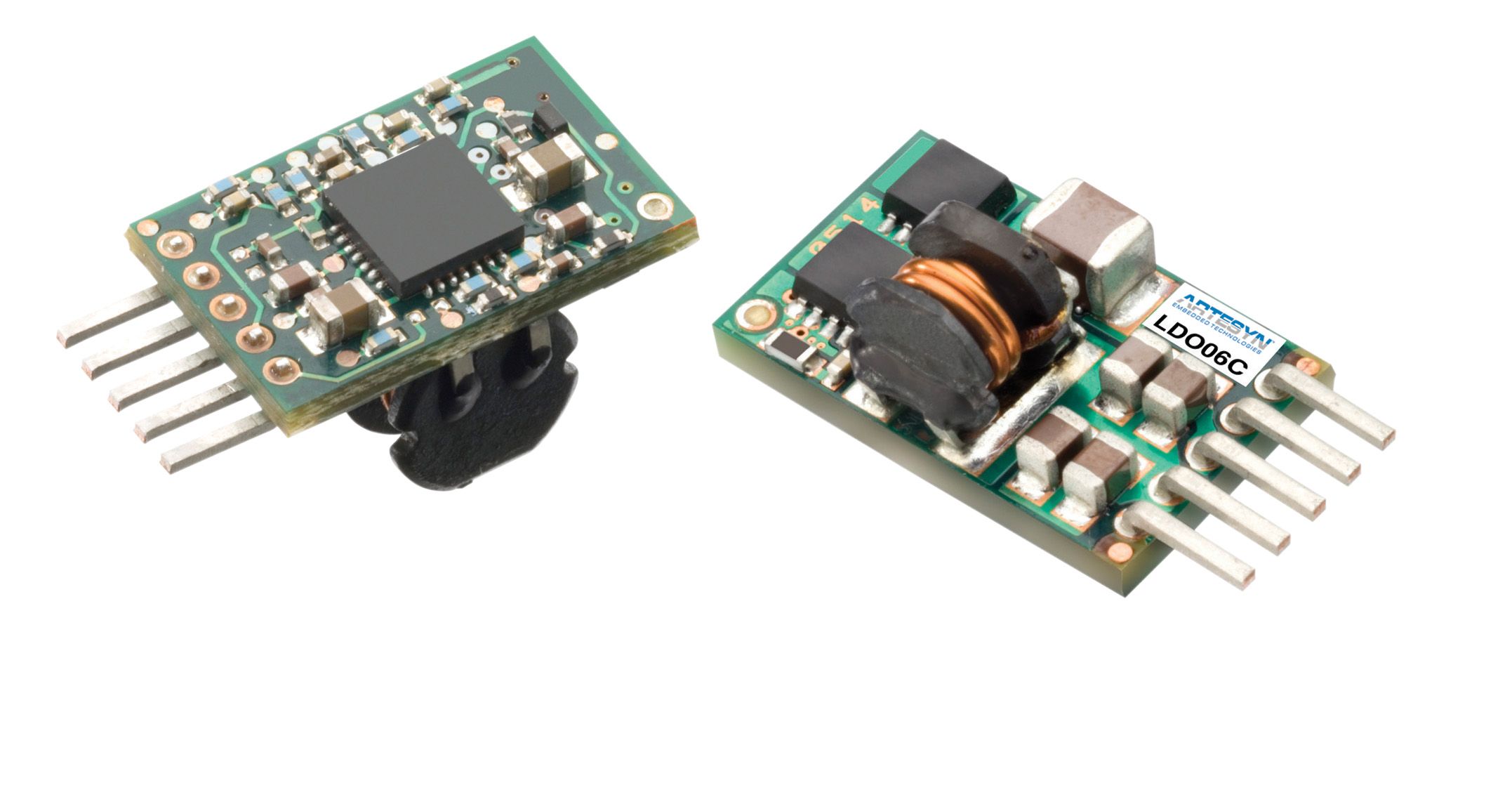

LDO06C Series
Active
30 W (6 A) Non-Isolated DC-DC Converters
The LDO06C series non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It has a wide 3 to 13.8 VDC input range and offers a 0.59 to 5.1 VDC adjustable output that accommodates a wide variety of silicon power needs. Capable of delivering up to 6 A, the converter has a typical efficiency of 92%. A remote enable facility is provided as standard and remote ‘power good’ indication is available as an option. The LDO06C series of 30 W DC-DC converters offer a choice of through-hole horizontal, through-hole vertical, and surface mounting.
특징
- High Efficiency up to 92%
- Wide input voltage range: 3 to 13.8Vdc
- Wide output voltage trim / adjustability: 0.59 to 5.1Vdc
- Input Range 3 to 13.8 Vdc
- Wide Output Trim 0.59 to 5.1 Vdc
혜택
- Current sink capability for termination applications
- Excellent transient response
- No added input or output capacitors needed for ripple current capability or stability
- Through Hole or Surface Mount (suffix "S") termination
- Vertical (suffix "V") or Horizontal (uffix "H") Mounting
사양
| 출력 전력(W): | 30 |
|---|---|
| 길이(인치): | 0.65 |
| 너비(인치): | 0.41 |
| 높이(인치): | 0.443 |
| 마운팅 유형: | BMP; SMT &Through Hole |
| 최소 출력 전류(A): | 6 |
| 최대 출력 전류(A): | 6 |
| 출력 전압 범위(V): | 0.59V to 5.1V |
