ARTESYN™
AVD50B Series
Active
50 W 1/16th Brick

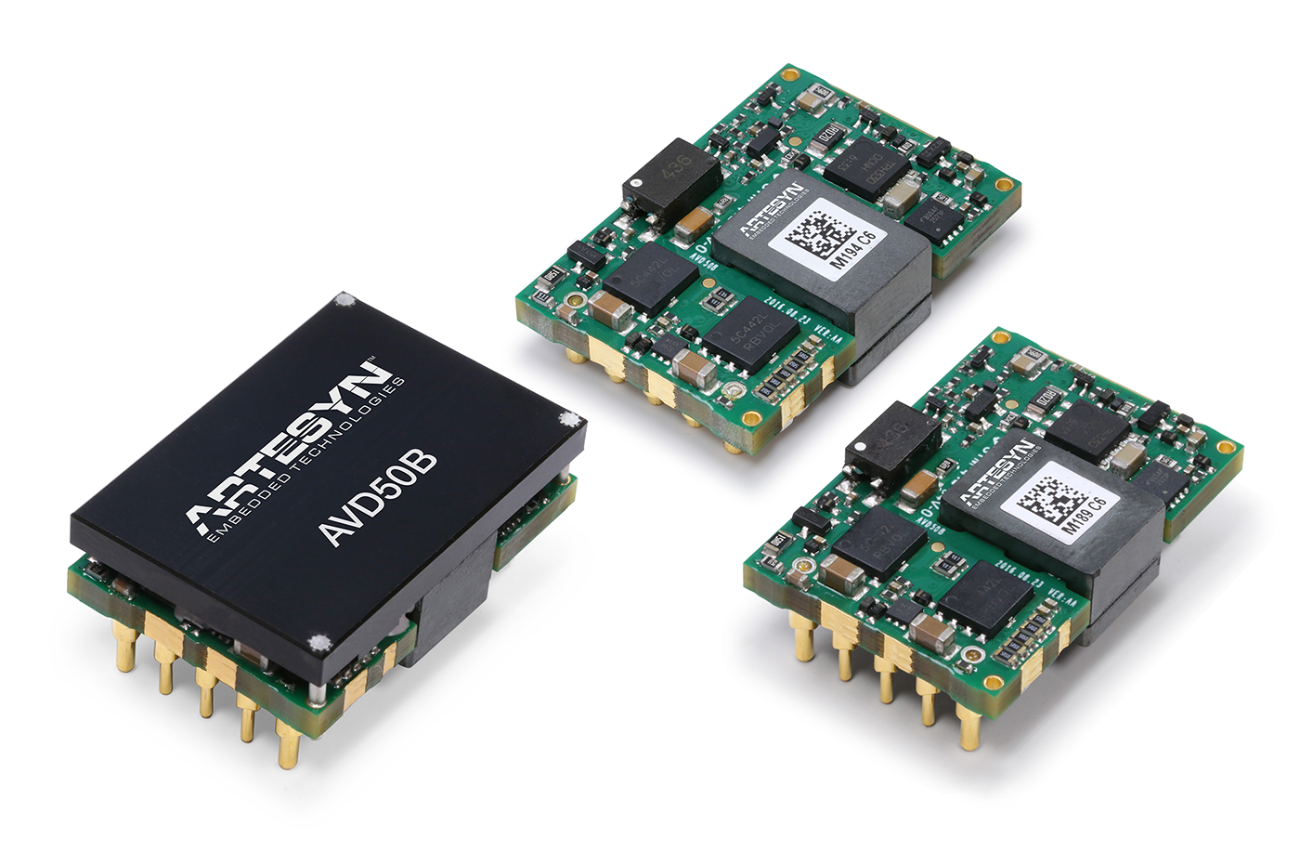

The AVD50B series sixteenth-brick isolated DC-DC converter provides a fully regulated single output at 3.3 V, 5 V or 12 V that is capable of delivering up to 50 W. It has a wide 2:1 input range of 36 to 75 VDC and is designed primarily for use with standard 48 V telecommunications equipment supplies. Rated at 50 W, the converter employs an open-frame construction, offers up to 93% efficiency and accommodates an ambient operating temperature range of -40 to 85˚C. A baseplate option is available for enhanced thermal performance. SMT bullet pin with reel tape package is available for reflow processing. The converter uses fixed frequency switching to minimize the need for external EMI filtering.
특징
- Delivers up to 50w rated power
- RoHS 6 compliant
- Ultrahigh efficiency 93% typ. at full load
- Wide input range: 36V ~ 75V
- Input Range 36V-75VDC
- output voltage 3.3VDC-12VDC
- output power 50W
혜택
- Basic isolation
- Excellent thermal performance
- High power density
- Low output noise
- No minimum load requirement
- Reflow soldering enabled
- isolation basic insulation
사양
| 출력 전력(W): | 50 |
|---|---|
| 길이(인치): | 1.3 |
| 너비(인치): | 0.9 |
| 높이(인치): | 0.36 |
| 마운팅 유형: | BMP; SMT &Through Hole |
| 최소 출력 전류(A): | 4.17 |
| 최대 출력 전류(A): | 15 |
| 출력 전압 범위(V): | 2.64V to 13.2V |
